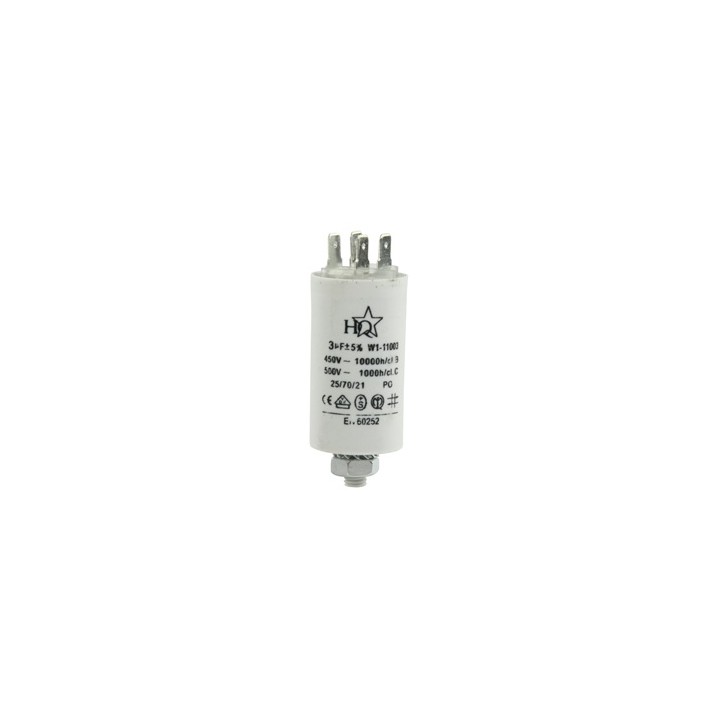

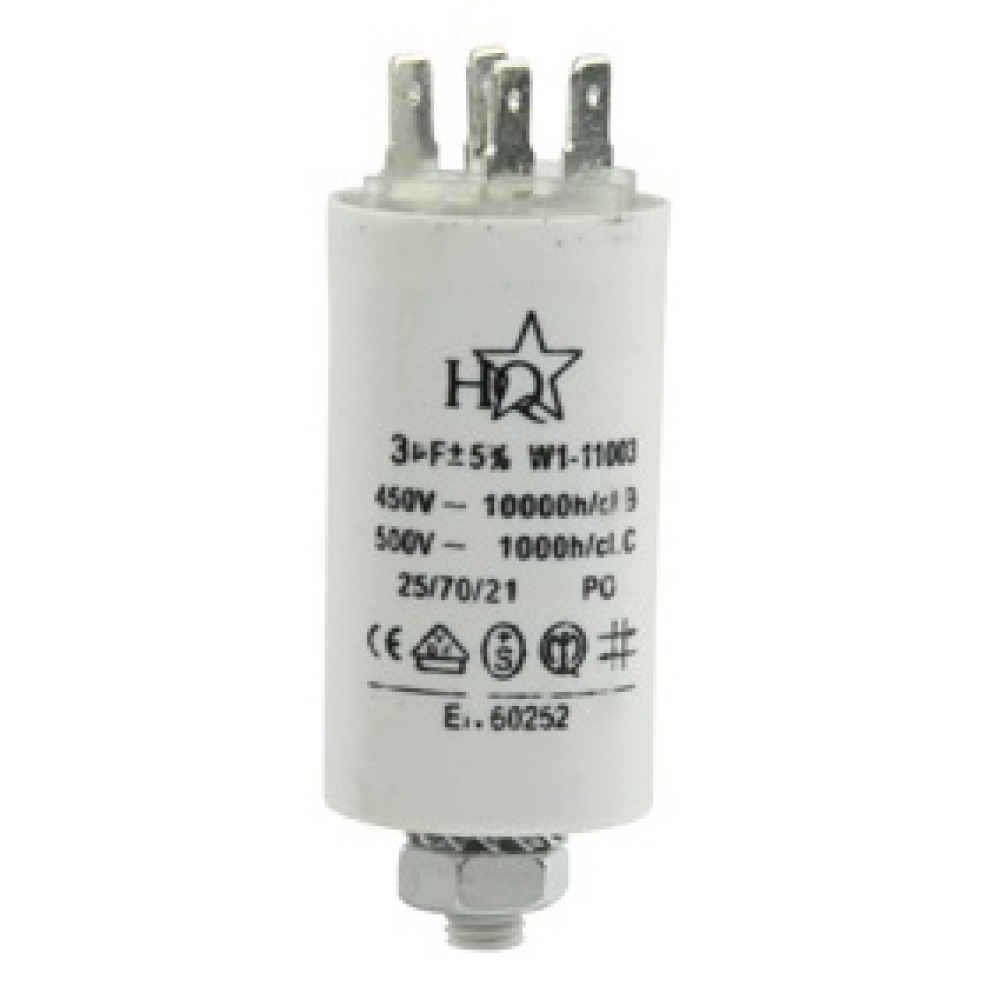

Condensateur 450v 3µf double cosses permanent 3 µf 3mf 3 uf micro farad faston 6.3mm vis m8

Condensateurs ronds dans un boîtier ignifuge. Isolés et hautement étanches à l'eau.
Facile à monter grâce aux connecteurs mâles et la vis M8. Convient pour lampes 50/60Hz et moteurs.

Condensateur
Capacité: 3.0 uF
Tension: 450 V
Dimensions: O 28x55mm

caractéristiques techniques
Tolérance sur la capacité: + - 5%
Gamme de fréquence de travail: 50 - 60 Hz
Tension d'essai individuel: entre les bornes: 2,15 Vn pendant 2 secondes.
: Entre les bornes et le boîtier: 3 KV pendant 2 secondes.
Protection: Boîtier et couvercle en matière plastique auto extinguible

3.0 uF 450 V W1-11003 R 28 x 55 mm

Capacité 3 µF
Tension 450 V
Type Moteur
Terre Oui
Connexion AMP femelles

Peut remplacer tout condensateur permanent de 3 µF dont la tension max est comprise entre 400V et 500V.
COMAR Condensatori type MKA3-450  - 3µF - 450V - Sortie cosses

Modèles d'appareils concernés :
1LF-065IT - 906013012 (FAGOR),
1LFU-019S - 906112049 (FAGOR),
1LFU-019SX - 906112325 (FAGOR),
LDD-960IT-1 - 906580060 (FAGOR),
LDD-970IT-1 - 906580042 (FAGOR),
LDD-970ITX-1 - 906580051 (FAGOR),
LF-013E - 906012497 (FAGOR),
LF-013IX - 906012424 (FAGOR),
LF-015SX - 906012317 (FAGOR),
LF-020S - 906012380 (FAGOR),
LF-020SX - 906012399 (FAGOR),
LF-073IT - 906012576 (FAGOR),
LF-25I - 906111692 (FAGOR),
LF-25IN - 906111709 (FAGOR),
LF-25IX - 906111718 (FAGOR),
LF-65IT - 906012567 (FAGOR),
LF-65IT1X - 906012549 (FAGOR),
LF-65ITX - 906012558 (FAGOR),
LFF-011 - 906111610 (FAGOR),
LFF-011X - 906111781 (FAGOR),
LFF-012 - 906111629 (FAGOR),
LFF-013 - 906111638 (FAGOR),
LFF-013I - 906111558 (FAGOR),
LFF-013IN - 906111567 (FAGOR),
LFF-013IX - 906111576 (FAGOR),
LFF-013X - 906111647 (FAGOR),
LFF-014 - 906111512 (FAGOR),
LFF-014X - 906111790 (FAGOR),
LFF-017 - 906111521 (FAGOR),
LFF-021LX - 906111601 (FAGOR),
LFF-022 - 906112067 (FAGOR),
LFF-023 - 906112094 (FAGOR),
LFF-023X - 906112101 (FAGOR),
LFF-024 - 906112110 (FAGOR),
LFF-024X - 906112129 (FAGOR),
LFF-032 - 906112227 (FAGOR),
LFF-032X - 906112245 (FAGOR),
LFF-033 - 906112236 (FAGOR),
LFF-033X - 906112254 (FAGOR),
LFF-13I - 906111585 (FAGOR),
LFF-13IN - 906111530 (FAGOR),
LFI-022B - 906112076 (FAGOR),
LFI-022N - 906112085 (FAGOR),
LFI-023B - 906112147 (FAGOR),
LFI-023N - 906112156 (FAGOR),
LFI-023X - 906112165 (FAGOR),
LFI-031B - 906112263 (FAGOR),
LFI-031N - 906112272 (FAGOR),
LFI-031X - 906112281 (FAGOR),
LFI-032B - 906112290 (FAGOR),
LFI-032N - 906112307 (FAGOR),
LFI-032X - 906112316 (FAGOR),
LFI-14B - 906112192 (FAGOR),
LFI-14LX - 906112174 (FAGOR),
LFI-14N - 906112183 (FAGOR),
LFU-013S - 906111905 (FAGOR),
LFU-013SX - 906111914 (FAGOR),
LFU-017IX - 906111987 (FAGOR),
LFU-017S - 906111923 (FAGOR),
LFU-017SX - 906111932 (FAGOR),
LFU-020S - 906111941 (FAGOR),
LFU-020SX - 906111950 (FAGOR),
LFU-073IT - 906112012 (FAGOR),
LFU-15I - 906111969 (FAGOR),
LFU-15IN - 906111978 (FAGOR),
LFU-65IT - 906112021 (FAGOR),
LFU-65IT1X - 906112003 (FAGOR),
LJF-011X - 906112218 (FAGOR),
LJF-012 - 906111772 (FAGOR),
LJF-022 - 906112058 (FAGOR),
LJF-023 - 906112138 (FAGOR),
LJF-031 - 906112209 (FAGOR),
LVD-43 - 906111656 (FAGOR),
LVD-54 - 906112030 (FAGOR),
VFU-15I - 906470964 (FAGOR),
VFU-15IN - 906470973 (FAGOR),
VFU-15IX - 906470982 (FAGOR).
