Mini audifono auricular audio sins cable oreja + receptor sy 20 audio discreto espionaje

Dimensions: 3x5x7mm. Weight: 52gr

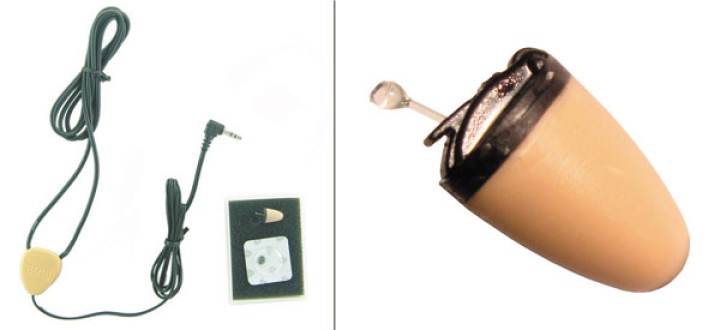

Mini wireless earpiece is a micro-mini wireless inductive receiver which transforms audio signal through electromagnetic induction. These products make the covert communication possible when it is inconvenient to expose earpieces. earpiece is widely used in many departments .


Features and Highlights
Small, light, easy to conceal;
Comfortable for wearing with an optimum anatomic design.

Work principle
Mini wireless earpiece is a one-way reception equipment driven by electromagnetic induction and is used in conjunction with drive equipments, such as radio and mobile phone.


Structure
Mini wireless earpiece consists of specialized chip, shell, faceplate, battery door, handle etc.
1. Battery door
Open battery door by fingertip, install the battery perfectly and push the battery door to battery box.
2. Handle
Clarity and high strength string help you to take out the earpiece from ear canal easily.

Technical specification
- Mini wireless earpiece (205 earpiece) receives signal by inductive coil,
across electromagnetic fields
- Receiving distance: 50 70 cm
- Standard Zinc-air battery: type SONY 337
- Battery life: about 5 hours
- Audio bandwidth: from 300 Hz to 4 KHz
- Distortion: <2%
- Size: 3x5x7mm
- Working frequency: all frequencies
- Distance between inductive coil and Mini wireless earpiece: about 70-100 cm.


1.Open battery door, install the battery perfectly and push battery door into battery box gently. Put the earpiece into ear canal by holding the handle and the slight sound of current indicate working order.
2.Adjust the volume of drive equipment to reach satisfaction.
3.Set mobile phone to automatic return or vibration.
4.Put the inductive loop around your neck and connect the inductive loop to the drive equipments (mobile phone, radio) which are attached to or beneath users clothing. One transmits message with radio, the other wearing an earpiece and inductive loop who also has a radio can hear the message very clear. Because the inductive loop inducts the message from the radio to earpiece and then earpiece transforms the electromagnetic inductive signal to audio signal to reach the wireless inception. Communication distances and radio power are the direct proportion. You can communicate with others freely once network exist when you use mobile phone
