System wireless alarm transmission telephone ham06ws remote infrared touch

Features - uses an advanced microprocessor and SMD technology - has 4 wired arm zones and 8 wireless arm zones - contains: o 1 x central unit o 1 x PIR sensor

149,32 €

8 Items

Quantity
Price
5
146,33 €
10
141,85 €
20
134,39 €
50
126,92 €
100
119,46 €
200
111,99 €
500
104,52 €
1000
97,06 €

HAM06WSC

Description


Features

- uses an advanced microprocessor and SMD technology
- has 4 wired arm zones and 8 wireless arm zones
- contains:

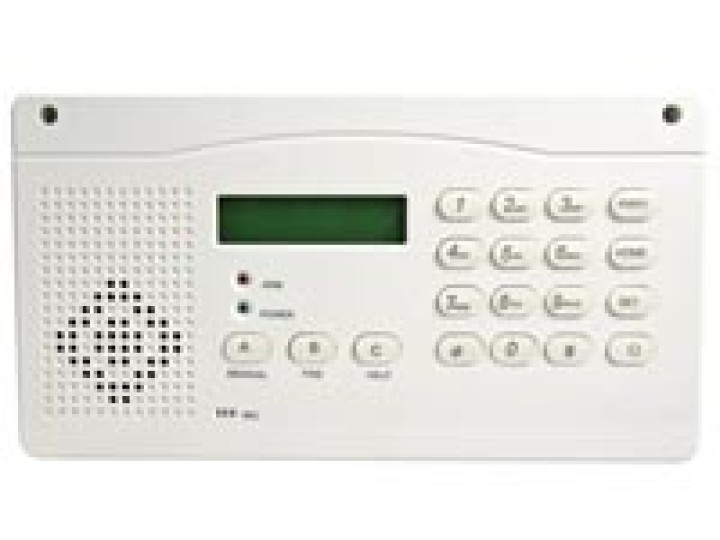

o 1 x central unit
o 1 x PIR sensor (réf. HAM06WSP) OPTIONAL
o 2 x wireless remote control (réf. HAM06WST) OPTIONAL
o 1 x panic button (réf. HAM06WSBP) OPTIONAL
o 2 x door contact (réf. HAM06WSCM) OPTIONAL
o 1 x siren OPTIONAL
o 1 x power adapter for central unit
- autodialer function

Specifications

- central unit:
o power supply: 12VDC (incl.)
o standby power: 12VDC (not incl.)
o working frequency: 433MHz
o remote control range: ±30m
o standby current: 150mA
o alarm volume: > 90dB
- PIR sensor:
o detection angle: 110°
o detection distance: max. 12m
o power supply: 9VDC ((réf. P9VAV), not incl.)
o standby current: 30µA
* 4-key remote control:
o power supply: 3VDC ((réf. CR2032) button cell, incl.)
* panic button:
o power supply: 12VDC ((réf. P12V), incl.)
* door contact:
o power supply: 12VDC ((réf. P12V), incl.)
* siren:
o power supply: 12VDC
o current: < 800mA
