System wireless alarm transmission telephone ham06ws remote infrared touch
REF : HAM06WS

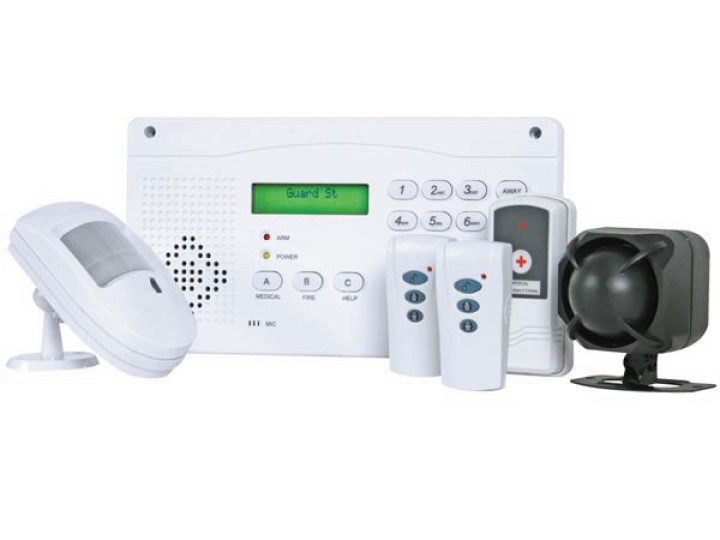

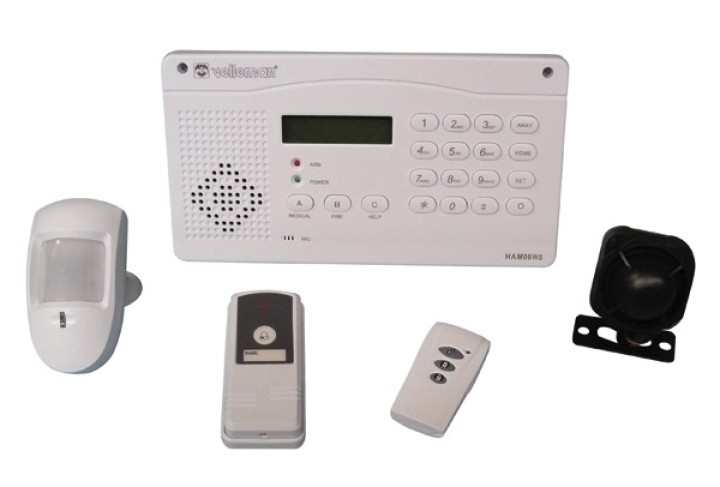

Features
- uses an advanced microprocessor and SMD technology
- has 4 wired arm zones and 8 wireless arm zones
- contains:
o 1 x central unit
o 1 x PIR sensor
Emplacement : egale HAM06WSC R13G4 + HAM06WSBP R2L3 + HAM06WSI + HAM06WSP R2L3+ HAM06WST R2L3+ 2 P12V R6A4 + 1 P9VD R6-D2
Features
- uses an advanced microprocessor and SMD technology
- has 4 wired arm zones and 8 wireless arm zones
- contains:
o 1 x central unit
o 1 x PIR sensor (réf. HAM06WSP)
o 1 x wireless remote control (réf. HAM06WST)
o 1 x panic button (réf. HAM06WSBP)
o 1 x siren
o 1 x power adapter for central unit
- autodialer function
Specifications
- central unit:
o power supply: 12VDC (incl.)
o standby power: 12VDC (not incl.)
o working frequency: 433MHz
o remote control range: ±30m
o standby current: 150mA
o alarm volume: > 90dB

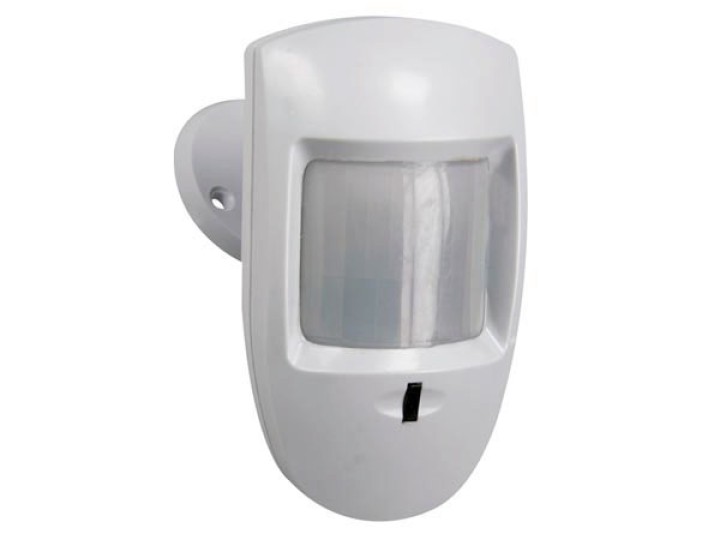

- PIR sensor:
o detection angle: 110°
o detection distance: max. 12m
o power supply: 9VDC ((réf. P9VAV), not incl.)
o standby current: 30µA

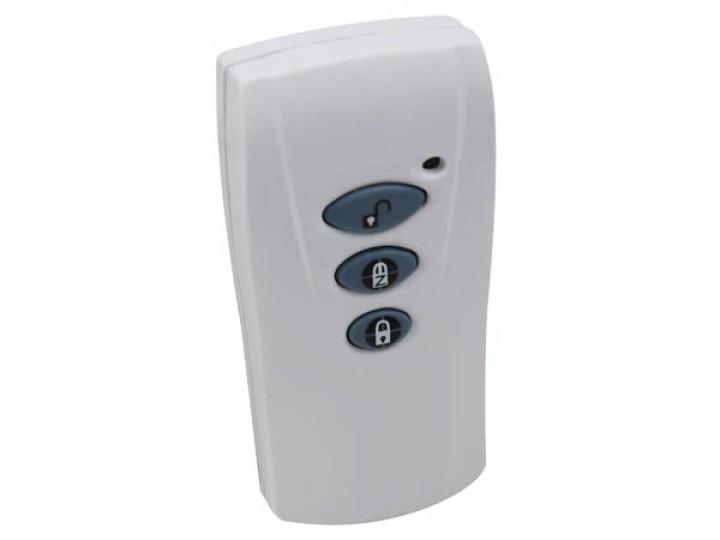

* 4-key remote control:
o power supply: 3VDC ((réf. CR2032) button cell, incl.)

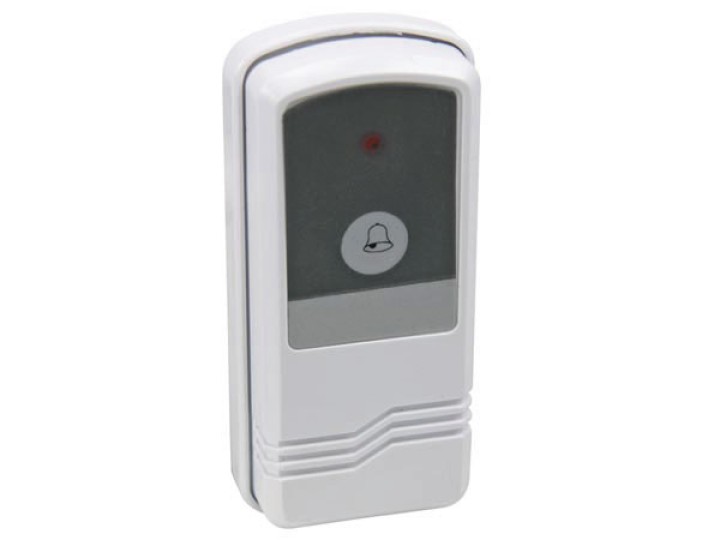

* panic button:
o power supply: 12VDC ((réf. P12V), not incl.)

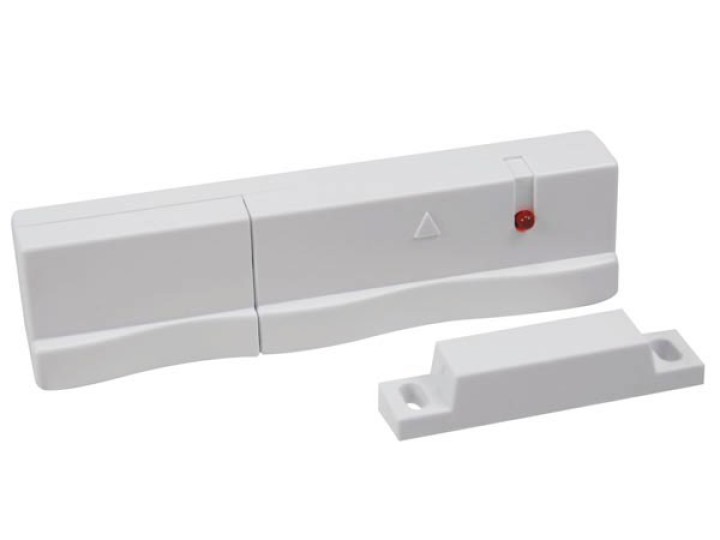

* door contact:
o power supply: 12VDC ((réf. P12V), not incl.)
* siren:
o power supply: 12VDC
o current: < 800mA
