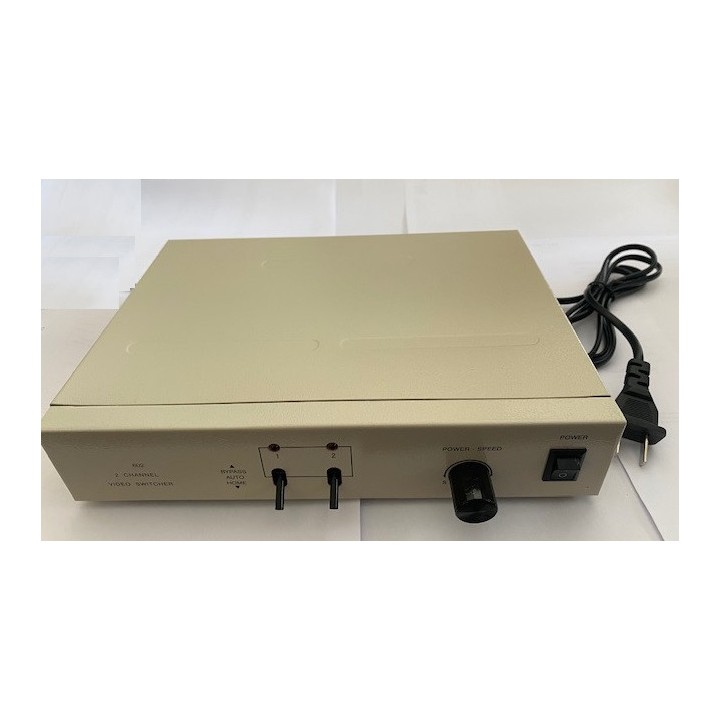

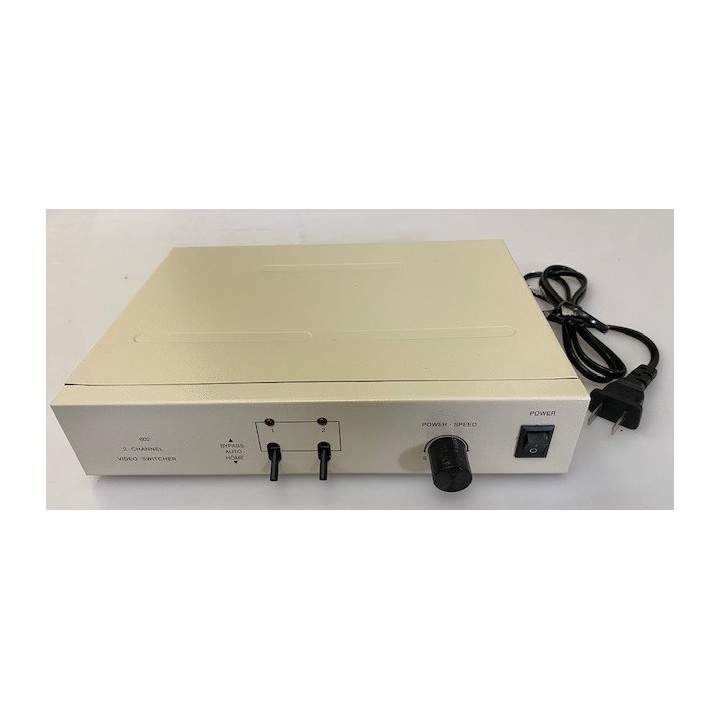

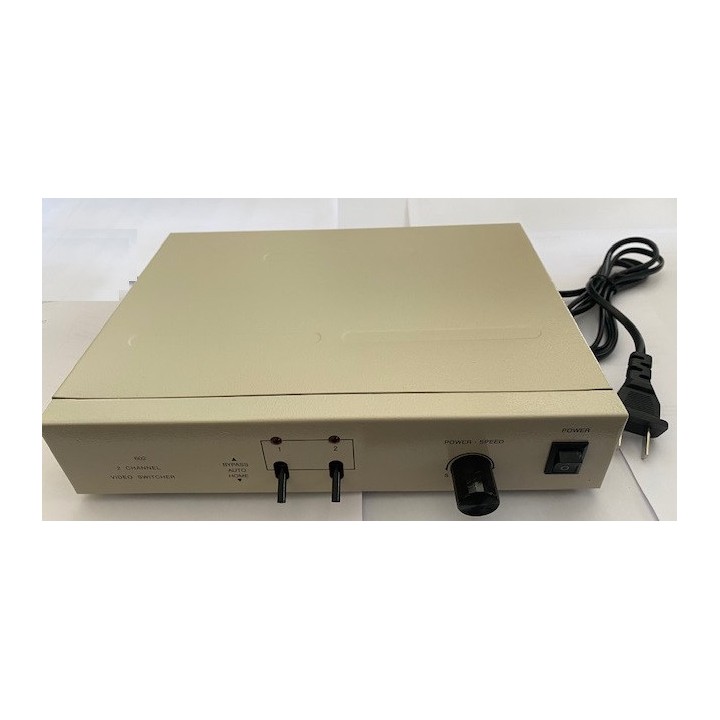

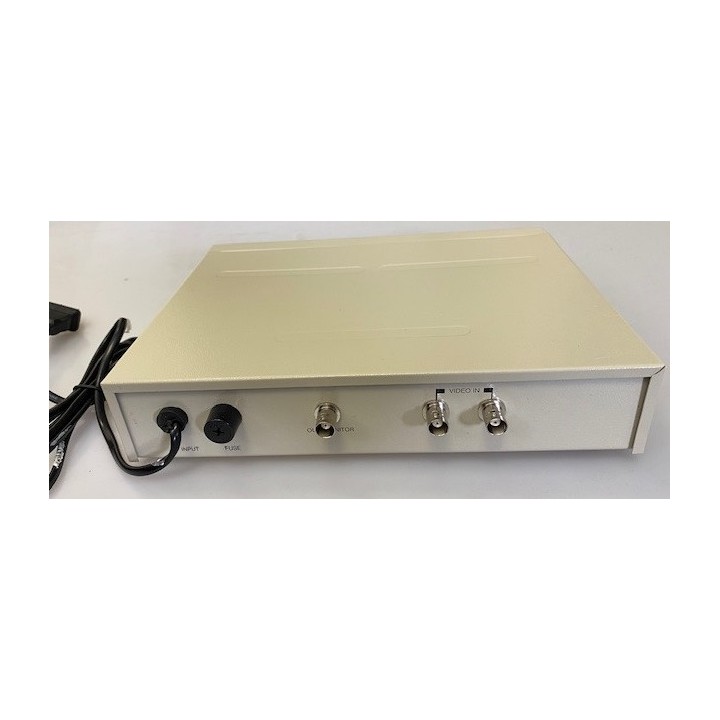

2 In 1 Out Composite BNC Video Switcher For CCTV Security System

2 In 1 Out Composite BNC Video Switcher For CCTV Security System
Note: This BNC switch, output can only display a screen, the screen can be switched, but not at the same time in a plurality of screens displayed on the display.
product manual:
1. High-quality monitoring products, digital integrated circuits, chip components, high-speed TTL and CMOS circuit design, the circuit smaller transmission delay time, the image clearer.
2. You can enter up to 1 channel BNC video signal, by automatically switching or control of one of the audio and video or video signal output to the monitor.
3. can automatically switch, adjustable automatic switching time interval.

Product Features:
Signal stability, compatibility; image clarity, high stability; technology thick, excellent quality, long service life.
Technical Parameters:
Video input: 1VP-P / 75 Euro 1-2 BNC seat
Video output: 1VP-P / 75 Euro a BNC seat
Input voltage: ~ 220V / 50HZ
Video gain: 0.8VP-P ~ 1.4VP-P
Signal Bandwidth: 2MHZ + _3dB
Image resolution: 40dB or more
Maximum signal input: 2VP-P
Conversion interval: 1-45 seconds
Ambient temperature: -20 to +60 degrees
Specifications: 252X210X55mm
