3G WCDMA 2100MHZ Mobile Phone Signal Booster Signal Repeater Cell Phone Amplifier With Cable + Antenna
REF : GSM2100
3G WCDMA 2100MHZ Mobile Phone Signal Booster Signal Repeater Cell Phone Amplifier With Cable + Antenna

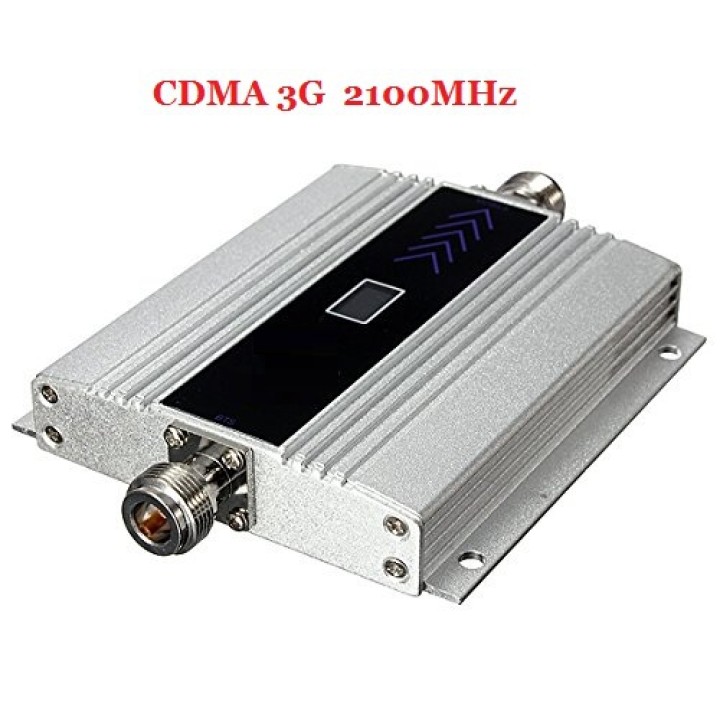

W-CDMA 2100Mhz Mobile Phone Signal Repeater
A mobile phone signal repeater provid
Emplacement : BUREAU DIDIER FENETRE
3G WCDMA 2100MHZ Mobile Phone Signal Booster Signal Repeater Cell Phone Amplifier With Cable + Antenna
W-CDMA 2100Mhz Mobile Phone Signal Repeater
A mobile phone signal repeater provides the ultimate solution in any area where
Cellular communications can not work well due to leak of signals,the repeater
Device features easy installation & operation ,build-in indoor antenna and no
Interferece,it could also improve indoor electromagnetism environments.
Protract cellular battery life and reduce radiation of cellphones.
A mobile phone repeater is ideal for house ,home,office use.
Introduction to mobile phone signal repeater
Enhance mobile phone signal strength.
Improve communication quality.
Reduce cellphone radiation.
Protract cellular battery life.
Economic building life.
Easy installation.

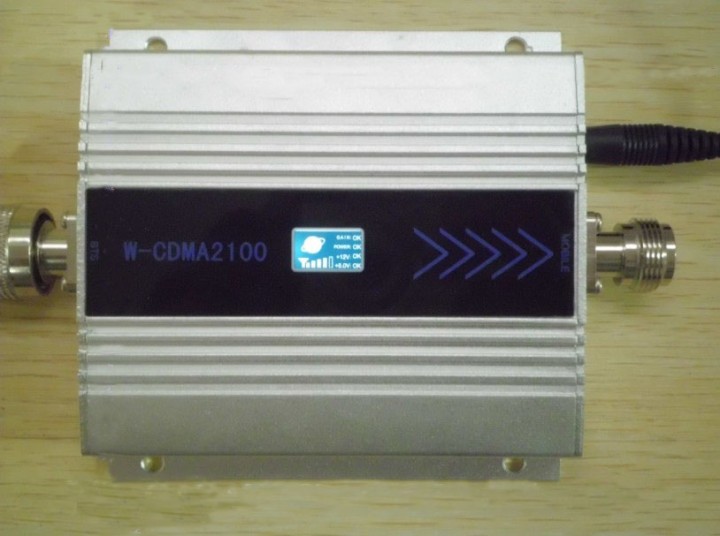

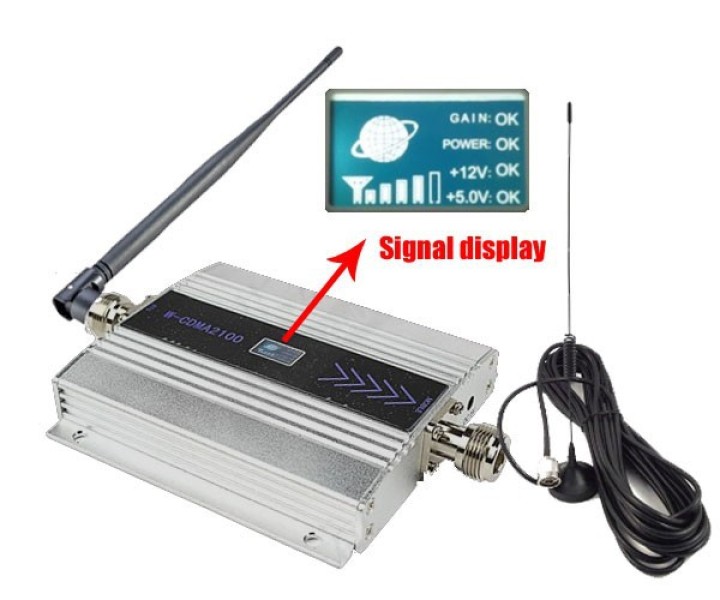

Display device (for reference)
The external power supply detecting normal display ----OK.
Internal power supply detecting normal display ----OK.
MMIC circuit detects normal display ----OK.
-50dbm signal input and detection to achieve full displayed----OK.
Features:
High gain ,easy installation and operation.
Full-duplex,singal-port design,build-in power supply.
Use ALC technology ,adjust extent automatically.
Big linear power,control intermodulation & scatteration stably.
Dependability stand by GB6993-86 standard.
Compatibility of electromagnetism according with ETS300 609-4.
Technique Specifications:
Item Specification
Up Link Donw Link
Frequency Range 1920MHz--1990MHz 2110MHz--2180MHz
Power -70 ~ -40dBm/FA (1.23MHz)
Gain 55Db ±3db 60Db ±3db
Max Output Power +17dBm/ ±3DBM Total Power +17dBm/ ±3DBM Total Power
Impedance 50O

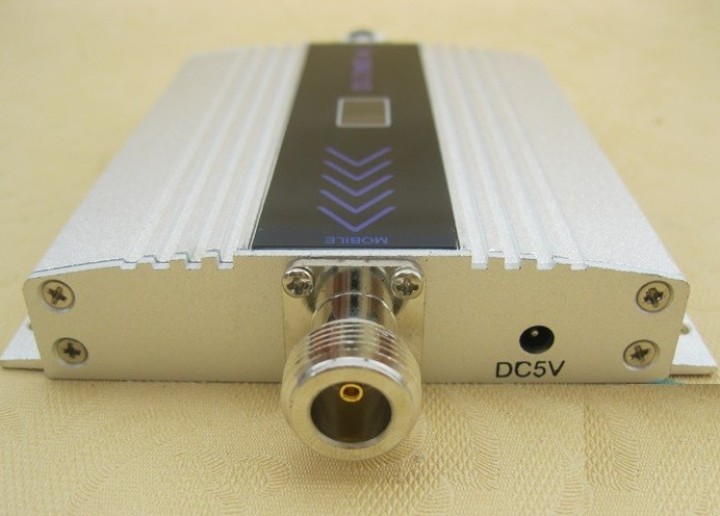

Power Supply AC 110/220V
Seclusion >70dB
Compact Design Indoor Use
Item Diemension 130 x 100 x 20mm

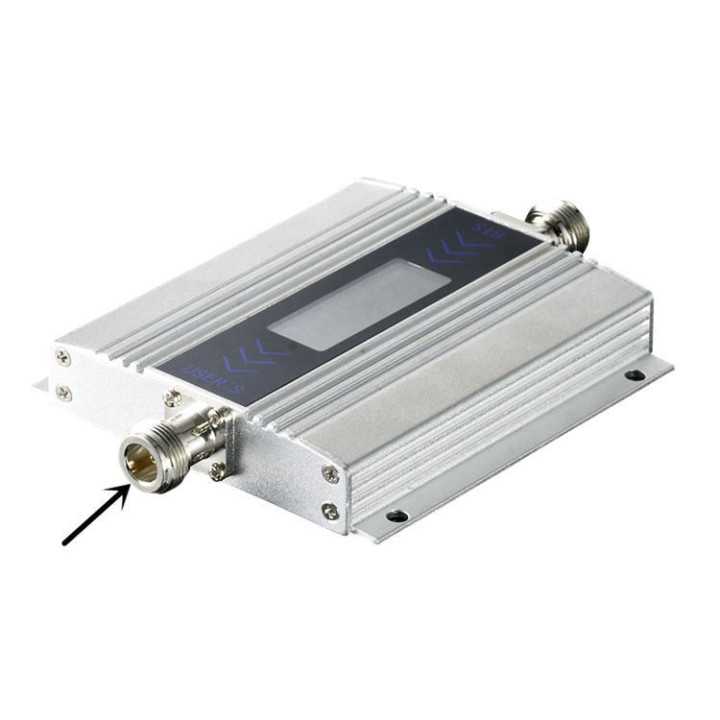

Connect Mode N connector
Ambient temperature -10°C~60°C
Signal coverage area :
1.Support Maximum coverage area is 500 square meters.
( Depend on the area condition)

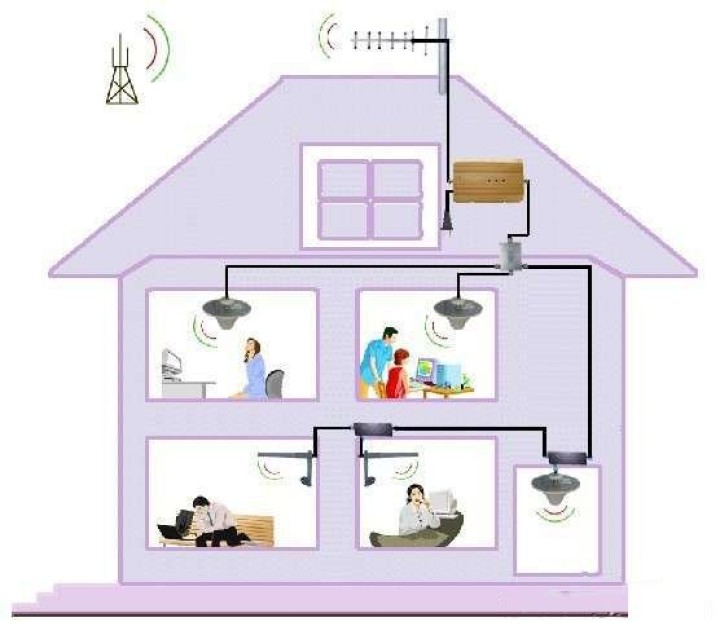

2.One indoor antenna only use for about 100 square meters (in open space).
If want to make all use of 500 square meters which the host supports,
need to add more indoor antennas (about6-7) and power divider / splitter.

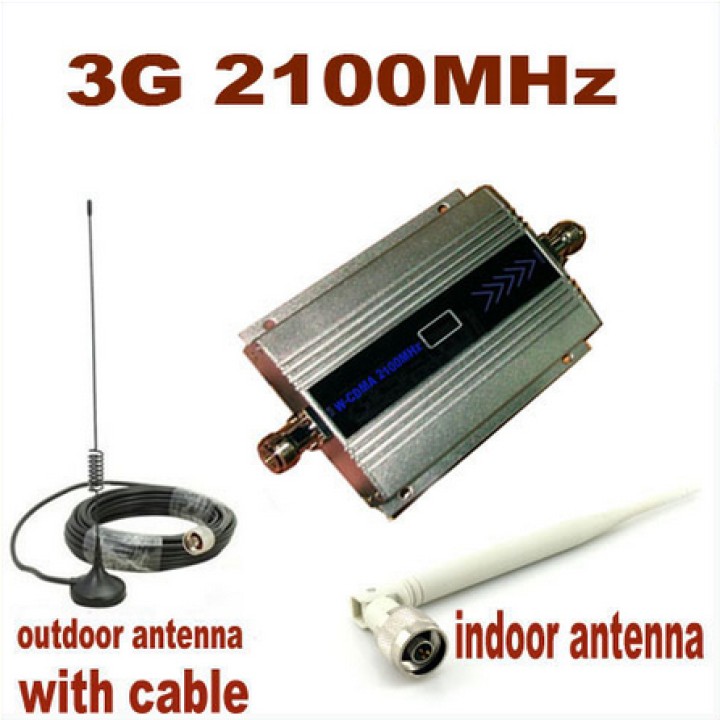

Package included:
1 x W-CDMA 2100MHz signal repeater.
1 x Power adapter (We send EU adapter, if you need additional adapters, please leave a message, thank you!)
1 x Manual

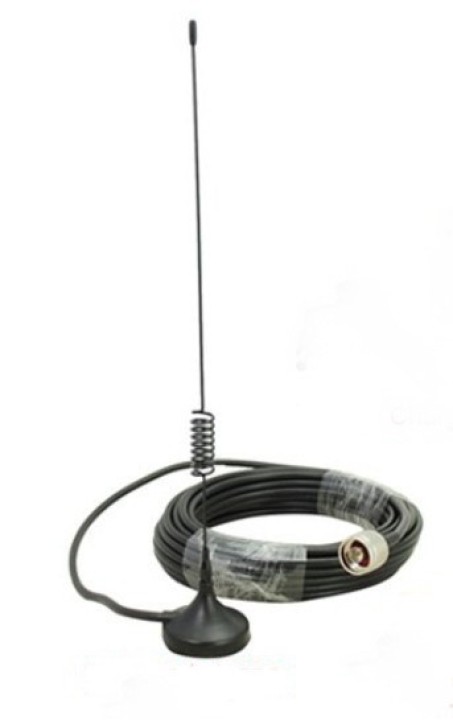

1 x Outdoor antenna with 10 meters cable

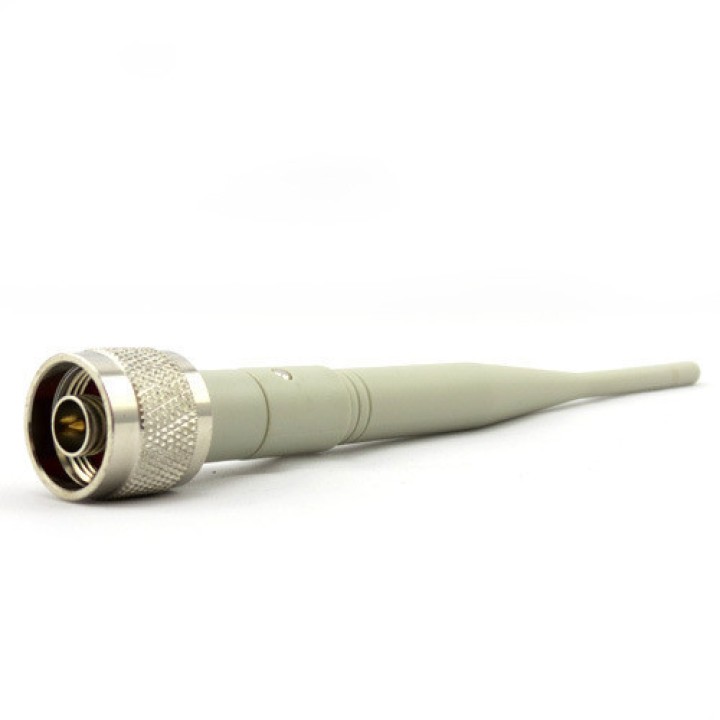

1 x Indoor Antenna
Important Notice:
1, install a signal booster needs a strong outdoor signals(4-5bar). If an outdoor antenna can not receive a strong outdoor signals, signal booster does not work.

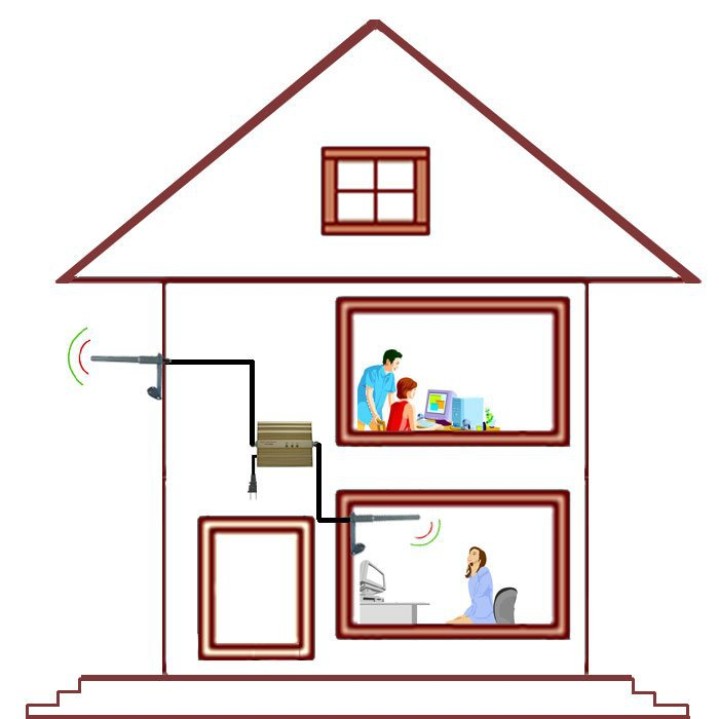

2,Indoor antenna and outdoor antenna can not be in the same area. The outdoor antenna is installed outdoors.
