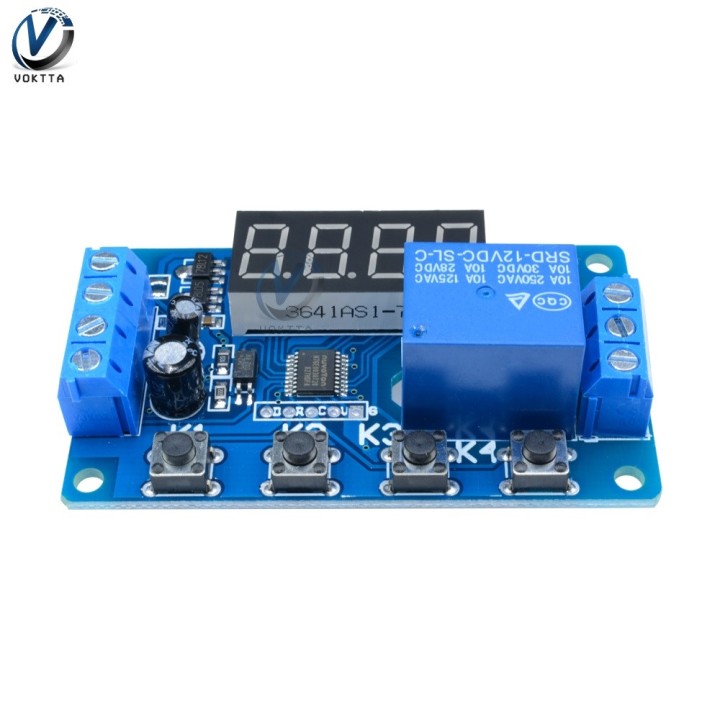

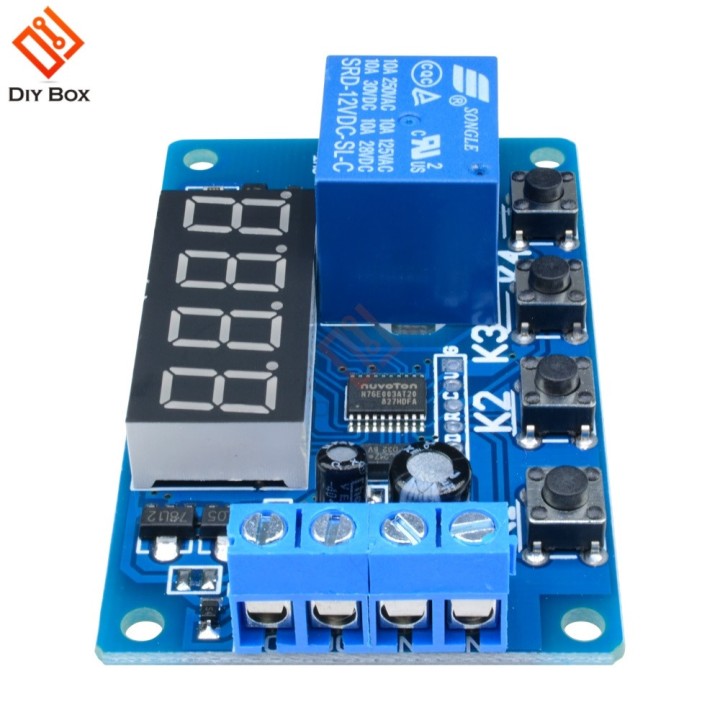

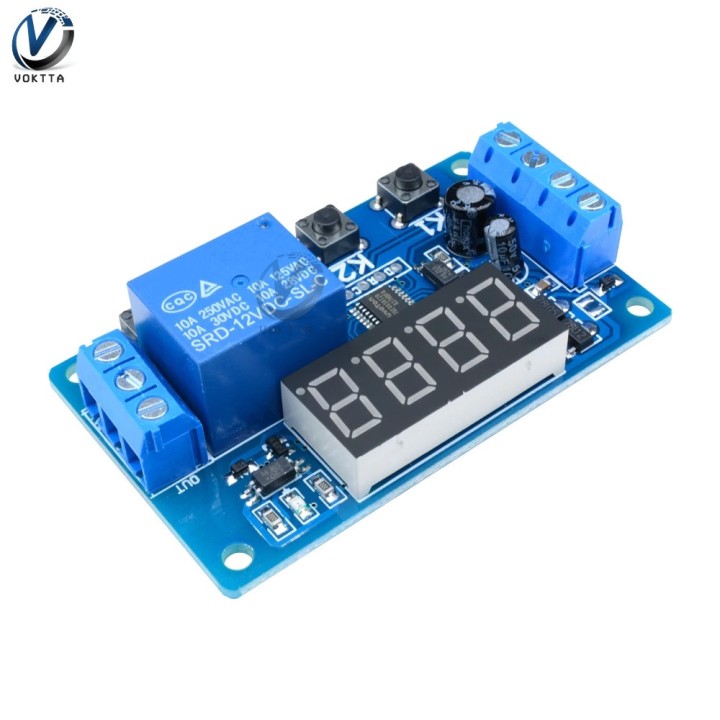

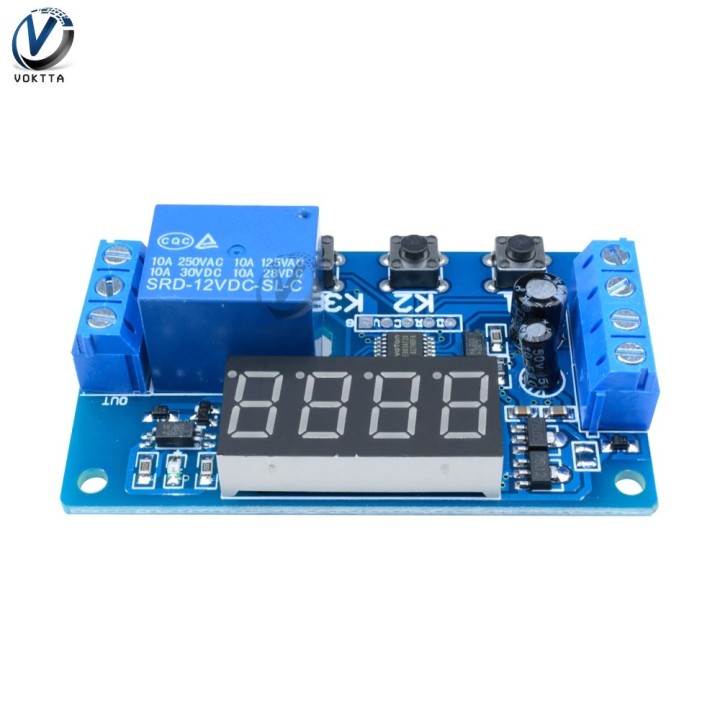

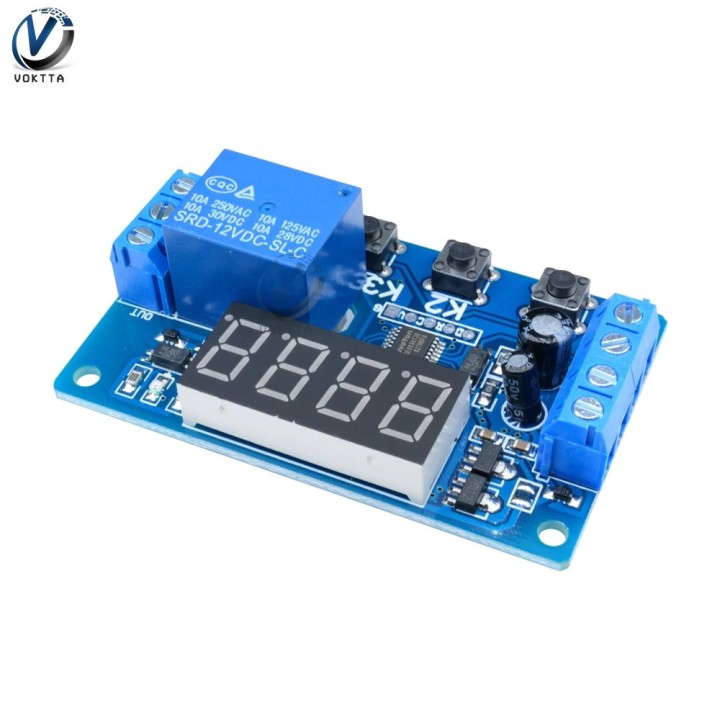

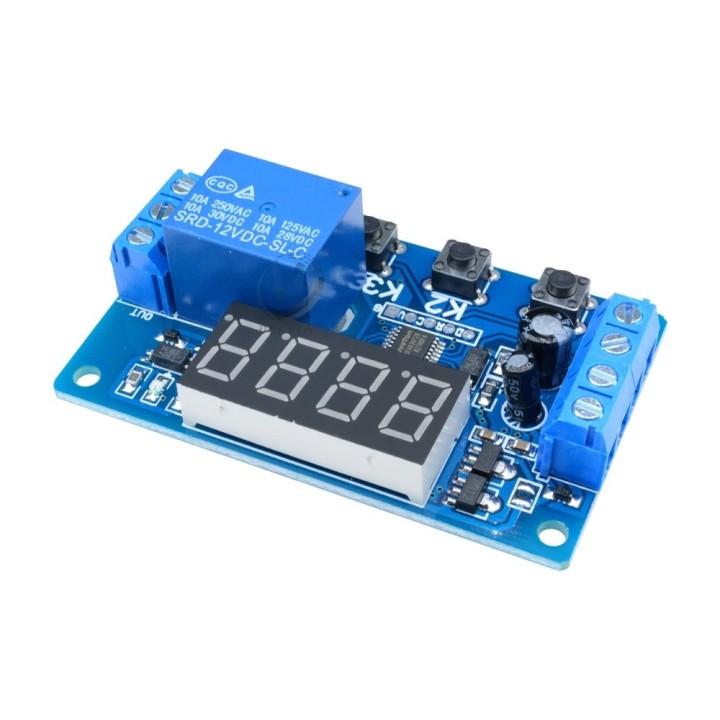

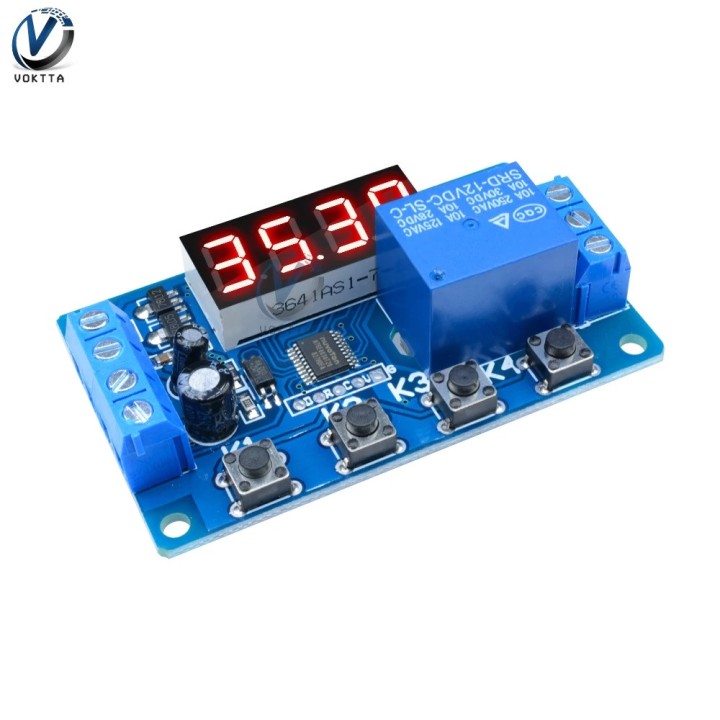

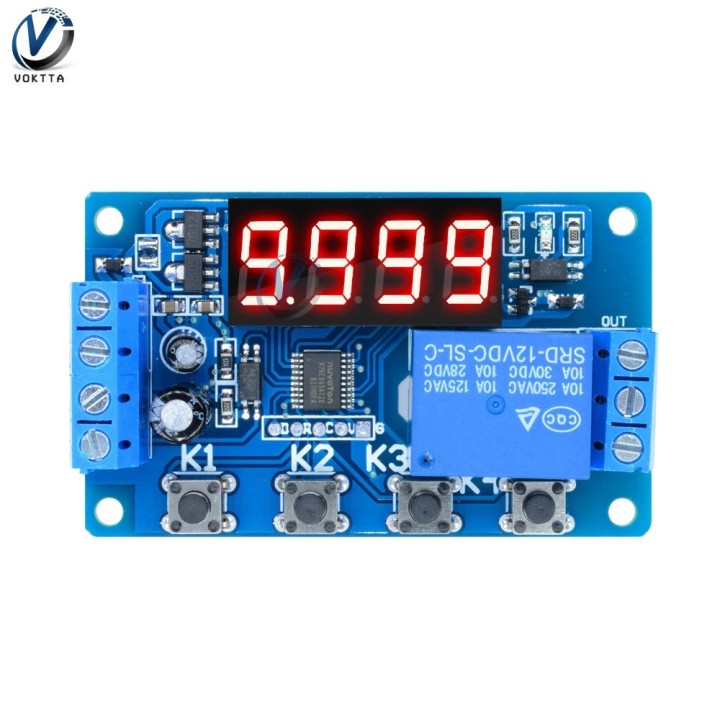

LED 12V Digital LED Screen Delay Relay Time Delay Relay Multifunction Bistable Control Card Cycle Switch for Motor
1: product model: YYC-2S 24 common functions, to meet more application needs; can control solenoid valves, pumps, motors, lights, etc.
2: Input voltage: DC 5/12/24 V optional
3: output power: can control the DC or AC load in 10A
4: time range: 0.01 seconds to 999 minutes adjustable at any time

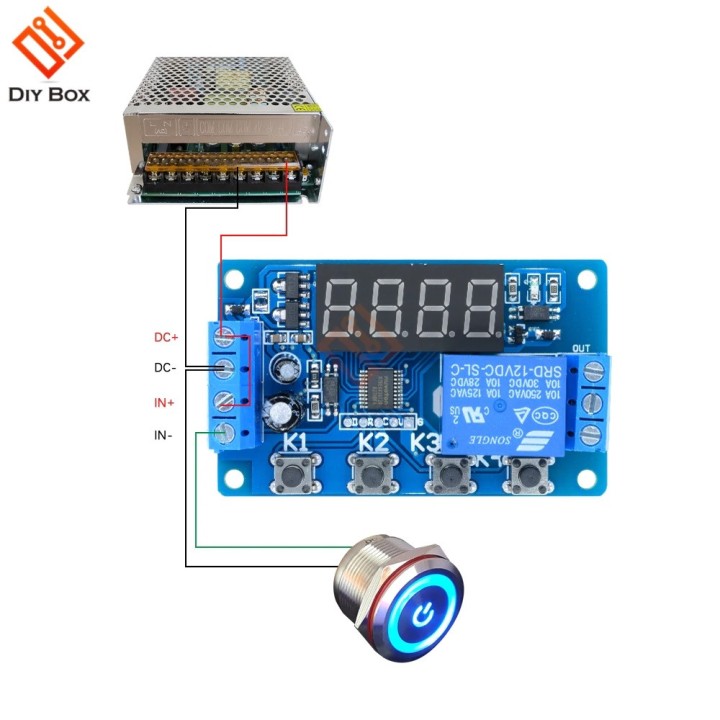

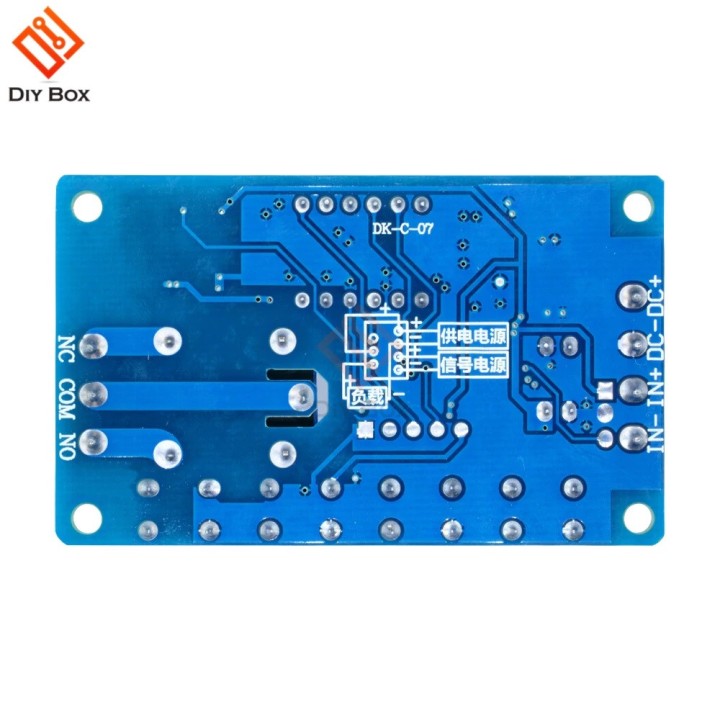

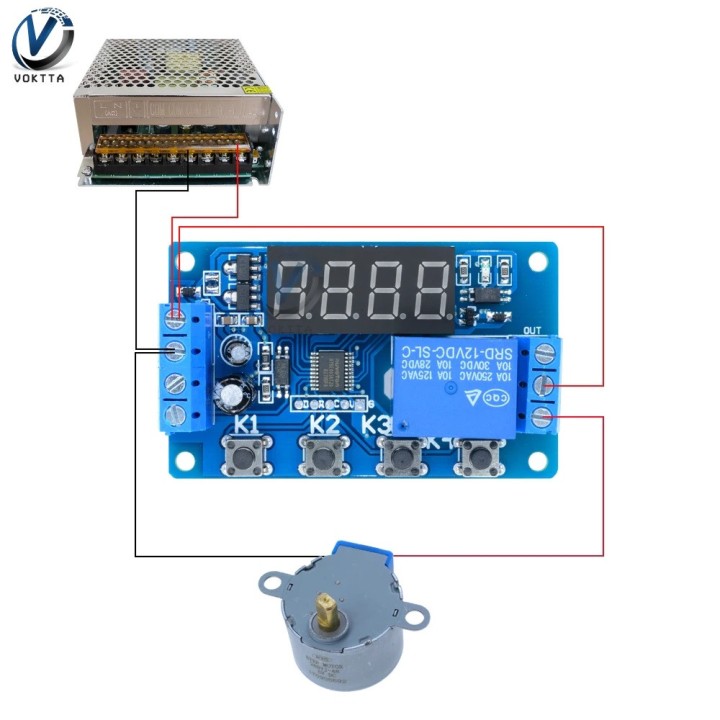

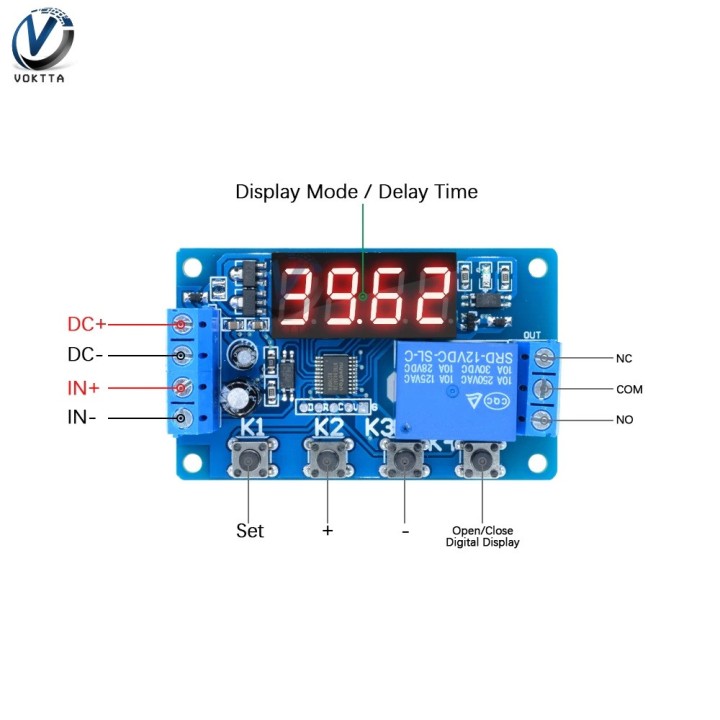

5: Description of the wiring port:
1, DC +: positive DC power input
2, DC-: DC input negative power
3. IN +: positive input terminal
4, IN-: signal input terminal
5, no: relay normally open interface, the relay is suspended before the suction, after suction and short circuit with COM
6, COM: common relay interface
7. NC: The relay normally closes the interface and the relay is shortened for COM before the suction is closed.
1: list of functions:
P-11: Jog P-12: P-13 self-locking: give the signal, the relay will stop automatically for one second; the trigger will be invalid during the delay.
P-14: give the signal, the relay will stop automatically for one second; trigger the re-time during the delay
P-15: give a signal, the relay is automatically stopped for one second; trigger timing is triggered during the delay
P-16: give the signal, the relay will stop automatically for one second; trigger the reset during the delay
P-17: give a signal, the relay is closed, the input signal is disconnected, the output is off after one second
P-18: after power on, the relay will immediately fire, after a delay of one second, the power will be off;
P-21: disconnect the signal relay, after a delay of one second, the relay pulls in
P-22: give a signal, after more than one second, the relay pulls, the signal disappears, the relay stops.
P-23: After the signal disappears for more than one second, the relay is closed, there is a signal, and the relay stops.
P-24: there is a signal. After more than one second, the relay is closed. When the signal disappears for more than one second, the relay stops.
P-25: There is a signal after more than one second, the relay is closed, and after a signal exceeds one second, the relay stops.
P-26: there is a signal. The relay stops after one second of aspiration, and the signal disappears. The relay stops again after one second.
P-27: the pulse signal is detected and the relay is closed; if there is no pulse signal, the relay delays for one second;
P-28: After power up, after a one-second delay, the relay will retire until power is turned off.
P-31: after power on, the relay pulls for one second, disconnects the B seconds, infinite loop; power off P-32: signal, start P-31
P-33: give a signal, start at P-31 the infinite loop; give another signal to complete the loop
P-34: After power-up, after a delay of one second, the relay is pulled and closed after B seconds.
P-35: there is a signal. After a delay of one second, the relay pulls and closes after B seconds.
P-36: there is a signal. After more than one second, the relay shoots and closes after B seconds.
P-37: There is a signal, the relay will automatically stop for one second, then stop for 24 seconds. The signal trigger is invalid for a time + B.
P-38: There is a signal, the relay will automatically stop for one second, stop and re-time for B seconds, then automatically close for one second.
P-41: There is no signal; the signal disappears; the relay operates after the delay of one time.
P-42: the signal disappears, after a delay of one time, the relay operates; the end of the work B the time
P-43: the signal disappears. After the time A, the relay operates; the work time B ends.
P-44: After switching on, the relay operates for a certain time and stops the time B; the cycle stops automatically during C periods.
P-45: the power supply is not activated, after the signal is given; the relay operates for a time, the time B is stopped; cycle C stops automatically; the signal is given again once again
P-46: After sending the signal more than once, the relay is closed; suction is maintained; the power is stopped.
P-47: After the signal is sent more than once, the relay is closed for B seconds.
P-48: In C seconds, after the signal is continuously sent for more than one time, the relay is closed for B seconds.
2: Button adjustment instructions:
The power-on display "----" means entering the standby state;
Press K1 for the pr
