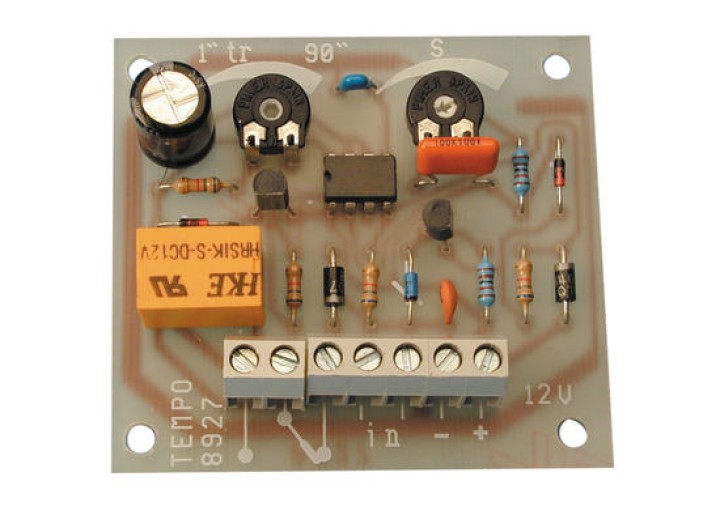

This device can be used in several ways: time lapse relay, electronic analyser to adjust the sensitivity of shock sensors, etc. The AEMI allows you to trip a siren for a certain length of time, from 0
Dimension 65x60x15mm . Weight 20gr Supply 12Vdc . Consumption 9/30mA This device can be used in several ways: time lapse relay, electronic analyser to adjust the sensitivity of shock sensors, etc. The AEMI allows you to trip a siren for a certain length of time, from 0 to 90 seconds. Time lapse triggered by momentary opening of a loop. You will need to add an HB2 relay if you wish to connect a high power siren. 1 NO/NC switched output 1A maximum (NO 12Vdc).
