ER26500 lithium battery 3.6V 9000mAh c lisoci2 9000mAh 9ah 26500 ls26500 r14 lsa8500 sl770 lsh14 ls 26500

Electrical Characteristic ER26500 3.6V 9000mAh is LiSOCI2 battery high capacity type,
non-rechargeable!
Battery Model: ER26500
Battery Size: C
Dimension ?26.2*50.5mm
Nominal Voltage 3.6V
Cut off voltage 2.0V(at 1mA discharge)
(At 1.0mA, +25°C 2.0V cut off. The capacity restored by the cell varies according to current drain, temperature and cut-off,For more severe conditions,consult ACCX.)
Operating temperature range

-60~+85°C

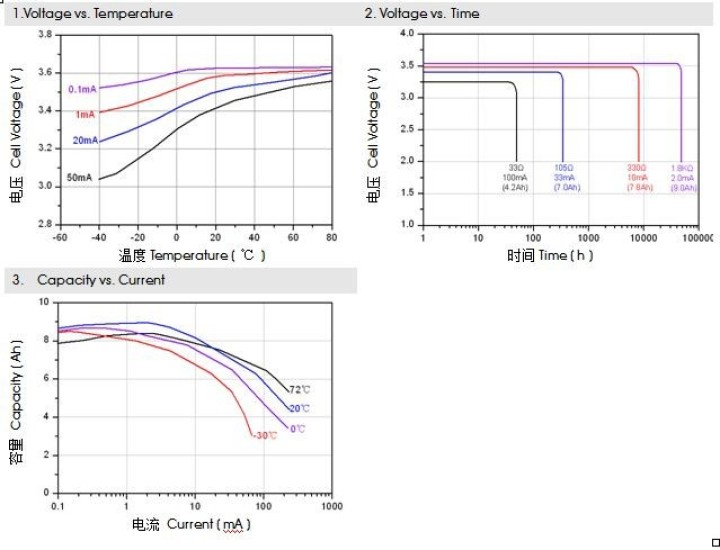

(Operating at different temperature may reduce the capacity and lower the voltage. pls check the discharge curve. )
Storage(recommended) Max. 30°C
Max. recommended continuous current 200mA
Max. pulse current 400mA
Typical weight Max. 20g
Self life >10 years
Self discharge current less than 1 % per year
Key features

1. High and stable operating voltage
2. Low self discharge rate(less than 1% after 1 year of storage at +25°C)
3. Stainless steel container
4. Hermetic glass-to-metal sealing
5. Non-flammable electrolyte
6. Bobbin type
7. UL,UN, CE,SGS recognized
Main applications

1. Utility metering
2. Memory back-up
3. Alarms and security devices
4. Automotive electronics
5. Tollgate systems
6. Military electronics
7. Automatic meter reading
8. professional electronics


Warning

1. Fire, explosion and severe burn hazard.
2. Do not recharge, crush, disassemble, heat above 100°C;
3. Do not solder directly to the cell.
