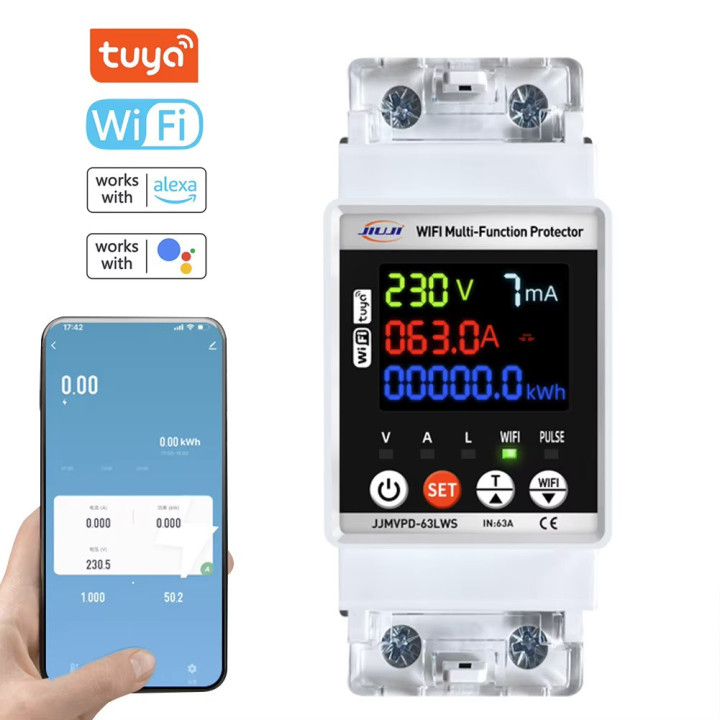

Tuya smart life wifi energy meter overload overcurrent protection 63a remote switch 220v

Tuya smart life wifi energy meter overload overcurrent protection 63a remote switch 220v
Earth leakage and undervoltage protection device, switch device, circuit breaker, kWh energy meter, Tuya WiFi, 63A, 230V
Single-phase LCD digital display DIN rail energy meter, electronic KWh meter, energy consumption monitor, 5-63A, 220V, 50Hz,
Multi-function smart energy meter, circuit breaker overload and overcurrent protection, Tuya, WiFi, 63A
This intelligent metering circuit breaker integrates overvoltage, undervoltage, overcurrent, leakage protections, and other functions in one, fully protecting circuit safety. Intelligent leakage identification when overvoltage and overcurrent occur, the protector will automatically cut off the powersupply to protect the home appliance if the fault has been eliminated, it will automatically reclose and turn on the power. Physical button design, the protection threshold values ​​can be set according to your needs, sensitive operation and comfortable hand feeling. Suitable for many scenarios such as power distribution room, home electricity management, on-site equipment control, camera management, room lighting management, home appliances, etc.
Features:
【Premium Material & Digital Display】: The housing is made of flame-resistant material which is wear-resistant, anti-interference, high strength and with fine durability. The physical button design allows you to set the protection threshold values ​​according to needs, ensuring sensitive and comfortable operation. The digital display design can simultaneously display three real-time data on the screen, making it more accurate and easier to read. You can see the data clearly at a glance.
【Automatic Reclosing Protection】: The device supports intelligent leakage identification. When overvoltage or overcurrent occurs, the protector will automatically cut off the power supply to defend household appliances. If the fault has been eliminated, it will automatically reset and restore the power supply. By integrating overvoltage, undervoltage, overcurrent, leakage protection and other functions into one, it ensures the safety of the circuit. It also has a power failure memory function.
【Easy Installation】: The large wiring port design makes the wiring process faster and easier. Compact size suitable for installation in the distribution box, or mounted on the wall. DIN rail type installation, no screws required, buckle fixing.
【Wide Applications】: Application scenarios, suitable for household appliances management, remote management, housing rental use, industrial control equipment use, intelligent upgrade of power distribution equipment, etc.

Specifications:
Name: Automatic Reclosing Protector
Material: Plastics
Version: WiFi Version
Item Size: 39 * 95 * 70mm / 1.54 * 3.74 * 2.76in
Item Weight: 182g / 6.42ounce
Package Size: 100 * 44 * 76mm / 3.94 * 1.73 * 2.99in
Package Weight: 198g / 6.98ounce
Product Specification
Rated Voltage: AC230V; Frequency: 50Hz/60Hz
Function:
1. Under voltage protection 80V-210V (adjustable) (default: 175V)
2. Over voltage protection 120V-300V (adjustable) (default: 275)
3. Over current protection 1A-63A (adjustable) (default: 63A)
4. Reconnection time (delay on time): 10s-90s (default: 30s)
5. Current leakage protection: 10-99mA (this function can be disabled)
6. Current and leakage reconnection times 1-30/Off (adjustable) (default: 5) This function can be disabled
7. Temperature protection 10-85 °C (adjustable) (this parameter is set only on the APP)
8. Display range of power: 0-99999.9kWh
9. Energy consumption record range: 10-500kWh (default: 30kWh)
10. Voltage meter
11. Ammeter
12. Energy meter
13. Bidirectional detection (Only EAMPDW-TY-63S/EAMPDW-TY-63D)
14. Time period overcurrent protection control: 1-100A (adjustable) (Only EAMPDW-TY-63D)
PS: This device has a memory function. When the power is off, the device can memorize the Kwh value, overvoltage, undervoltage and overcurrent.
Details
Dimensions 85mm*36mm*65mm
Working Temperature -30℃-70℃
Output Voltage 220V
Accuracy Class ±1%
Measuring Energy Range 0-99999.9kw/h
Phase SINGLE PHASE
Model Number EAMPDW-TY-63
