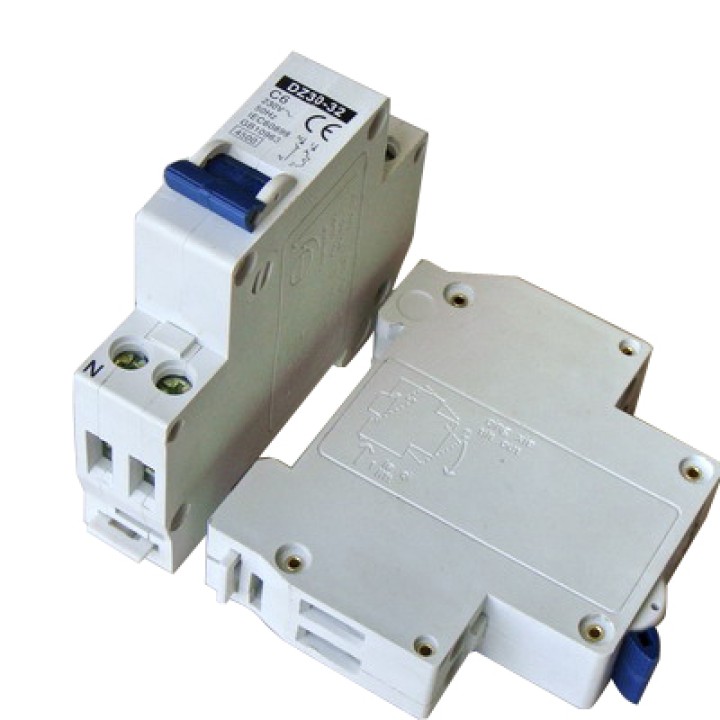

DPN MCB



Technical Data ( DPN MCB ):

Model: DPN MCB

Standard: IEC60898

Rated current In: 6, 10, 16, 20, 25, 32A

Rated voltage Un: 230V

Poles: 1P+N

Rated insulation voltage Ui: 500V

Rated impulse withstand voltage Uimp: 6000V

Energy limiting class: 3

Thermal operating limit: (1.13 ~ 1.45)x In

Tripping characterstic: B, C, D

Ambient temperature: -5 to 40°C

Installation: Mounting on 35mm DIN rail

Degree of protection: IP 20



Function ( DPN MCB ):

1. Protection against short circuit current and overload current

2. Isolation

3. Control

Breaking capacity ( DPN MCB ):
Model Tripping curves Rated voltage Poles Rated current In Breaking capacity Width/pole
EBS1B DPN C 230VAC 1P+N 6,10,16,20,25,32A 4500A 18mm



Connection Capacity ( DPN MCB ):

1.Type of terminal: Lug type and Pin type

2. 16mm2 rigid up to 25A ratings





Tripping Curve( DPN MCB ):

Curve C:(5~10 In) protect and control circuit against overload and short circuit; protect resistive and inductive loads with low inrush current.
