REF : DM1P25
Emplacement : R2E5

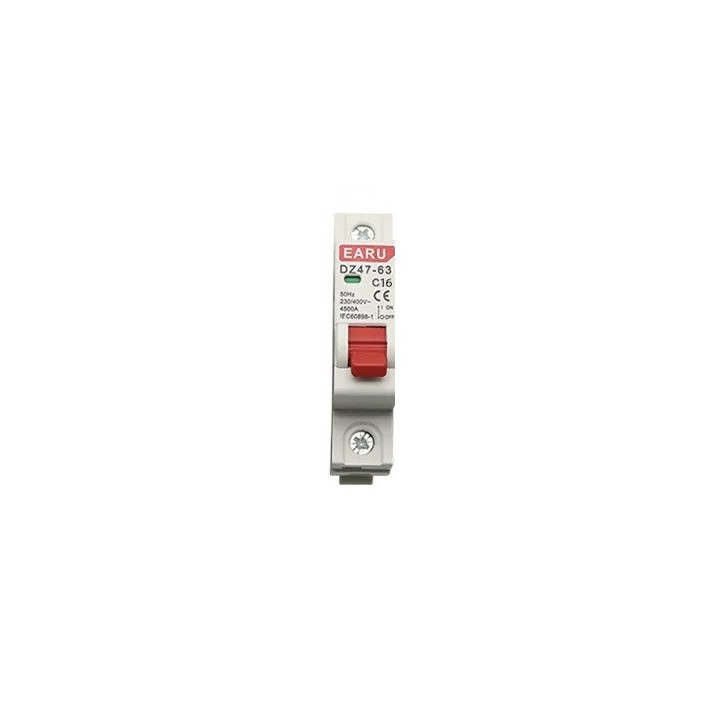

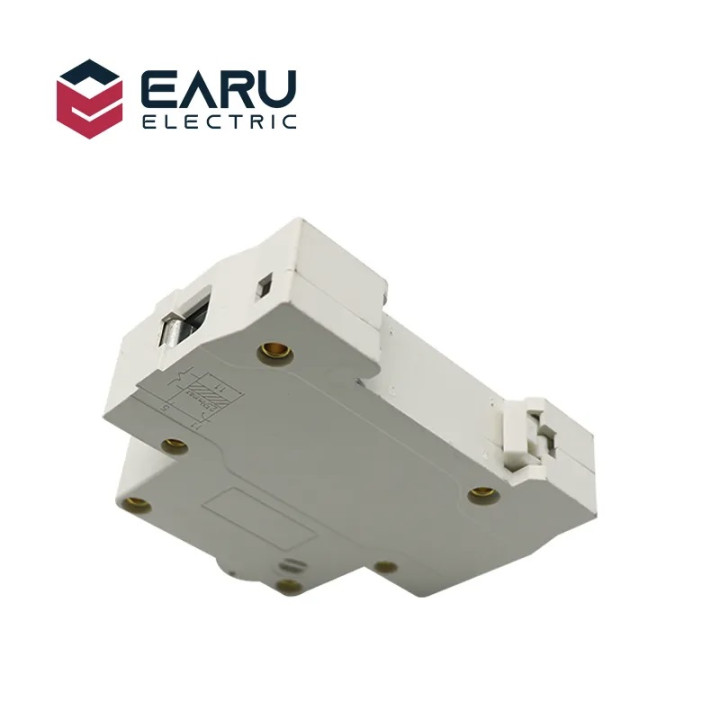

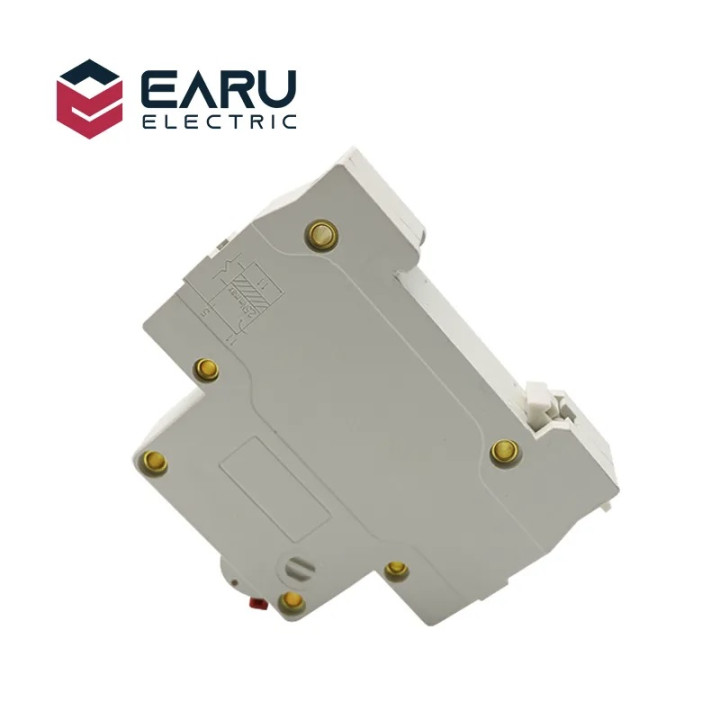

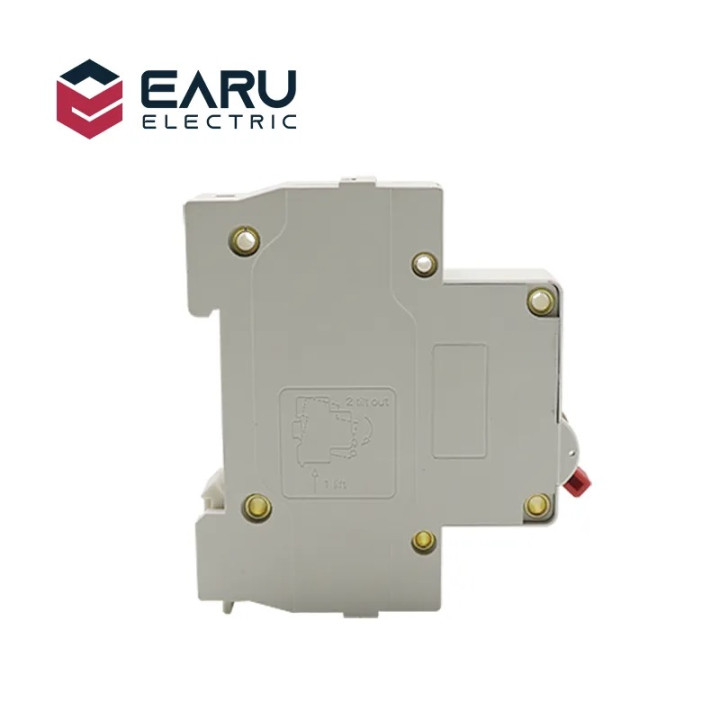

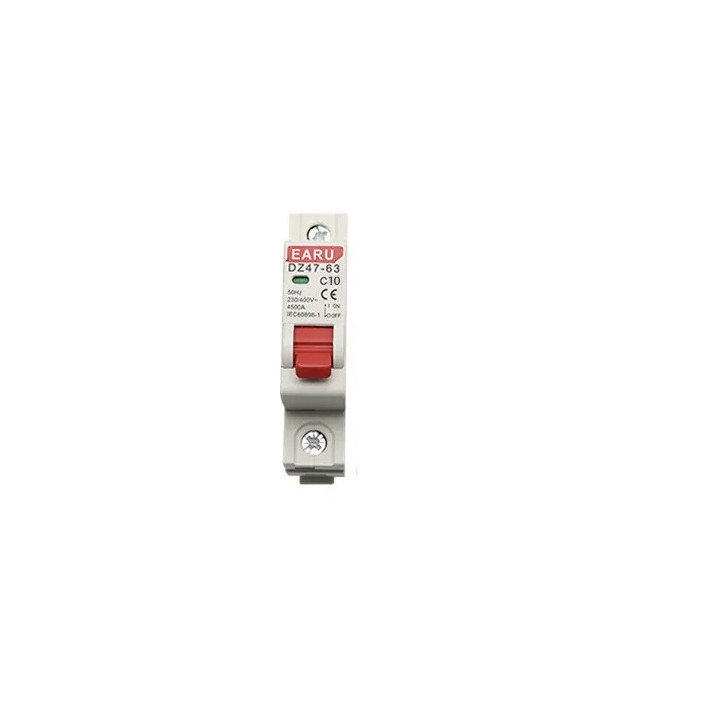

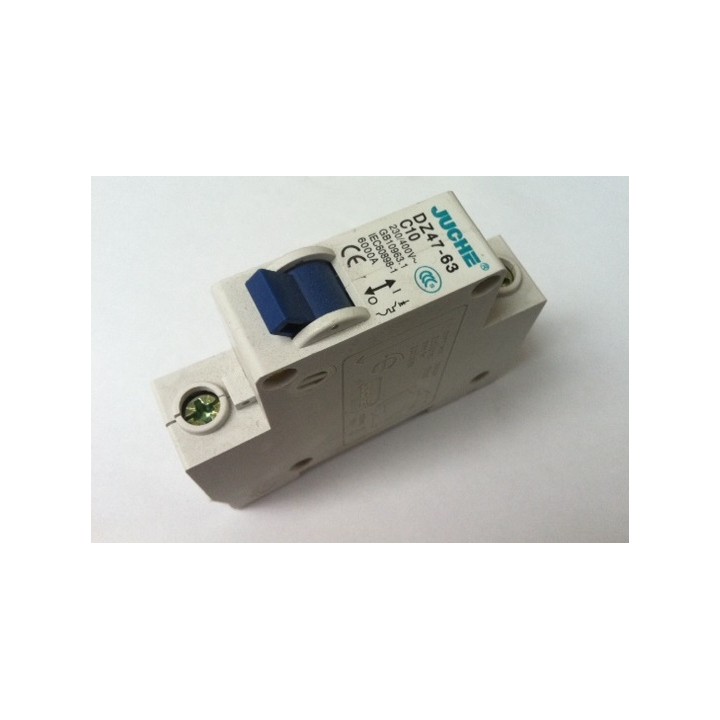

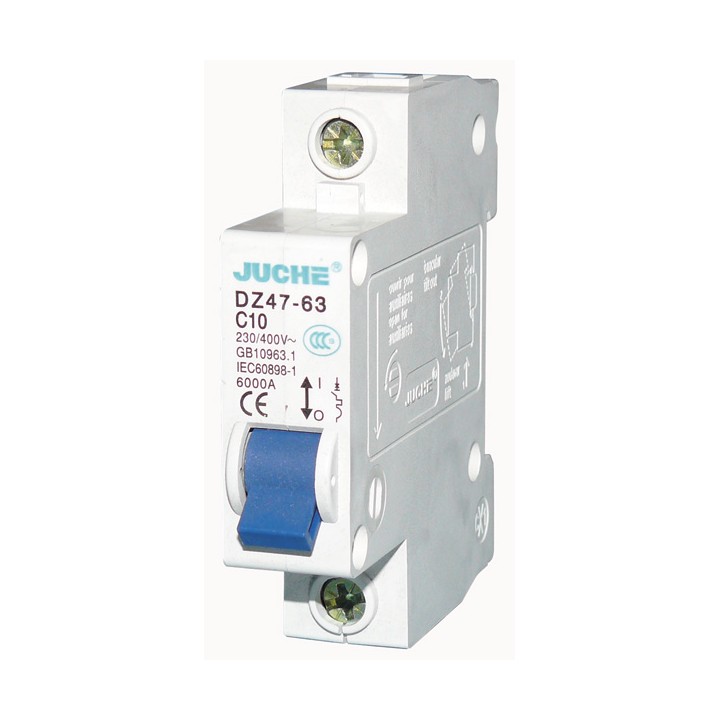

Single pole single phase circuit breaker 25a c25 DZ47-63
Modular single pole circuit breaker 1 pole 220v 230v 25a c206 6kA C45N GB 10963, IEC898, BS3871.1 dz47-63 c25 Din Rail 35mm

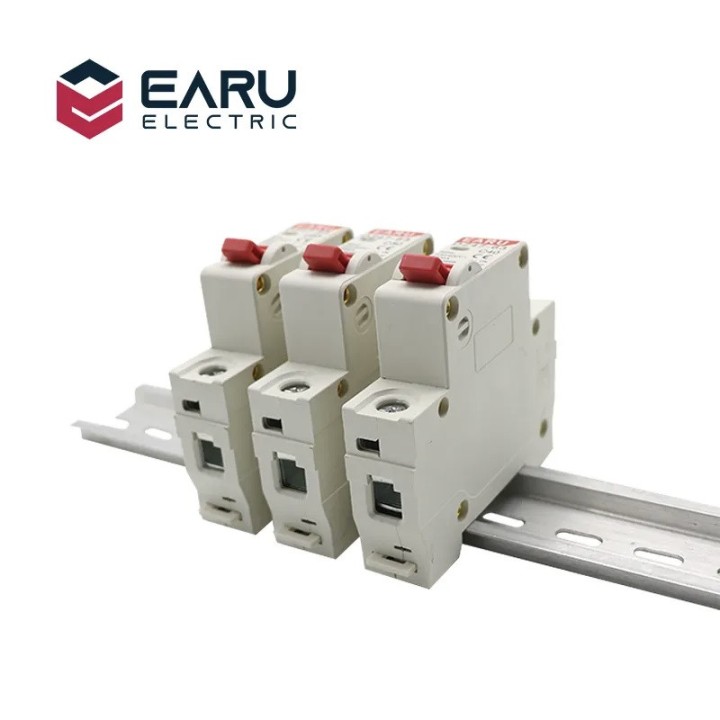

1P AC MCB DZ47-63 C Type 230/400V~50HZ/60HZ Mini Circuit Breaker 25A snap Mount 35mm Din Rail
C45N series circuit breaker is used in lighting distribution system or motor distribution system to protect overload and short circuit in the system. The product is novel in structure, light in weight, reliable and excellent in workmanship. It has high breaking capacity, can actuate quickly and it is installation uses with guide, it's case and items are adopted with high flame retardant and shockproof plastics. The product, with long service life, is mainly used in AC 50Hz/60Hz, single-pole 240V for overload and short circuit protection, as well as infrequent switching of electrical equipment and lighting circuits in normal case.
GB 10963, IEC898, BS3871.1.
Specification:
No. Pole: 1P
Rated voltage 240V/415V AC
Rated current (C): 25A
Breaking capacity 6kA
Electrical life not less than 6000 times
Mechanical life (0-c) not less than 20000 times
Tropical test Treatment 2 (RH 95% at 5'C)
According to the instant release type: C type (5ln~10ln)
Frame class 25A
Rated working voltage 240V
Nominal frequency 50/60Hz
Rated working current 25A
Make and break capacity 6000A(16A)
Release type B,C,D
1P pole
Mechanical life 20000
Electrical life 6000
