AC 220V 4CH Wireless 4 Remote Control 5witch System Wireless Light Switch Relay Receiver Transmitter 433Mhz

124,92 €

1 Item

Quantity
Price
5
118,67 €
10
112,43 €
20
99,93 €
50
93,69 €
100
87,44 €
200
81,20 €
500
74,95 €
1000
68,70 €

R4220V5T

Description

AC 220V 4CH 4 CH Wireless Remote Control Switch System Wireless Light Switch Relay Module Radio Receiver Transmitter 433Mhz
 Specifications:

Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

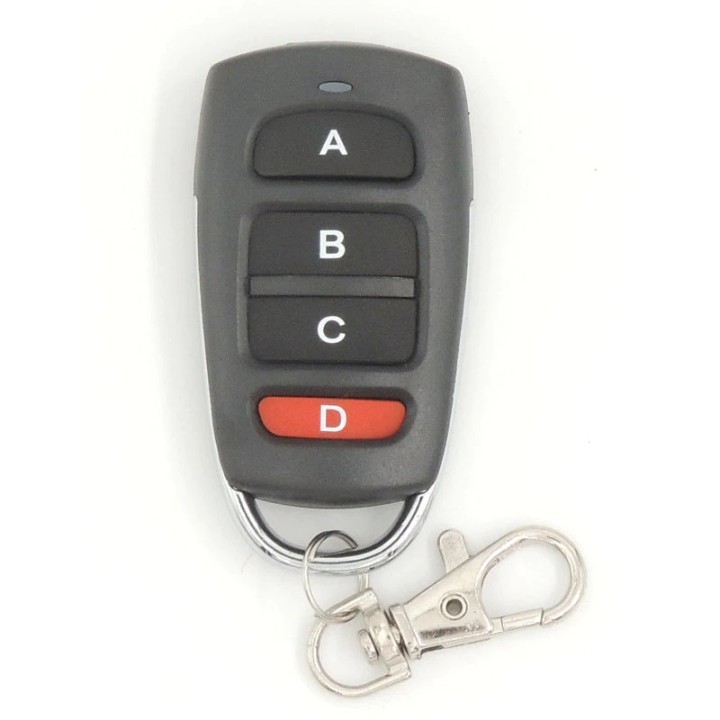

Transmitter:

Channel: 4 CH
Remote Control Distance:0-200 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)
Encode: EV1527
Frequency:315 or 433 MHz
Power Supply: 1 X 12V 23A Battery (NOT included)

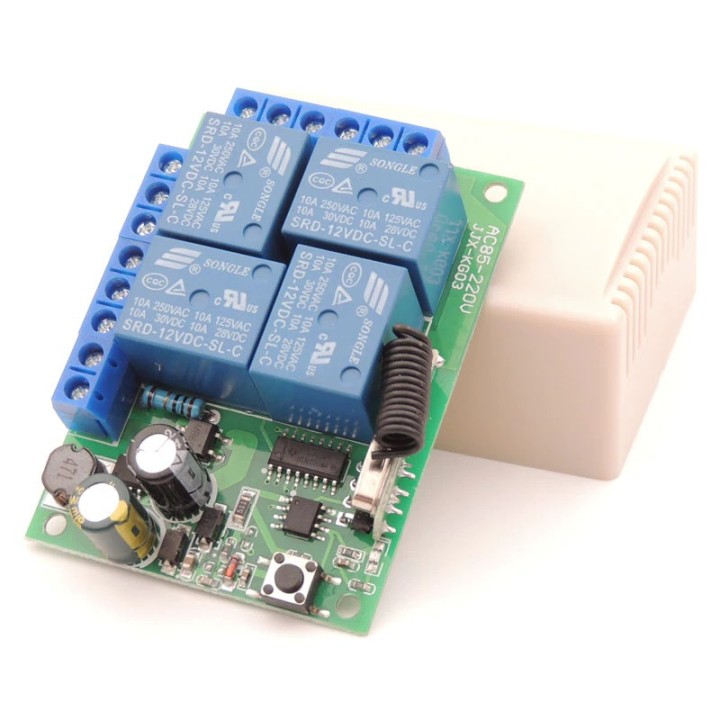

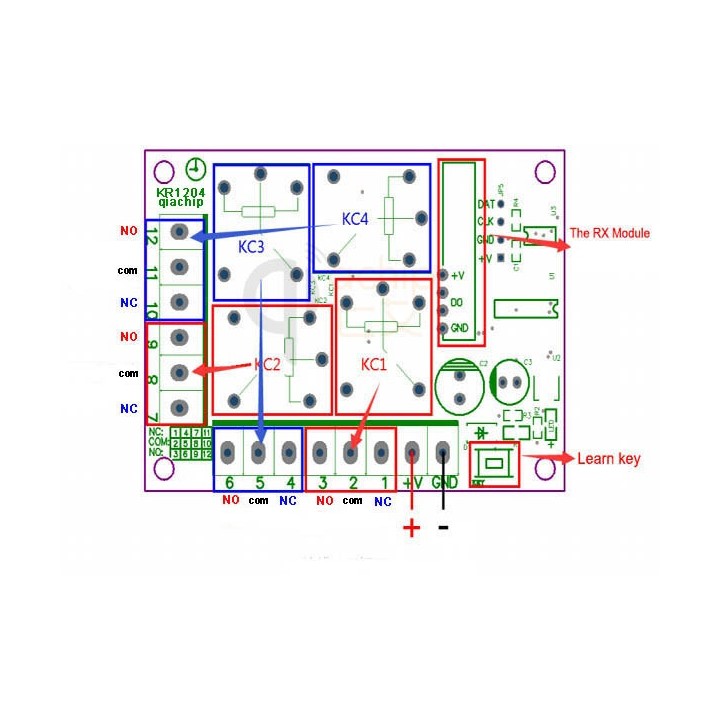

Receiver:

Decode: Learning code,soldering code
Power Supply (Operating Voltage): AC 220V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Current:<=7ma
Sensitivity:-107 dBm
Operating Temperature:-40‘C ~ 80’C
Size:75 mm x 58 mm x 30 mm
Frequency:315 / 433 MHz


Control Mode

1)Toggle/Self-Lock:   Press->On; Press again->Off
Press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock:   Press->On; Press other button->Off
Press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog:   Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )

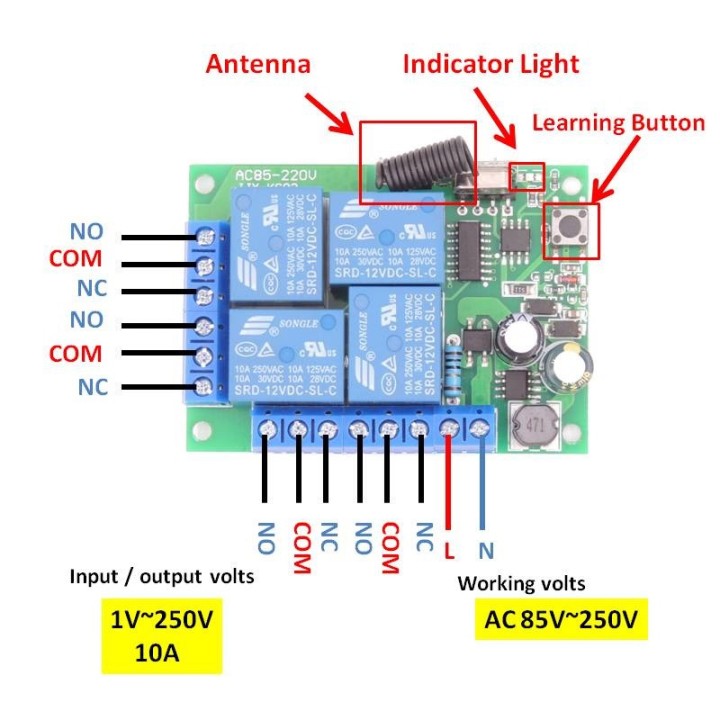

Learn code and Remove Code

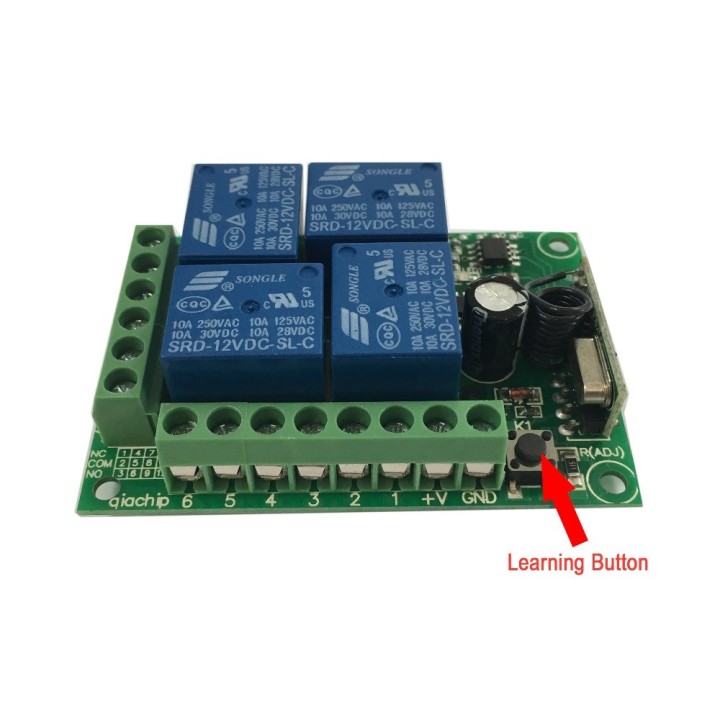

Learn: input the 220V for the receiver,press the learning button then the LED indicator ON and loosen your finger.Then press any key on the transmitter ,the indicator flashs 1 time,it means learning successfully.
Remove:keep pressing the learning button on the receiver about 10 seconds until the indicator turns off,it means the codes are cleared successfully.

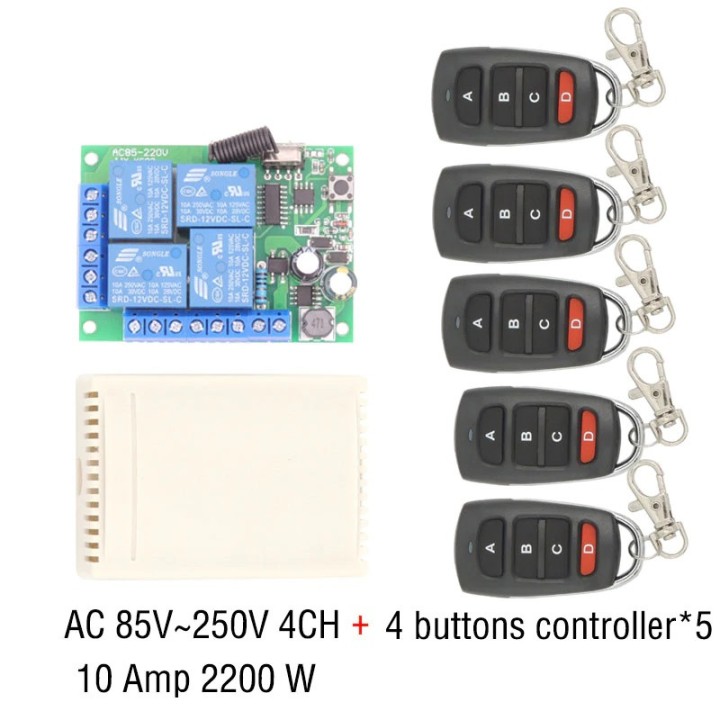

Package Included

1 x Receiver (with cover)
4 X Transmitter
