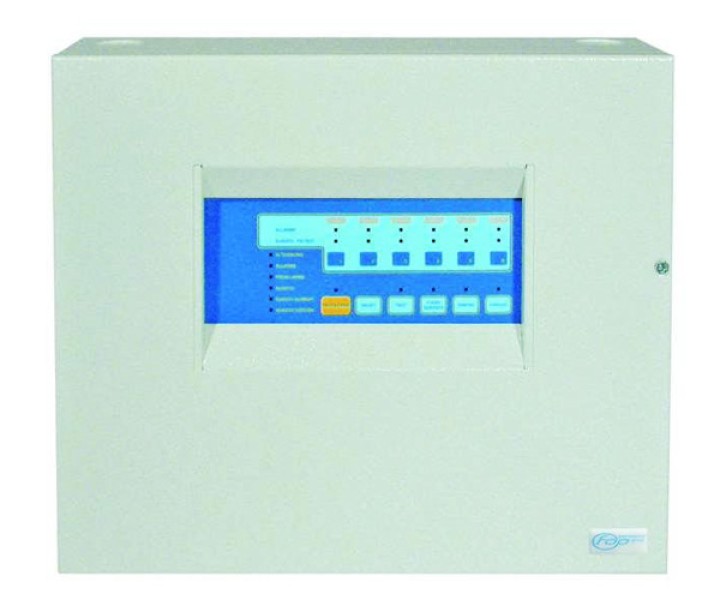

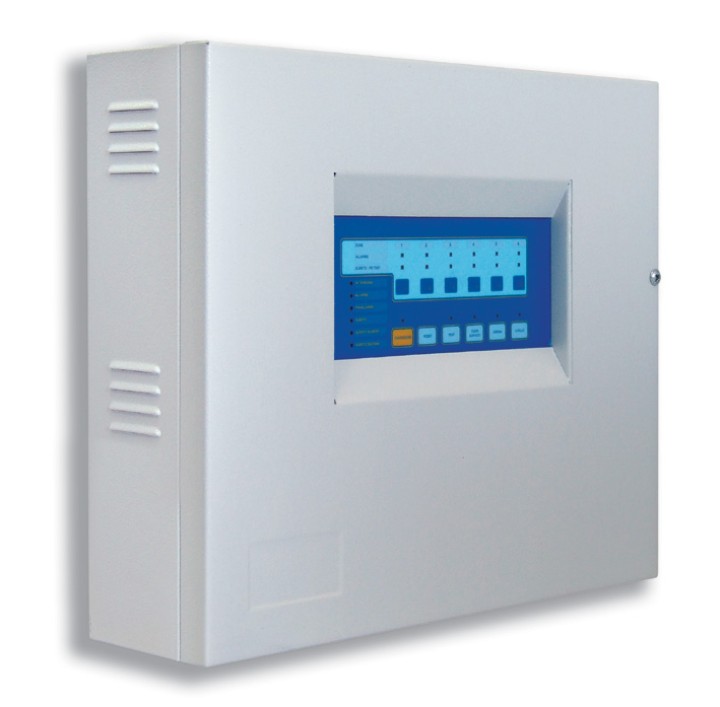

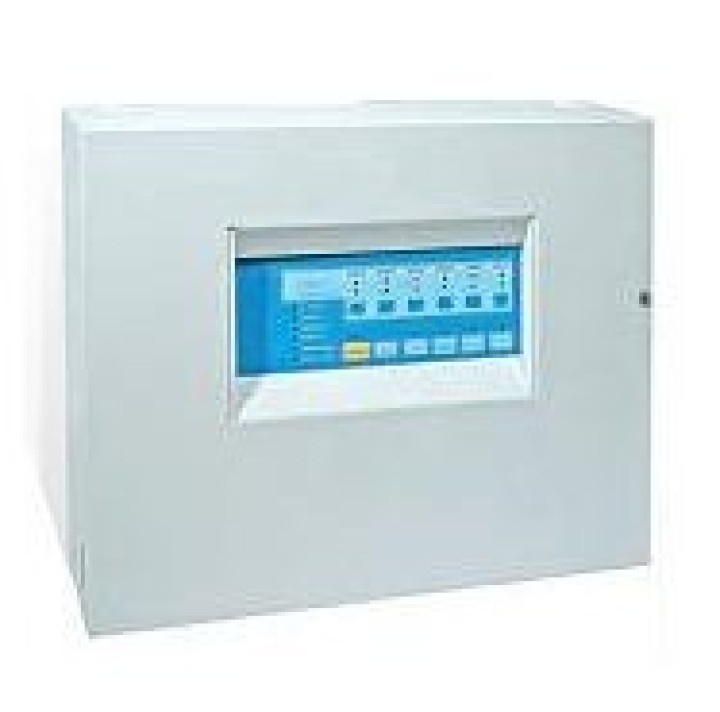

Central Fire Alarm Conventional Fire 6 zone cfn2m areas approved EN54-2

Central Fire conventional microprocessor 6 zones; 1 supervised output for alarm; 1 supervised output for alarm or pre-alarm fire; 1 relay output with 3 contacts (C, NC, NO) alarm; 1 relay output with 3 contacts (C, NC, NO) fault; 2 Open Collector outputs repeat alarm zone; 1 output 24Vdc fixed; programming delays outputs; programming areas mode? Alarm, pre-alarm, test, out of service for maintenance; the metal container can? Stay 2 batteries 12V / 7Ah. EN 54-2, -4 CPD.

CENTRAL FIRE CONVENTIONAL 2 LOOP - FDP INTERNATIONAL CFN2M

Product code: CFN2M

DESCRIPTION

Central Fire conventional microprocessor 2 zones; 2 supervised outputs alarm and pre-alarm fire, two fire alarm and fault relay outputs, 2 outputs Open Collector repeat alarm zone, 1 output 24Vdc.

Programming delayed outputs; programming zones in alarm mode, pre-alarm, test, out of service for maintenance. The container can be fitted with metal jars 2 batteries 12V / 7Ah.

FEATURES

Conventional fire detection control 2 zones
Functional Characteristics:
TEST function facility for testing lines and auxiliary outputs
Protection zones individually excludable
Power supply / battery charger
Complies with EN 54-4
Technical Features:
20 detectors per zone
Pre-alarm and alarm identifiable for each zone
A controlled line for bells:
- 1 supervised alarm output (max.275mA, EOL resistor 10K);
- 1 output pre-alarm / alarm supoervisionata (max.275mA, EOL resistor 10K)
Timing alarm delay up to 120 sec.
Activation via keyboard Password
Number of Zones 2
Detection zones controlled impedance variation 2
Rated supply voltage 230V ~ ± 10% 50Hz
Rated output voltage 24V services
Maximum absorption 1.2A (40VA transformer)
2x12V 7Ah battery compartment (not included)
General reset panel via RESET button and level 3 password
Relay output for "alarm" C / NC / NA / 1A 30V; 0.5A 125V
Fault relay output C / NC / NA / 1A 30V; 0.5A 125V
Alarm outputs open collector 25mA max.
Dimensions (W) 351mm
Dimensions (H) 292mm
Dimensions (D) 95mm

Conforms to:
- EN 54-2 (Directive 89/106 / EEC)
- EN 54-4 (Directive 89/106 / EEC) Certificate: 0068-CPD-007/2008
- EN 55022, EN50130-4 (Directive 89/336 / EEC)
- EN 61000-3-2, EN 61000-3-3 (Directive 89/336 / EEC
- EN60950-1 (Directive 73/23 / EEC)
RoHS compliant 2002/96 / EC
