Dimension 84x95x16mm . Weight 120gr
Sensor wired shutter opening.
Was placed inside the roller shutter box, the wired sensor can trigger the alarm system if a person attempts to lift or pull the shutter.
Technical FEATURES: Type: Sensor wire opening shutter Function: Detection of intrusion

This sensor is a motion detector shutter suspects.

It must be used in conjunction with an analysis circuit (ref. 456C1) or a JA-81M (ref. JA80M) in wireless

In practice, the output wire of the sensor is connected to the input of a detector wired JA-81M door connected by radio alarm Oasis.

False alarms pouraient be caused by the wind moving the flaps are avoided because the JA-81M detector will not trigger the alarm if at least three pulses are received from the sensor in 5 seconds.

Contact output 100 mA / 60V Range of motion 5-260 cm Dimensions 94 x 102 x 17 mm Standard EN 50131-1 III. external protection temperature range 25 to 50 ° C

Works exclusively in conjunction with the closure module (ref. 456C1) to be added. The 456 performs measurements and informs the module. One module is sufficient for several detectors opening shutter.

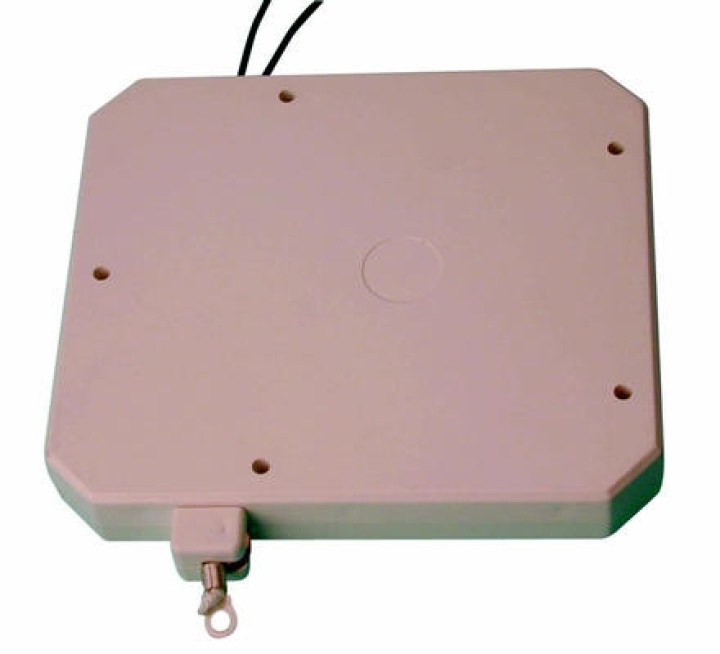

Roller-up shutter contact, in abs

• against: rip, cut and moving of roller-up shutters and portcullis and other devices
• white colour
• extension with bass roll for rope guide: diameter 12mm and length 20mm
• rectangular shape 84x95x16mm
• protection grade IP20
• surface mounting
• 2 wires for switch
• 60cm cable length
• needed electronic board interface, models ST and STP (not included)
