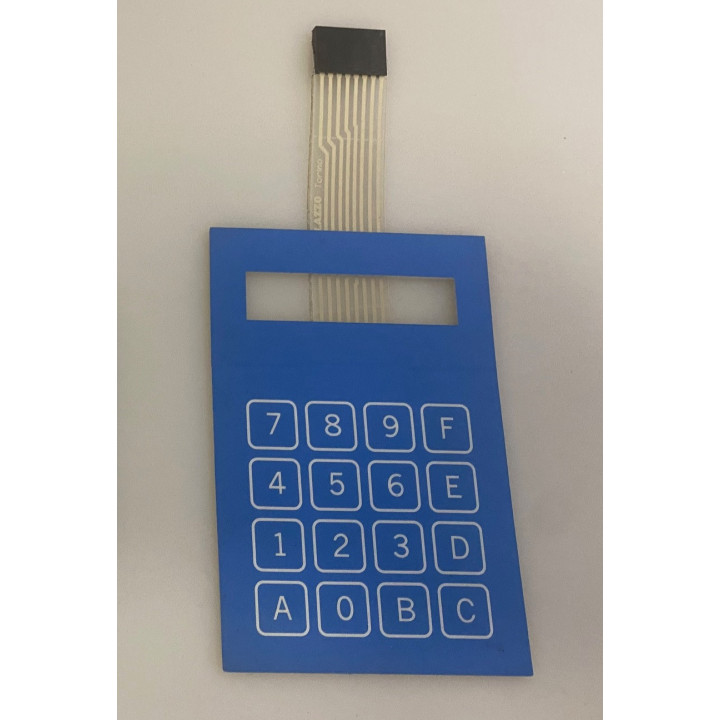

flexible membrane keyboard Switch 16 keys 4x4 8-wire cable coclaslp16t matrix alarm
Relegendable membrane keyboards to personalize
o Tactile effect using metal cups
o Output on a flexible cable with connector with a pitch of 2.54 mm.
TECHNICAL CHARACTERISTICS
Cutting capacity: 500Mw
Max voltage: 50V
Max current: 30Ma
Contact resistance: 1/cm
Mechanical life: 1,000,000 operations
Operating temperature: -25° to +65°
Dielectric strength: 250 V
Dimensions (mm):
- 16 Keys:
80X120MMX1MM
OR
80X80MMX1MM after cutting
