Features applications: for all types of electronic equipment such as telephones, audio instruments, TV sets, VCR's, ... micro-miniature, lightweight snap-in type: suitabl

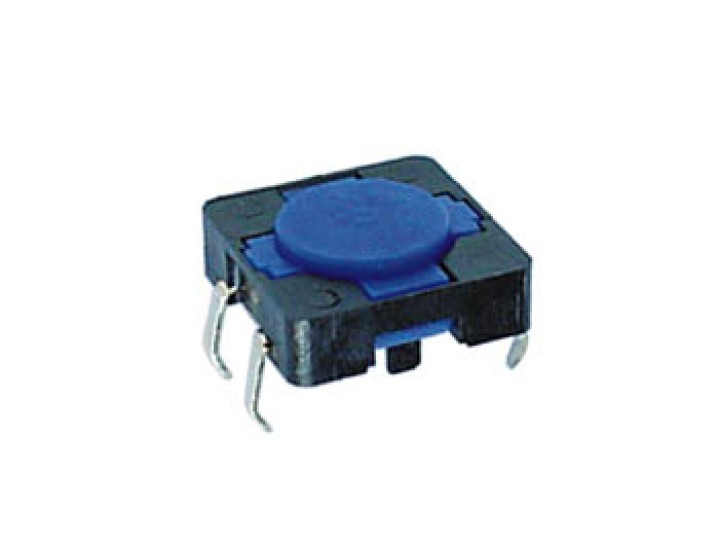

Tactile switch 12x12mm height 4.3mm krs1243
REF : KRS1243
€1.58
Features applications: for all types of electronic equipment such as telephones, audio instruments, TV sets, VCR's, ... micro-miniature, lightweight snap-in type: suitabl
:
1 Item
Emplacement : -()CH SUR COMMANDE
Security policy
Delivery policy
Terms of Sales
Features
applications:
for all types of electronic equipment such as telephones, audio instruments, TV sets, VCR's, ...
micro-miniature, lightweight
snap-in type: suitable for direct PCB mounting
Specifications
dimensions: 12 x 12mm
height: 4.3mm
rating: 12Vdc - 50mA
insulation resistance: > 100Mohm - 250Vdc
withstand voltage: 100Vac 1 minute
contact resistance: < 100mohm
soldering temperature: 255°C for max. 5 seconds
mechanical life: 500000 cycles
electrical life: 300000 cycles
ambient temperature range: -25°C to +70°C
ambient humidity range: < 85% RH
operating force: 130 to 160 ± 30gf
