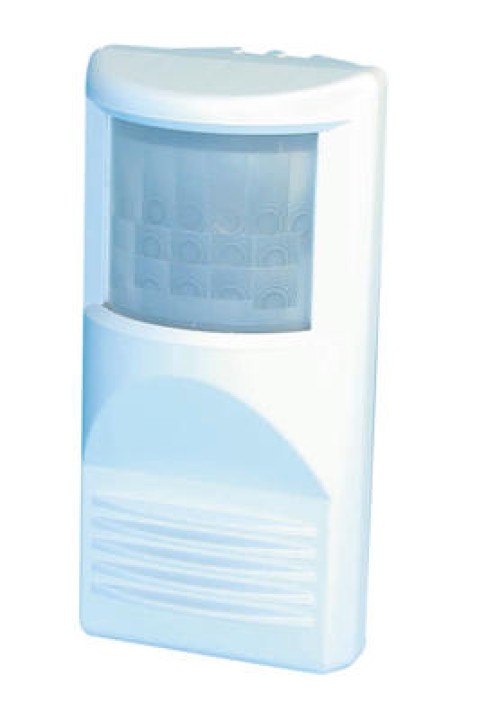

The JA50P wireless indoor motion sensor is a part of the JA-50 wireless alarm system. It detects human (animal) body movement and sends a coded radio signal to the control panel. The JA50P has a high
detection method: dual pyroelectric
passive infrared sensor
detection coverage: 90 degrees to
a distance of 12 meters
operating voltage: 9V battery
operating current: 40uA (stand by)
house code: 8bits
sleeping time between two transmissions: 5min.
transmitting distance: 60m (open area)
working frequency: 433.92MHz
used transmitter: model TX-3 The JA50P wireless indoor motion sensor is a part of the JA-50 wireless alarm system. It detects human (animal) body movement and sends a coded radio signal to the control panel. The JA50P has a high resistance to false alarms. This is because a built in microcontroller makes complete digital analysis of sensor's signals. The sensor has a very low power consumption because of special sleeping software. It also has a built in low battery detector. Tamper protection is also provided. You can use an unlimited number of JA50P detectors in your JA-50 system as you need.
