Keypad electronic wireless electronic alarm keypad for alarm control panel ja60k ja65k, 30 100m 433.92mhz access control keypad

power supply 6 V – 4 AAA alkaline batteries (50 uA)
or 12 V DC / 100 mA power adaptor
battery life time typ. 1 year
number of keypads in a system max. 8 control devices
working range max. 40 m (open area, no interference)
access codes identical with control panel (1 +14)
working environment indoor use , -10 to +40 °C
complies with EN 50131-1 grade 2, EN 300220

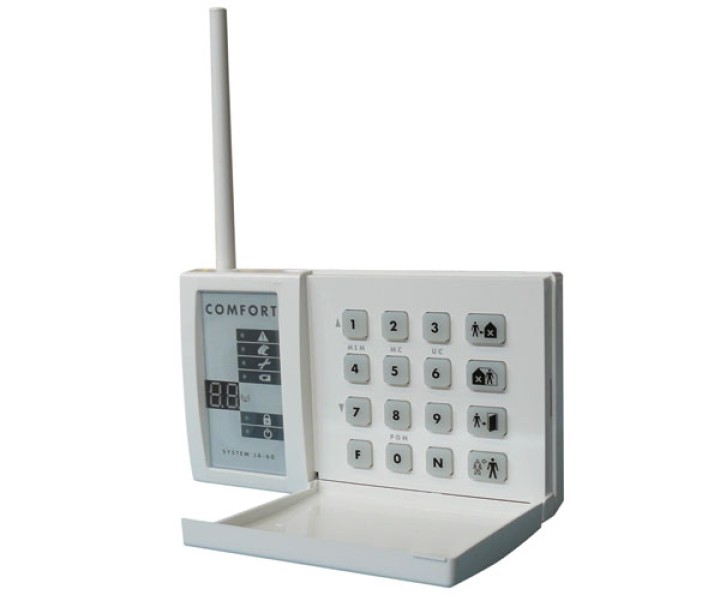

The JA-60F is an optional wireless keypad for the JA-60 or JA-65 series wireless control panel. It can operate the system in exactly the same way as the built-in keypad on the control panel and as the hard wired bus system keypad, JA-60E. The LED indicators, display and built-in buzzer indicate the alarm system’s status.
Multiple keypads and RC-11 remote controllers can be used with a control panel (max. 8 totally). The keypad has a built in tamper sensor and it also checks the number of attempts to enter an access code (5 unsuccessful attempts will trigger a tamper alarm).
The keypad makes regular auto testing and reports its conditions regularly to the system for full supervision.
The JA-60F keypad can be used for control panel programming as well. Being wireless, it can help an installer to monitor the system functions when performing a “walk” test.
