Optical sensor for gate, door, automatic control, durable stainless steel plate with infrared technologyWaterproof Specifications- contact rating: 3A/120VAC/30VDC-

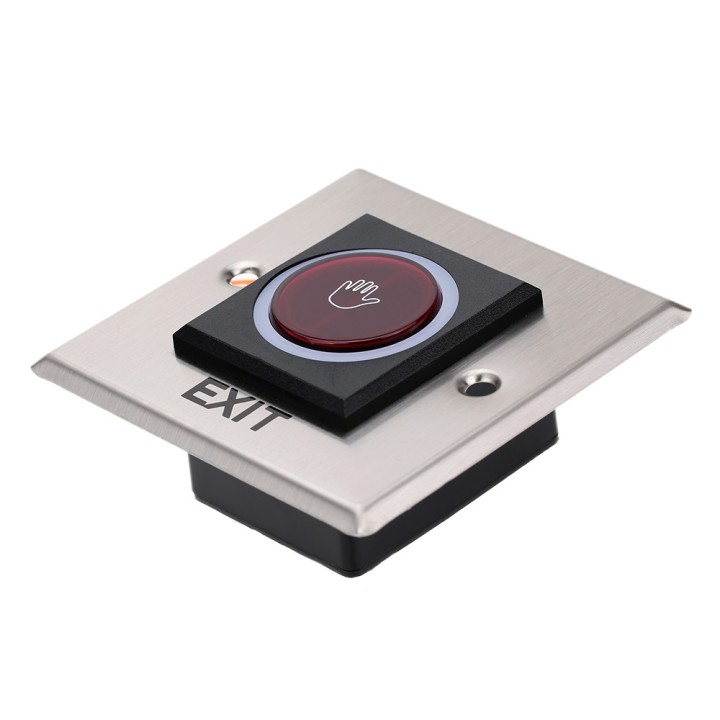

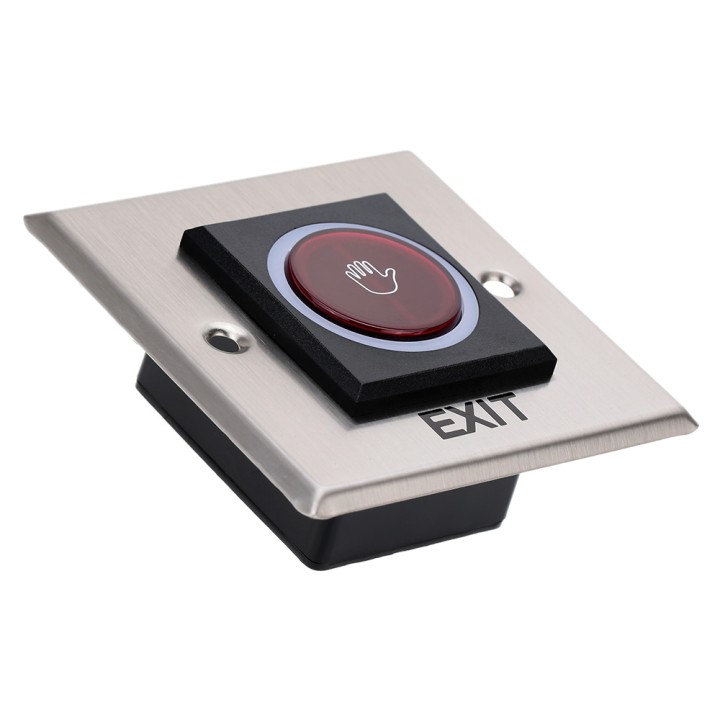

Ip65 waterproof no touch / touch free exit sensor button optical for access control infrared system waterproof
REF : ACNT2
€24.92
Optical sensor for gate, door, automatic control, durable stainless steel plate with infrared technologyWaterproof Specifications- contact rating: 3A/120VAC/30VDC-
: 10 Items
Emplacement : -()R4J3
Security policy
Delivery policy
Terms of Sales
Dimensions: 115 x 70 x 28mm
- weight: 85g
Optical sensor for gate, door, automatic control, durable stainless steel plate with infrared technology
Waterproof
Specifications
- contact rating: 3A/120VAC/30VDC
- lifetime: ± 100 000 actions
- range: 10cm (max.)
- 1 relay output (NO/NC)
- operating temperature: -20°C ~ 55°C
Infrared Sensor Exit Button(Stainless steel).
Dimensions: 86Lx86Wx29H(mm)
Input : DC12V
Contact Rating: 12-28V,3A

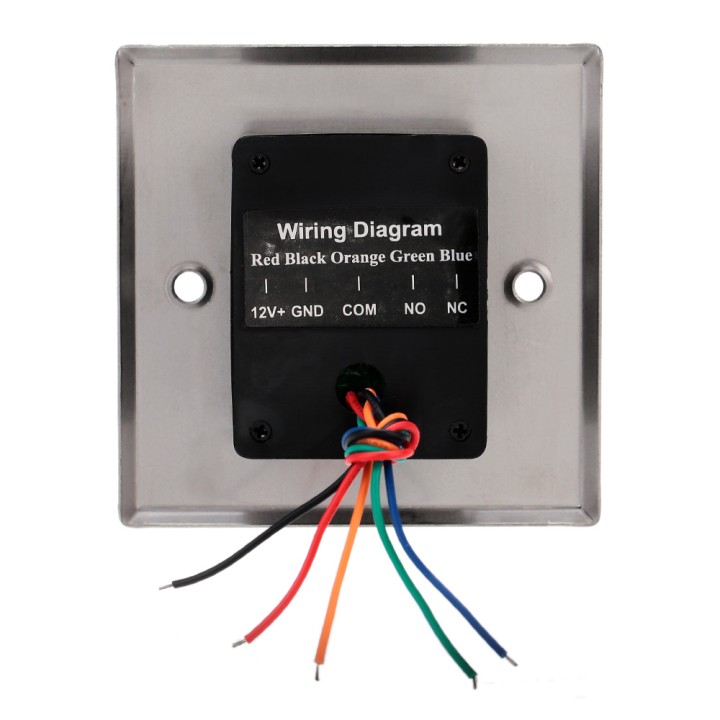

Output Contact: NONCCOM
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Operating temp: -20~+55(14-131F)
Suitable Humidity: 0-95% (non- condensing)
Detection range: 0.1-10cm
LED Indicator:
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation)
Weight: 0.25kg-
- weight: 85g
Optical sensor for gate, door, automatic control, durable stainless steel plate with infrared technology
Waterproof
Specifications
- contact rating: 3A/120VAC/30VDC
- lifetime: ± 100 000 actions
- range: 10cm (max.)
- 1 relay output (NO/NC)
- operating temperature: -20°C ~ 55°C
Infrared Sensor Exit Button(Stainless steel).
Dimensions: 86Lx86Wx29H(mm)
Input : DC12V
Contact Rating: 12-28V,3A
Output Contact: NONCCOM
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Operating temp: -20~+55(14-131F)
Suitable Humidity: 0-95% (non- condensing)
Detection range: 0.1-10cm
LED Indicator:
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation)
Weight: 0.25kg-
