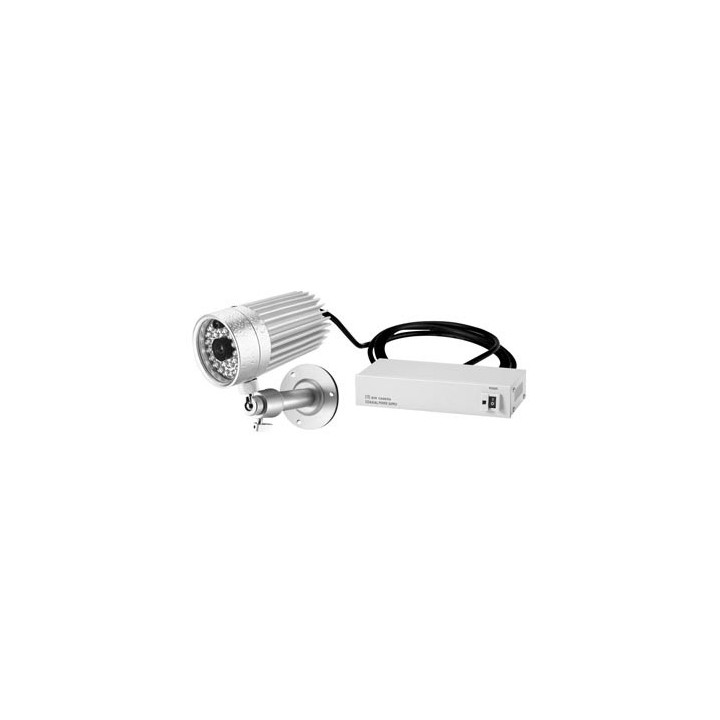

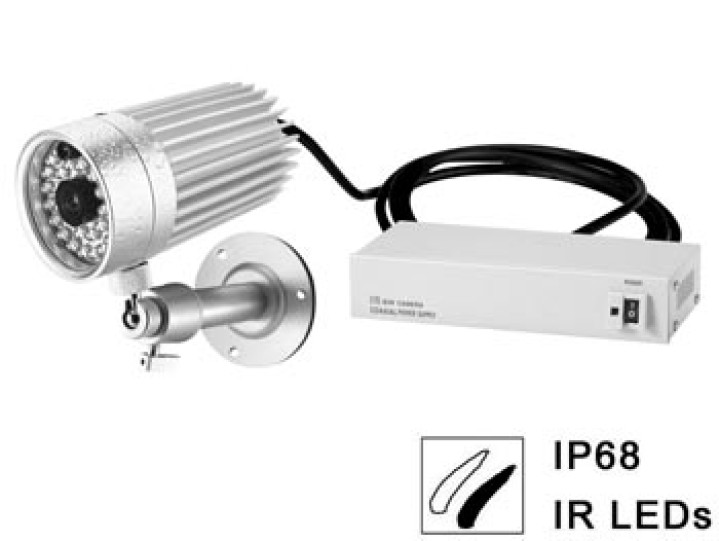

Waterproof 1 3'' ir b w ccd camera with night vision

Features

submersible IR DSP B/W camera for use indoors, outdoors and up to a depth of 30m
automatic CDS control system allows use in the dark
IR lighting is triggered automatically when ambient light is too weak
IR lighting is deactivated automatically in case of normal ambient light
accessories: 30m of RG58U cable, mounting bracket, power supply with coaxial cable


Specifications

pick-up element: ultrasensitive 1/3'' Sony Exview HAD CCD sensor
scanning system: CCIR
effective pixels: 500(H) x 582(V)
resolution: 420 TV lines
min. illumination: 0.01 Lux (IR off) ; 0 Lux (IR on)
light wavelength: 400-580nm IR
number of LEDs: 30
effective range: 20m
IR power on: CDS auto control activates LEDs when ambient light < 10 Lux
IR LEDs: wavelength : 840nm ; angle : 40° ; power : 200mW
synchronisation system: internal sync.
interlace: 2:1 interlace
video output signal: 1.0Vpp, 75 ohm, composite
video S/N ratio: > 52dB (AGC off)
white balance: yes
auto electronic iris (AES): 1/50 - 1/100000sec.
backlight compensation: yes
gamma correction: 0.45
built-in lens: board lens 3.6mm / F2.0
operating environment: temperature : -10°C to +50°C, humidity : < 90%RH
storage environment: temperature : -20°C to +70°C, humidity : < 70%RH
power supply: DC power supplied from coaxial cable
power consumption: 3W
dimensions: 110 x O37mm
weight: 2.4kg
power supply via coax cable:
camera power supply system: DC constant current via coaxial cable
maximum cable length: 300m of RG-59U cable
operating environment: temperature : -15°C to +55°C, humidity : < 90%RH
power consumption: 6W
power supply: AC 230V, 50Hz
dimensions: 106 x 44 x 96mm
weight: 1kg
