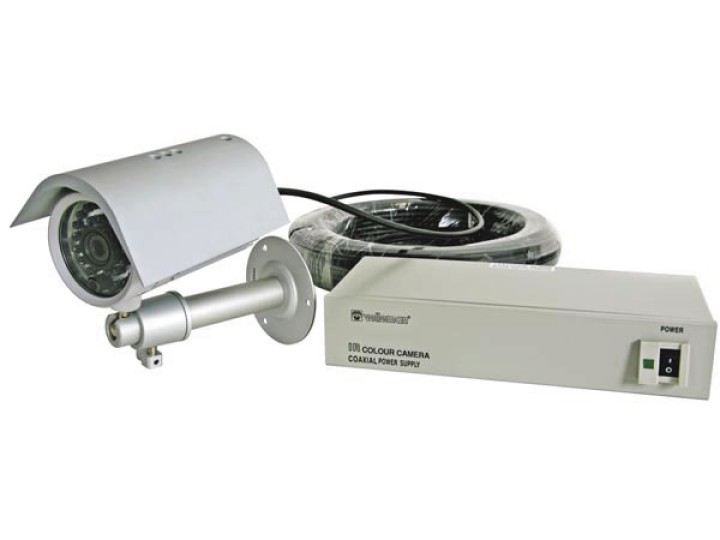

Waterproof 1 3'' ir colour ccd camera with b w night vision

Features

submersible IR DSP colour camera for use indoors, outdoors and up to a depth of 30m
automatic CDS control system allows use in the dark
IR lighting (with B/W night vision) is triggered automatically when ambient light is too weak
IR lighting is deactivated automatically in case of normal ambient light
accessories: 30m of RG58U cable, mounting bracket, power supply with coaxial cable


Specifications

pick-up element: ultrasensitive 1/3'' Sony Exview HAD CCD sensor
scanning system: PAL
effective pixels: 500(H) x 582(V)
resolution: 420 TV lines
min. illumination: 0.05 Lux (IR off) ; 0 Lux (IR on)
light wavelength: 400-850nm IR
number of LEDs: 30
effective range: 20m
IR power on: CDS auto control activates LEDs when ambient light < 10 Lux
IR LEDs: wavelength : 840nm ; angle : 40° ; power : 200mW
synchronisation system: internal sync.
interlace: 2:1 interlace
video output signal: 1.0Vpp, 75 ohm, composite
video S/N ratio: > 52dB (AGC off)
white balance: yes
auto electronic iris (AES): 1/50 - 1/100000sec.
backlight compensation: yes
gamma correction: 0.45
built-in lens: board lens 6.0mm / F2.0
operating environment: temperature : -10°C to +50°C, humidity : < 90%RH
storage environment: temperature : -20°C to +70°C, humidity : < 70%RH
power supply: DC power supplied from coaxial cable
power consumption: 3W
dimensions: 110 x O37mm
weight: 2.4kg
power supply via coax cable:
camera power supply system: DC constant current via coaxial cable
maximum cable length: 300m of RG-59U cable
operating environment: temperature : -15°C to +55°C, humidity : < 90%RH
power consumption: 6W
power supply: AC 230V, 50Hz
dimensions: 106 x 44 x 96mm
weight: 1kg
