K8098

Description

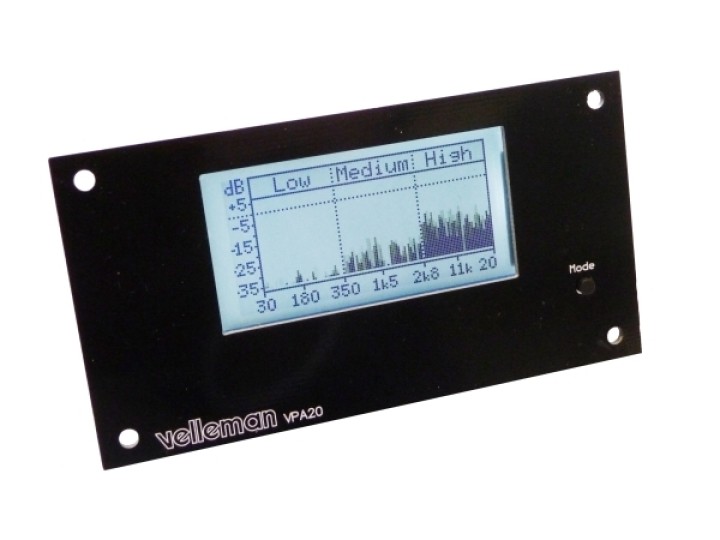

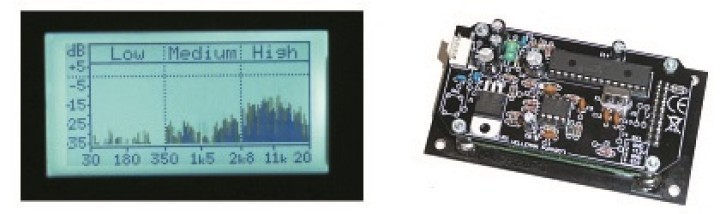

Small and compact unit, ideal for panel mounting.
Give your homemade audio gear a high-tech look. Upgrade existing equipment.
Features

* measure:
o peak power
o RMS power
o mean dB
o peak dB
o linear audio spectrum

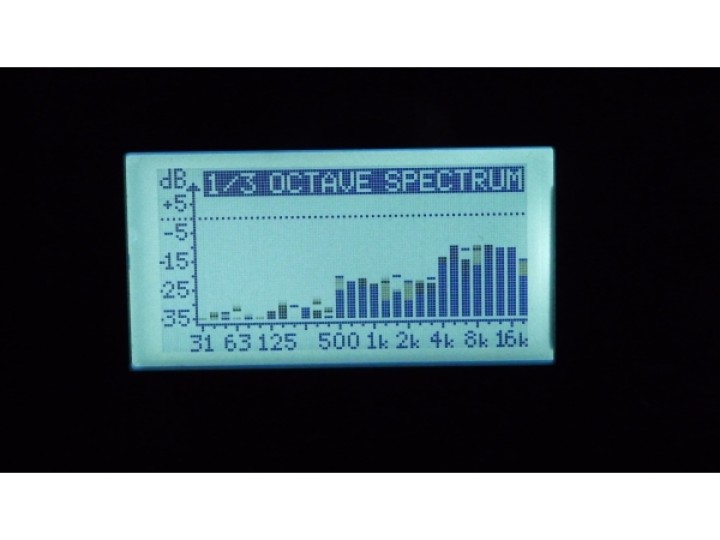

o 1/3 octave audio spectrum
* auto or manual range selection
* peak-hold function
* speaker impedance selection
* language selection
* white backlit LCD

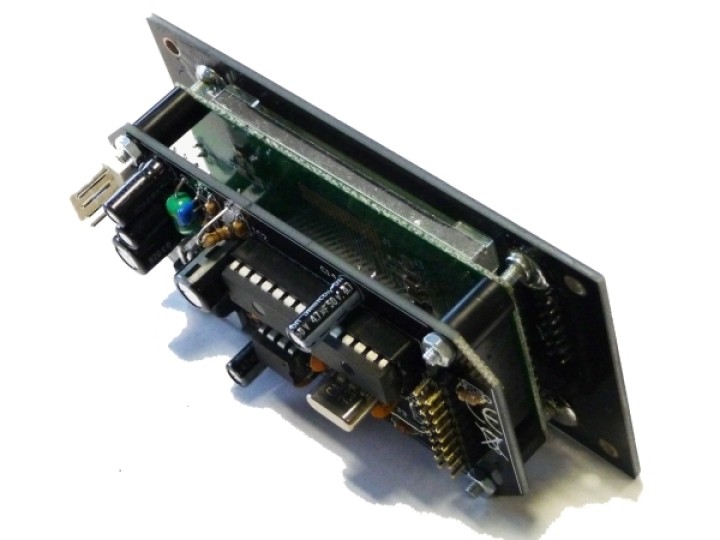

* easy panel mounting

Specifications

* power measurement into 2, 4 or 8 ohms + bridged amp option
* range: 300mW to 1200W @ 2 ohms
* sensitivity: -34dBu (15.5 mVrms)
* max. input level: 50Vrms @ 220k
* frequency range: 20Hz to 20kHz
* power supply: 12VDC / 75mA
* dimensions:
o display: 128 x 64mm / 5 x 2.5' (46 x 24mm / 1.8 x 0.95')
o front panel: 98 x 51mm / 3.8 x 2'
o mounting depth: 35mm / 1.37'

Extras

*

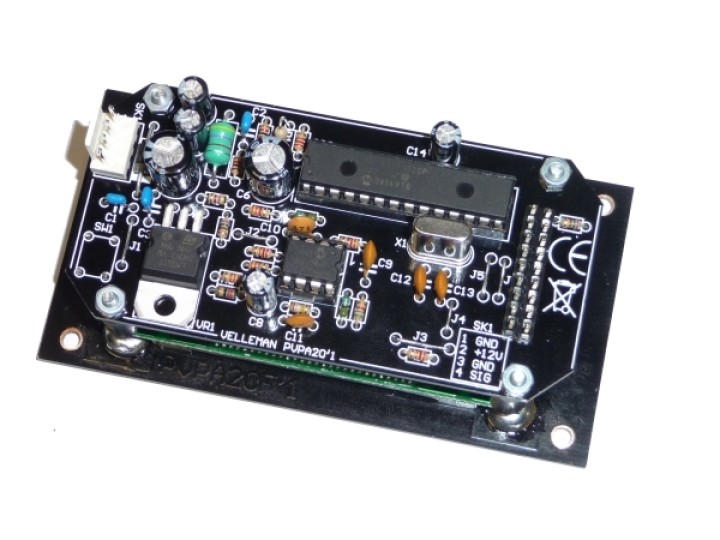

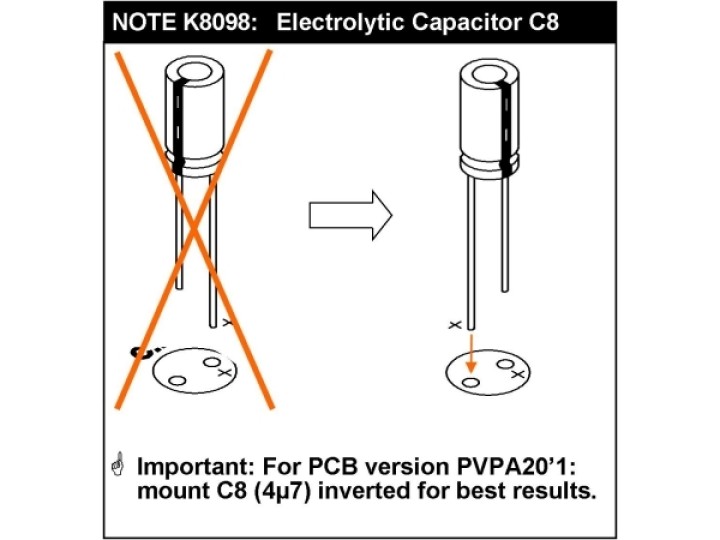

important for PCB version PVPA20'1

mount C8 (4µ7) inverted for best results
