Dimensions 67x40.5x42mm . Weight 40gr

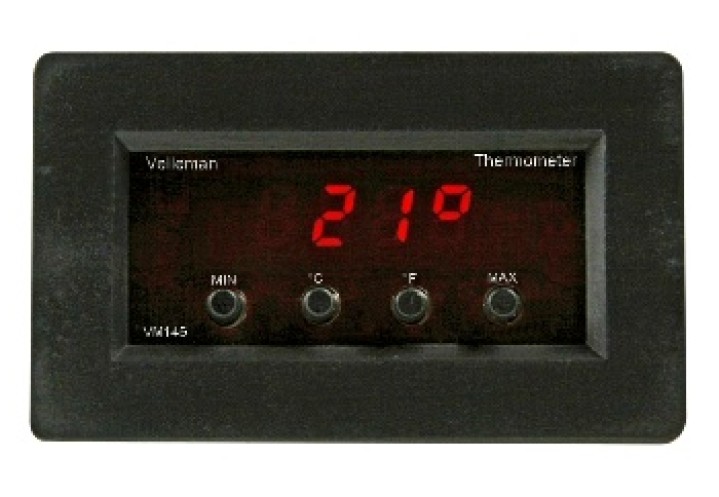

Digital panel thermometer with min/max read-out
Features
- non-volatile memory for minimum and maximum temperature
- bright red LED read-out
- pre-calibrated sensor
- digital communication between sensor and display unit avoids measurement errors
Specifications
- wide power supply range:
o 9 ... 24VDC
o 7 ... 17VAC

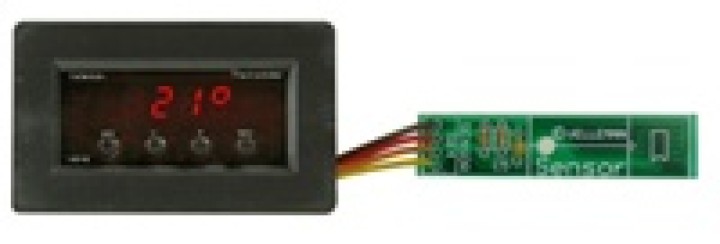

- power and temperature sensor connection via board-to-wire connector (20cm supplied)
- temperature range: -30°C (-22°F) to + 120°C (248°F)
- accuracy:
o room temperature range: + 1°C (2°F)
o full range: + 2°C ( +/- 4°F )
- distance between sensor and display unit: tested up to 10m (33ft)
- current consumption: 40mA maximum
- dimensions:
o panel module: 67 x 40.5 mm. (2.6' x 1.6')
o cut-out: 54 x 37 mm. (2.1' x 1.5')
o sensor: 51 x 11 x 3 mm. (2' x 0.4' x 0.11')
o mounting depth: 42mm.(1.65')
- weight: 40g
