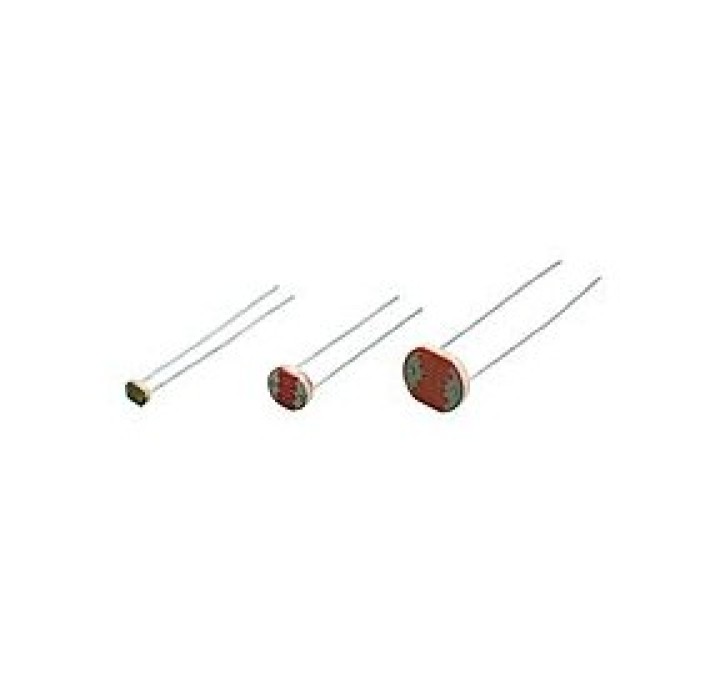

Photoresistor (ldr) 2-20k ldr04 darkness resistance (after 10 sec.):> 2 Mohm
specifications
photoresistor (min - max): 2-20 kohm
dark resistance (after 10 sec.):> 2 Mohm
gamma 10-100 Lux: 0.7
power dissipation max.: 100mW
breakdown voltage max.: 150Vcc
peak spectral response: 540nm
response time (rise): 20ms
Response time (fall): 30ms
Ambient temperature: -35 ° C to +70 ° C
dimensions:
D: 4.0 ± 0.2mm
d: 3.5 ± 0.2mm
H: 35.5 ± 2mm
T: 1.5mm
t: 0.40 ± 0.01mm
W: 2.5 ± 0.2mm
packaging information
Type of packaging: Bulk
Barcode (EAN-13): 5410329295288
