Characteristic (s) of the product:HE10 male connector straight with lock pin 0.64 mm and 2.54 mm.- Brand Antelec,- 16 points- 2 rows spaced 2.54 mm contacts- Model with locks 11,10 mm

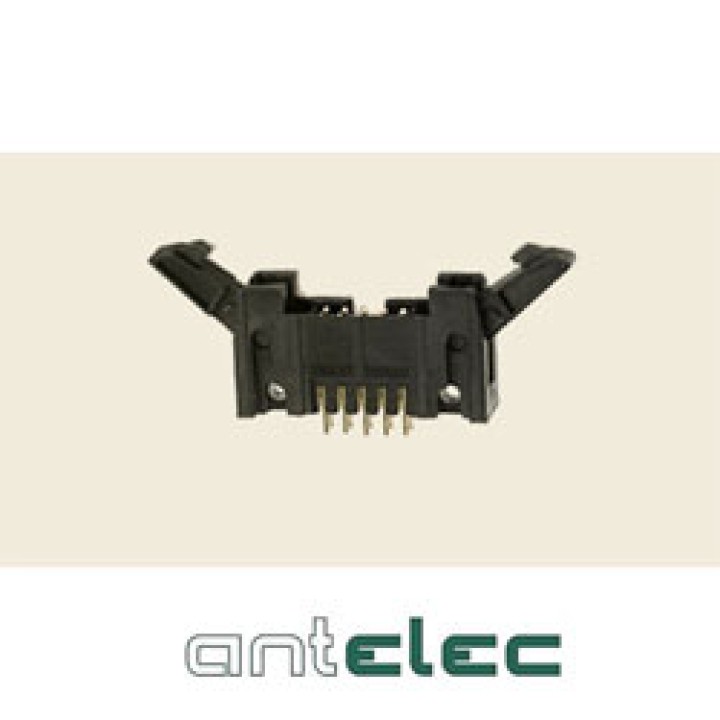

Connector antelec ctm-16-ds-dl male he10 right locking pin 0.64 mm 2.54 mm
REF : COANCTM16DSDL
€0.87
Characteristic (s) of the product:HE10 male connector straight with lock pin 0.64 mm and 2.54 mm.- Brand Antelec,- 16 points- 2 rows spaced 2.54 mm contacts- Model with locks 11,10 mm
: 25 Items
Emplacement : CH
Security policy
Delivery policy
Terms of Sales
Characteristic (s) of the product:
HE10 male connector straight with lock pin 0.64 mm and 2.54 mm.
- Brand Antelec,
- 16 points
- 2 rows spaced 2.54 mm contacts
- Model with locks 11,10 mm anti-traction
- Current rating 3A,
- Dielectric Attire: 100V AC for 1 minute,
- Insulation resistance:> 5000 MOhm,
- Contact resistance: <10 mOhm,
- Temperature range: -40 ° C to +105 ° C,
- Temperature solder max: 260 ° C for 5 seconds
- Contacts: brass,
- Finish: gold,
- Insulation: PCT, UL94V-0
- Pins diameter 0.64 mm.
- Compliance Rohs.
Reference Antelec: CTM-16-DS-D-L
