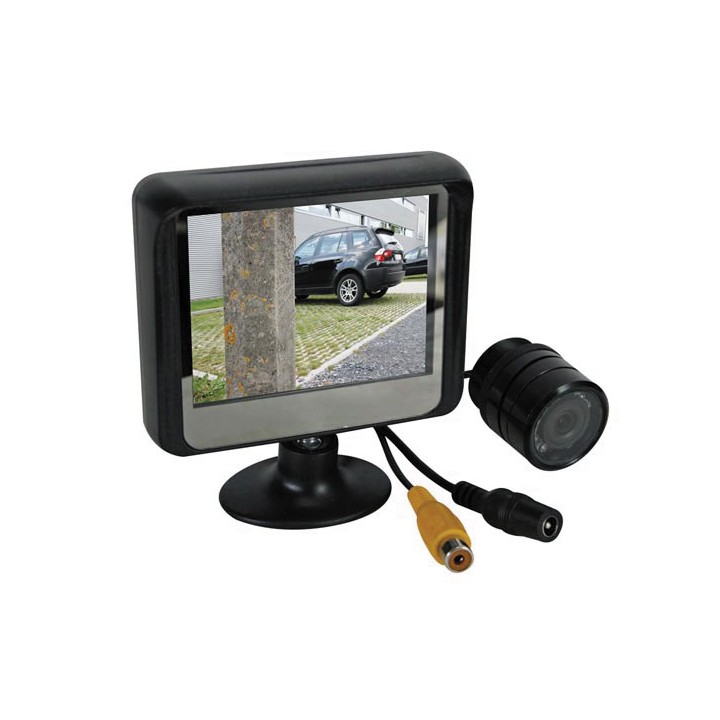

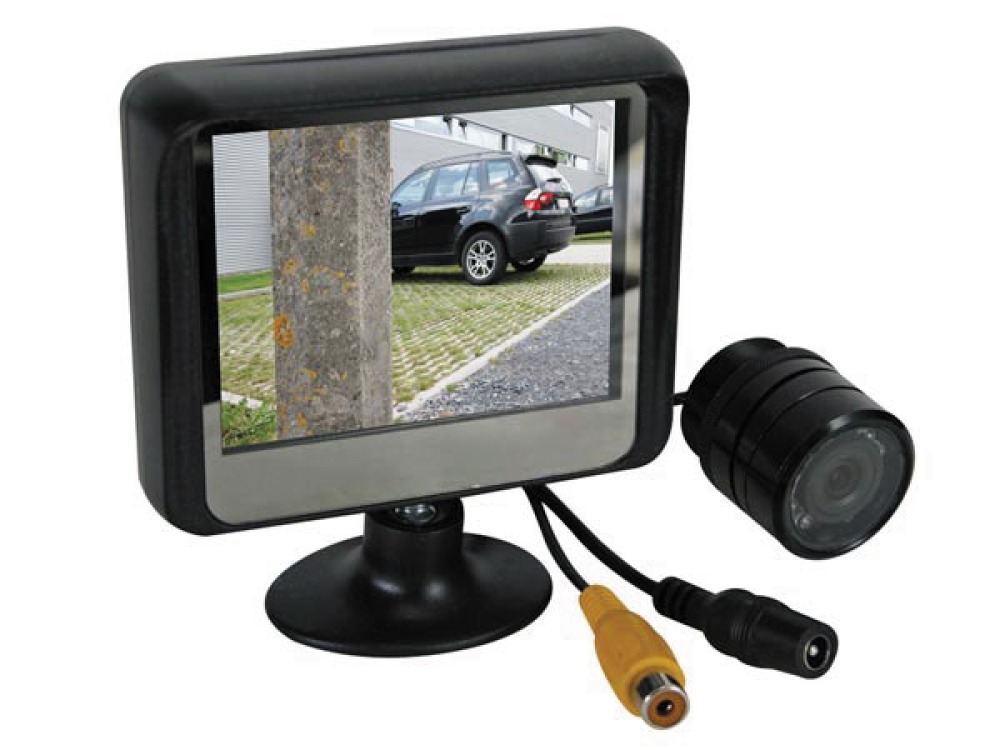

Backing camera with colour display

Dimensions monitor: 95x100x30mm, camera: O28x38mm. Weight: 630gr
Features

* compact 3.5' high-resolution TFT screen
* camera with IR LEDs
* camera set comes with installation material included
o different mounting nuts for the camera
o drill for installing the camera in a bumper

Specifications

* system: PAL
* monitor:
o size: 3.5' TFT
o number of pixels: 320(H) x240(V)
* camera:
o pick-up element: 1/4' colour CMOS
o synchronization: internal
o video output: mirror image
o horizontal resolution: 380 TV-lines
o effective pixels: 628(H) x 582(V) -PAL-
o IR LEDs: 9
o min. illumination: 3 Lux/F1.2 (0 Lux when IR on)
o lens angle: 120°
o S/N ratio: >= 48dB
* video input signal: 1.0Vpp composite video signal at 75 ohm
* A/V input connections: RCA connector
* power supply: DC 12V ±3V / 1.5W
* cable: 1x video (±5m), 2x power (±2m)
* operating temperature: -10°C ~ +50°C
* storage temperature: -20°C ~ +60°C
* dimensions:
o monitor: 95 x 100 x 30mm
o camera: 28 x 38mm
* weight:
o monitor: ±120g
o camera: ±65g
o total: ±630g
