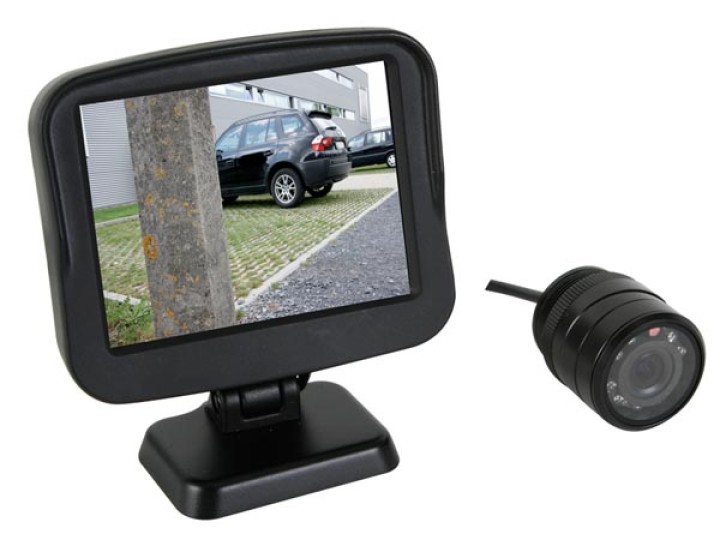

Build in backing camera with colour display

Features

compact 3.5' high-resolution TFT screen
camera with IR LEDs
camera set comes with installation material included
different mounting nuts for the camera
drill for installing the camera in a bumper

Specifications

system: NTSC
monitor:
size: 3.5' TFT
number of pixels: 480(H) x 320(V)
video inputs: 1
camera:
pick-up element: 1/4' colour CMOS
synchronization: internal
video output: mirror image
horizontal resolution: 420 TV-lines
IR LEDs: 9
min. illumination: 0 Lux when IR on
lens angle: 120°
S/N ratio: >= 48dB
video input signal: 1.0Vpp composite video signal at 75 ohm
A/V input connections: RCA connector
power supply: DC 12V ±1.5V
max. current: 300mA
cable: 1x monitor cable (±2m), 1x power cable (±1.5m), 1x video cable (±6m), 1x camera cable (±1.5m)
operating temperature: -20°C ~ +60°C
dimensions:
monitor: 93 x 102 x 45mm
camera: 31 x 31 x 35mm
weight:
monitor: ±120g
camera: ±60g
