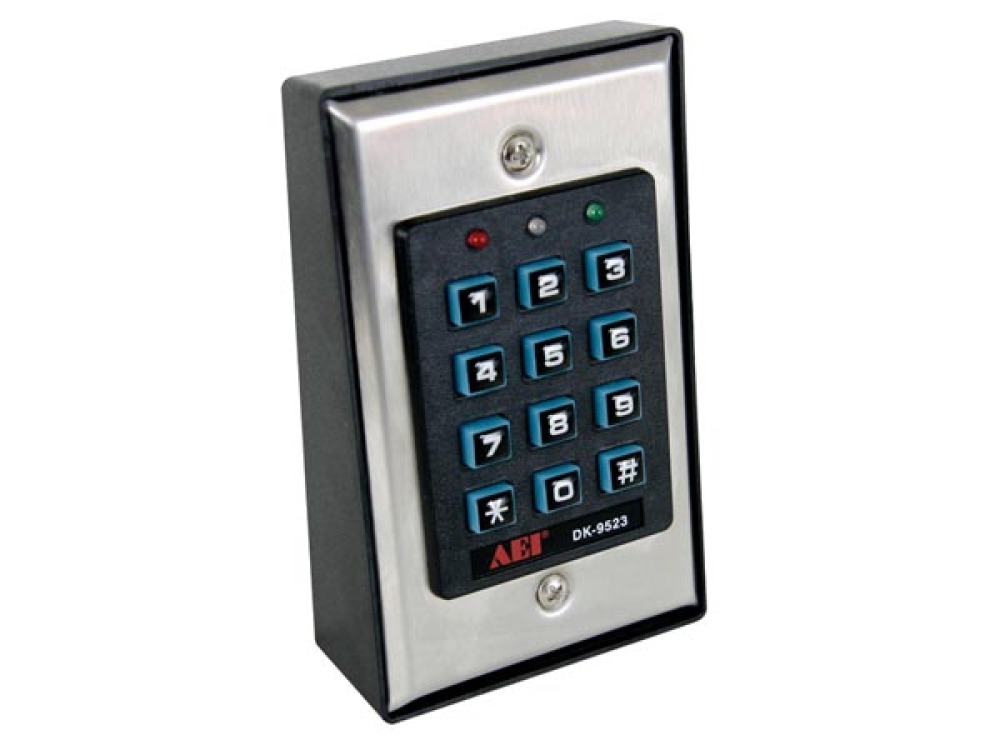

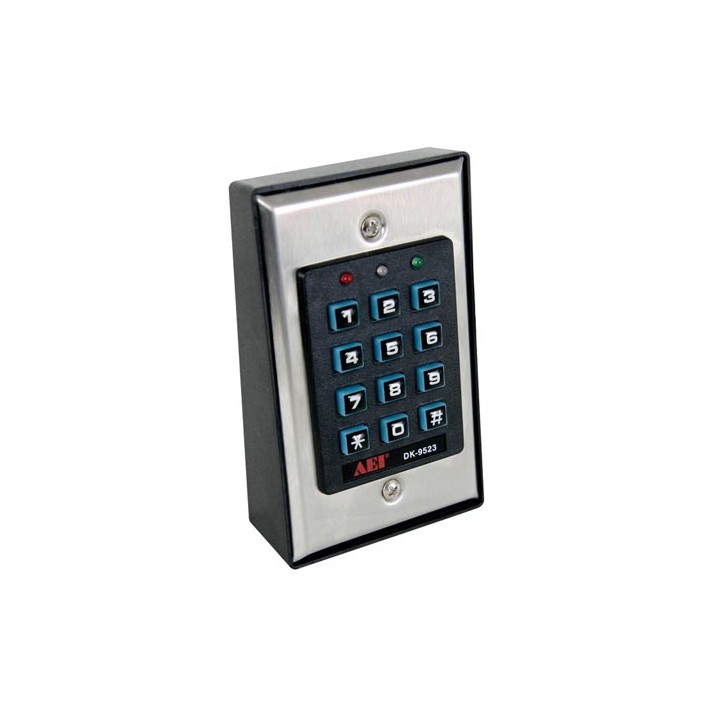

The HAA85BLN is a self-contained digital access keypad designed for residential and commercial installations. It is mainly for stand alone electric lock and inter-lock systems operating with 12 VDC power supply. It is virtually compatible with any electric locking device. Apart from that it is also a perfect choice for controlling security systems, automatic operators and machinery.
Features

backlit keyboard: dim in stand-by, brightens for 10 seconds at the press of a key

Specifications

outputs:
output 1: 5A, N.C. & N.O. dry contacts, 30Vdc max
output 2: 1A, N.C. & N.O. dry contacts, 30Vdc max
output 3: NPN transistor open collector output for aux. control purposes
3 LED lamps showing external system status
interlock facility: yes
output 1 locking control: yes
door propped-up warning: yes
auto or manual code entry: yes
relay activation announcment: yes
pacifier tone on/off options: yes
key activation output: yes
door auto relock: yes
alarm output: yes
duress output: yes
with onboard LED indication for showing keypad operation status
operating voltage: 12-24 V (AC or DC)
duress output: NPN transistor with open collector output, switches to ground (-) when activated, 100mA/25VDC max
available codes: user1 & 2, super user, master, duress and accelerated codes
code combinations: 111.110.000
dimensions: 117 x 72 x 42 mm
weight: 180 g
user manual: English
