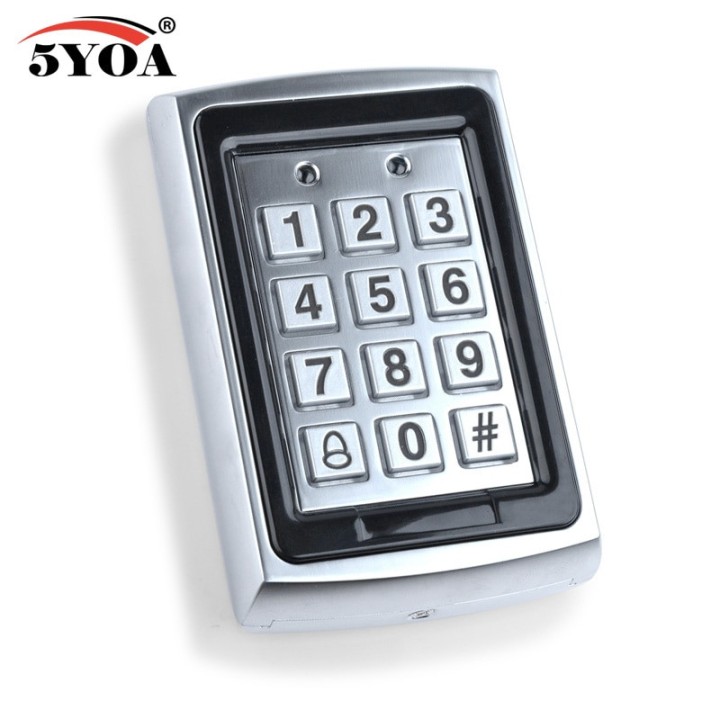

Waterproof Rfid Access Control Keypad for 1000 Users Card Reader Keypad Key Fobs Door Control System 125khz

Features:

        High quality and high security
        Metallic case for better protection
        Support 1000 standard users

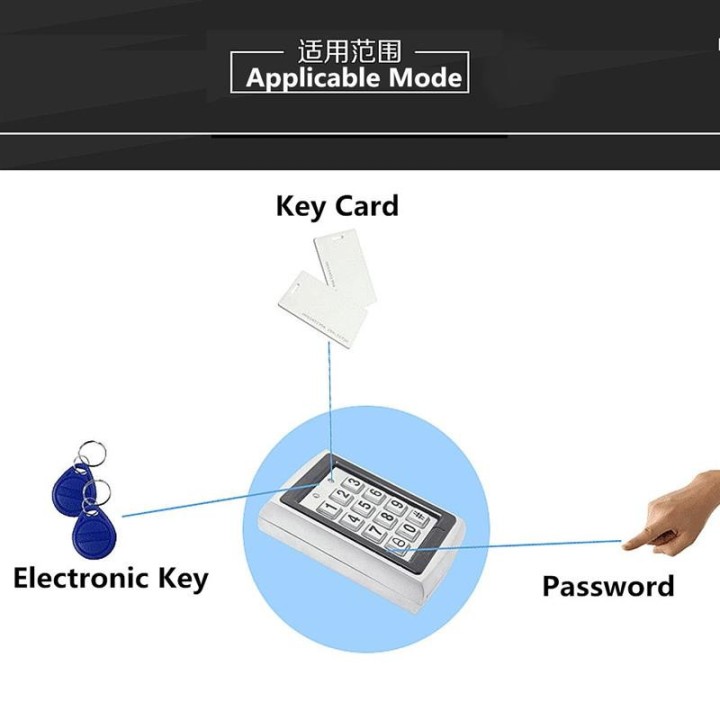

        Support entry modes : Password Only / ID Card Only / Password + ID Card
        Can add card number and delete card number as your requirement
        Classical appearance with useful function
        Alarm function

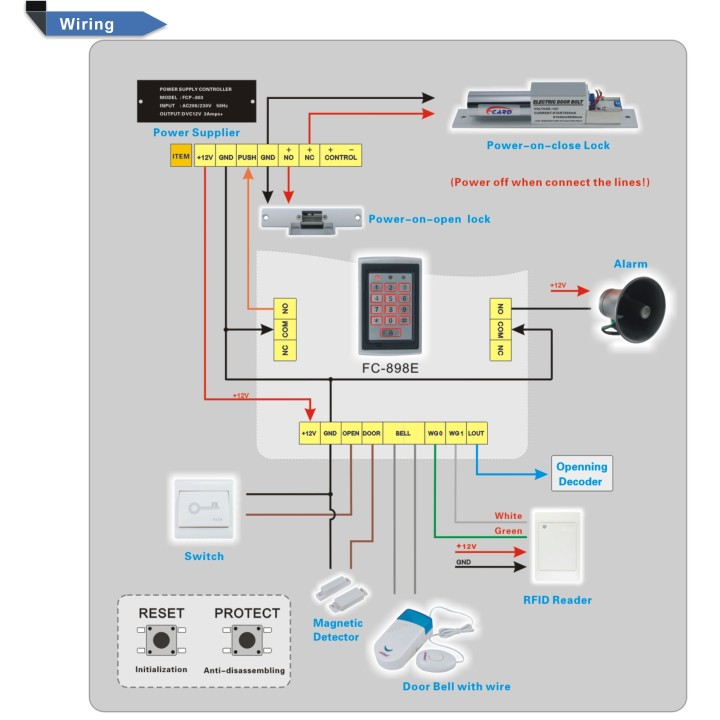

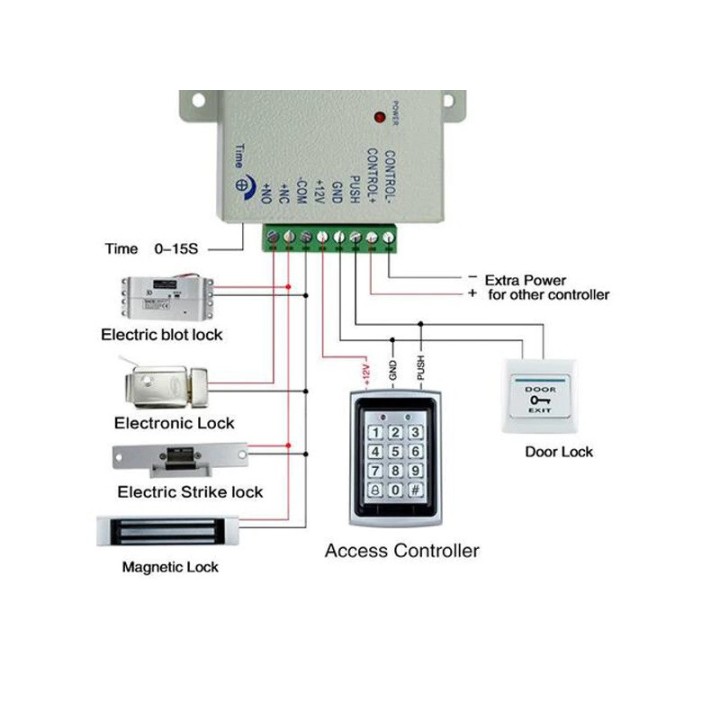

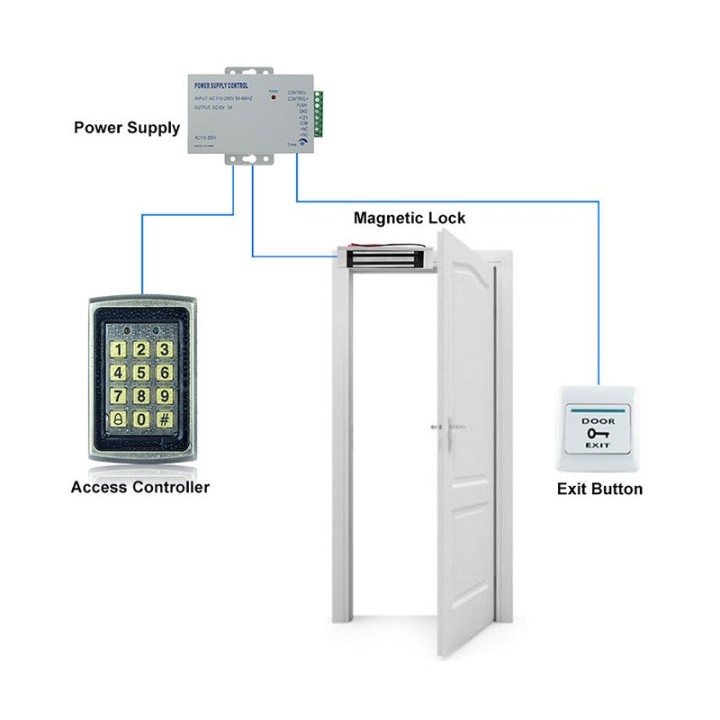

        With lock relay output, secure / normal Mode, NO / NC output
        Built-in bell button can connect a external bell
        Designed for home and office
        Built-in proximity card reader (125KHZ ASK modulation)
        Built-in keypad for PIN code entry
        Sensitively and response quickly
        Auxiliary input & auxiliary output
        8 Auxiliary Modes including : door ajar, forced door, shunt, door monitor, normal / secure
        Internal buzzer
        2 status / programming interface LED'S
        2 modes of operation : normal mode, secure mode
        3 user levers : normal user, secure user, master user
        Code search feature that helps make maintaining user codes easier
        Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies
        Programmable siren time
        Programmable lock strike release time

Specifications:
Input Voltage : DC 12 ~ 18V
Input Current : - Standby : 40mA (not including attached devices)
- Max : 130mA (not including attached devices)
Frequency : 125kHz
Read range : 65mm
Modulation : ASK at 125kHz
Compatible Cards : ALL 26-bit EM cards
Operation Temperature : 0°C ~ 63°C
Dimension :  - Approx. 76 (W) x 120 (H) x 27 (D) mm
- Approx. 3? (W) x 4-3/4? (H) x 1? (D) inch
Net Weight : Approx. 450g
Lock Strike Relay : 5A
Auxiliary Relay : 5A
LockStrike Control Output : Collector open output (25mA)
Auxiliary Control Output : Collector open output (25mA)
REX : N.O., dry contact
Auxiliary Input (In / Monitor) : N.C., dry contact in
Monitor Mode : N.O., dry contact input mode
Package Included:

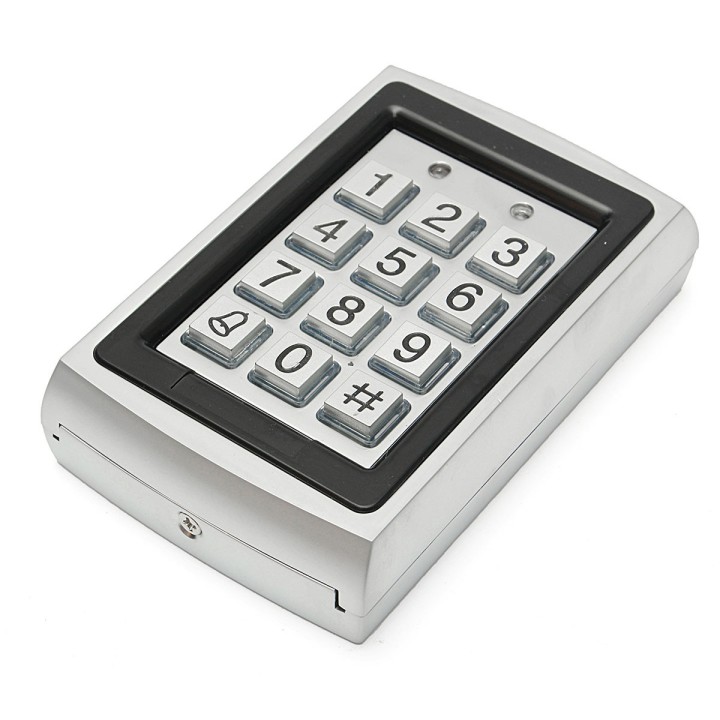

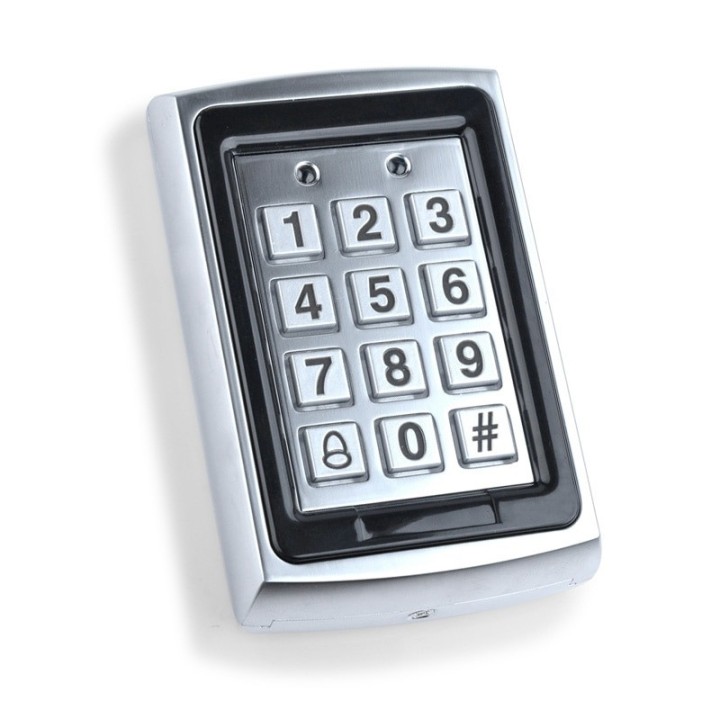

    1  x Metal Door Access Control RFID Reader with Keypad
    1  x User Manual
    Option : 10 x rfid keys (if need customize the color, please leave message to tell us, otherwise, we will send by random)
    Option : Cover to be more suitable for outside and waterproof
