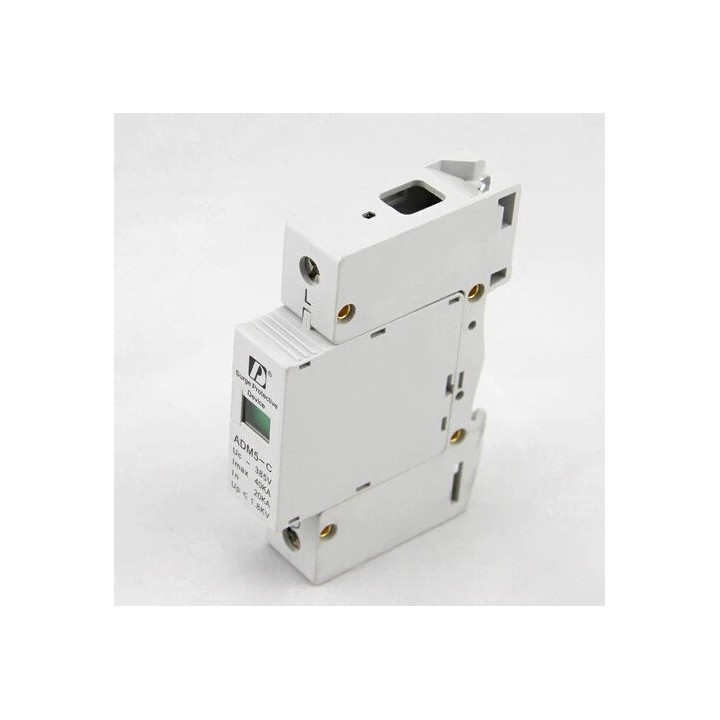

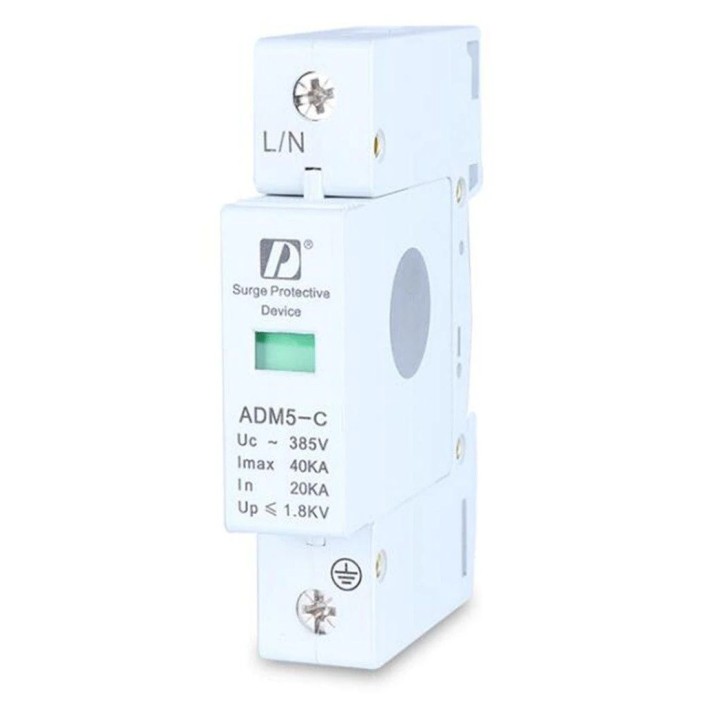

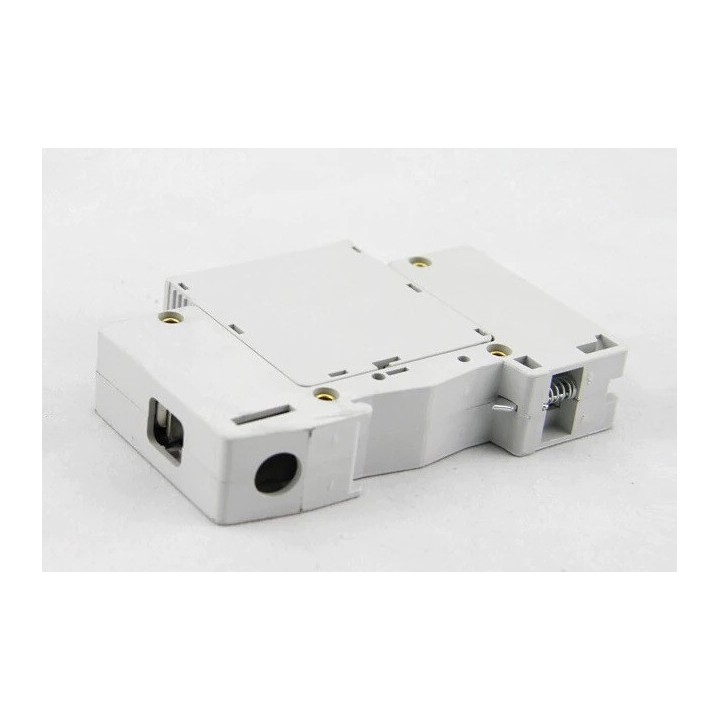

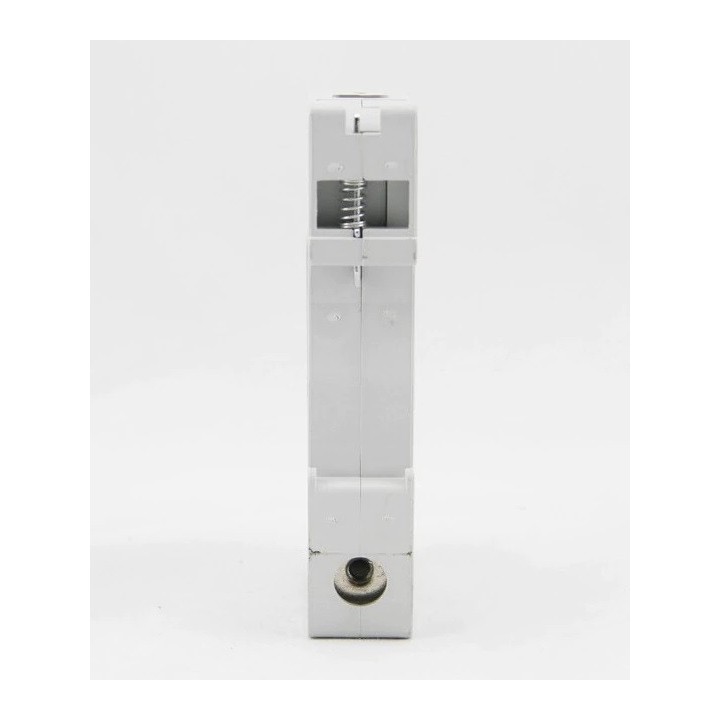

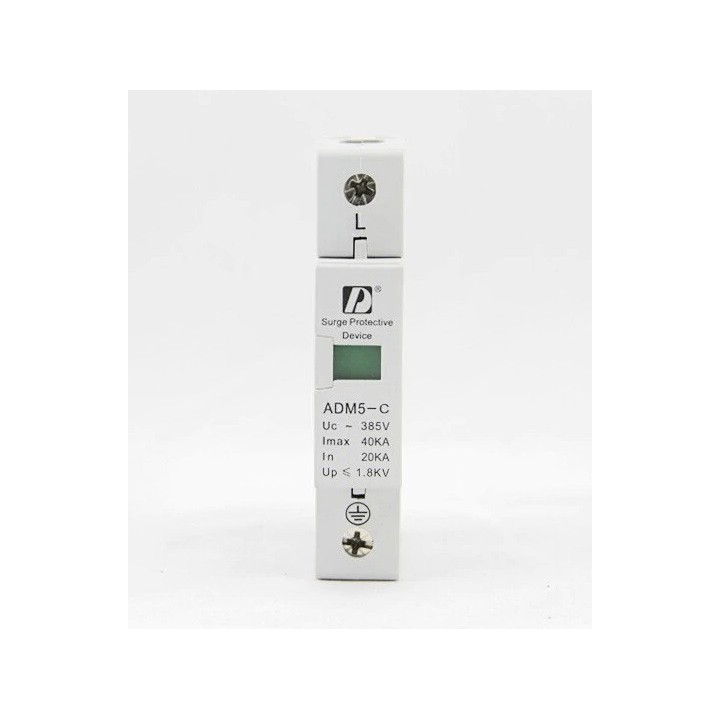

1pcs/lot 1P 40KA 110V 220V 380V AC Din Rail SPD Anti-lightning Voltage Surge Protector Device

1pcs/lot 1P 40KA 110V 220V 380V AC Din Rail SPD Anti-lightning Voltage Surge Protector Device

Application:  1P L 40KA
1. AC 380V/220V/110V,Widely used in sub-distribution box
2. Green/Red window color showing working status,green=normal ,red=abnormal.
3.Maximum continuous operating voltage Uc(V):  385V AC
4.Voltage protection level up(KV):                         =1.5KV
5.Nominal discharge current In(8/20µs)KA:           20kA
6.Maximum discharge current Imax(8/20µs)KA:    40kA
7.Response times(ns):                                           <25 ns
8.Test standard:                       GB18802.1   IEC61643-1
9.Operating environment°C:                          -40°C~85°C
10.Relative humudity(25°C):                                    =95%

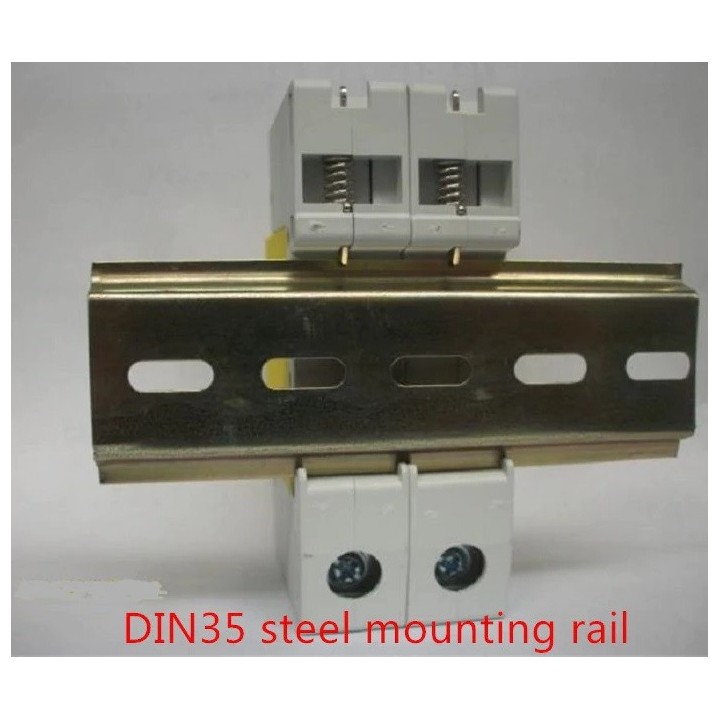

11.Installation:                                      Standard rail 35mm
12.Material of outer covering:   Fiber glass reinforced plastic
