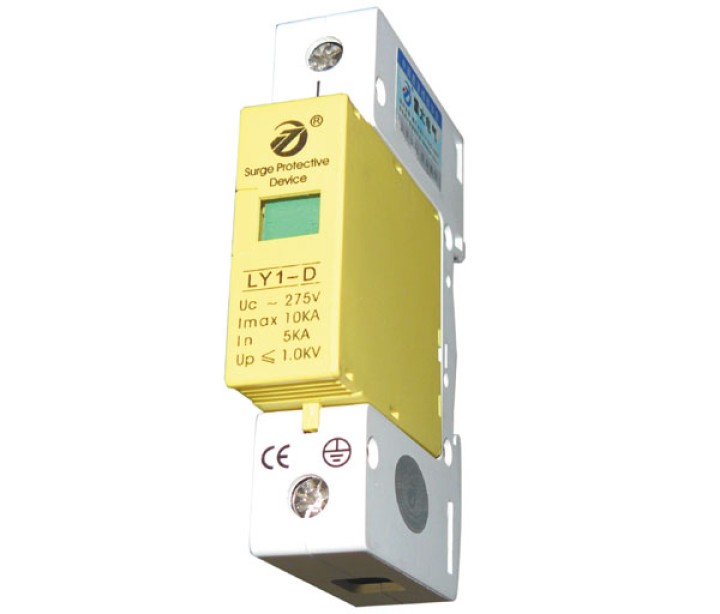

Surge electric 275v 220v din rail 1 pole surge arrester type 3 10ka ly1 d10 1p

1P 10KA 385V AC House Low-voltage Lightning arrester Surge protection Device

​

Application:

1. AC 380V/220V/110V,Widely used in sub-distribution box

2. Green/Red window color showing working status,green=normal ,red=abnormal.

3.Maximum continuous operating voltage Uc(V):  385V AC

4.Voltage protection level up(KV):                         ≤1.2KV

5.Nominal discharge current In(8/20μs)KA:          5kA

6.Maximum discharge current Imax(8/20μs)KA:   10kA

7.Response times(ns):                                           <25 ns

8.Test standard:                       GB18802.1   IEC61643-1

9.Operating environment°C:                          -40°C~85°C

10.Relative humudity(25°C):                                    ≤95%

11.Installation:                                      Standard rail 35mm

12.Material of outer covering:   Fiber glass reinforced plastic
