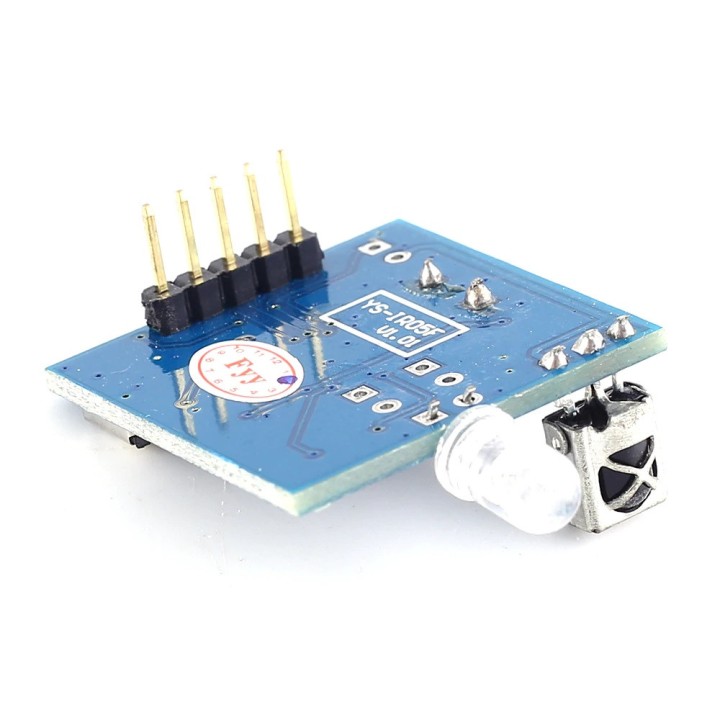

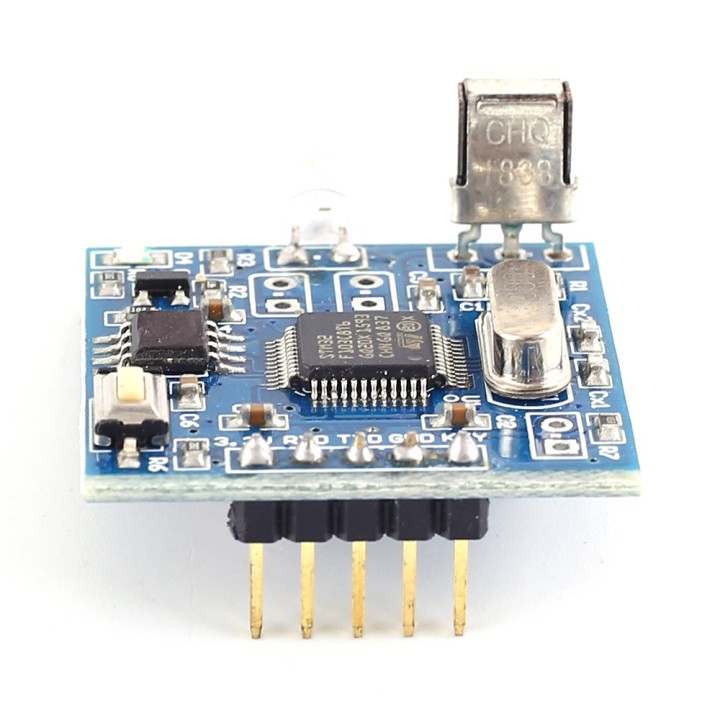

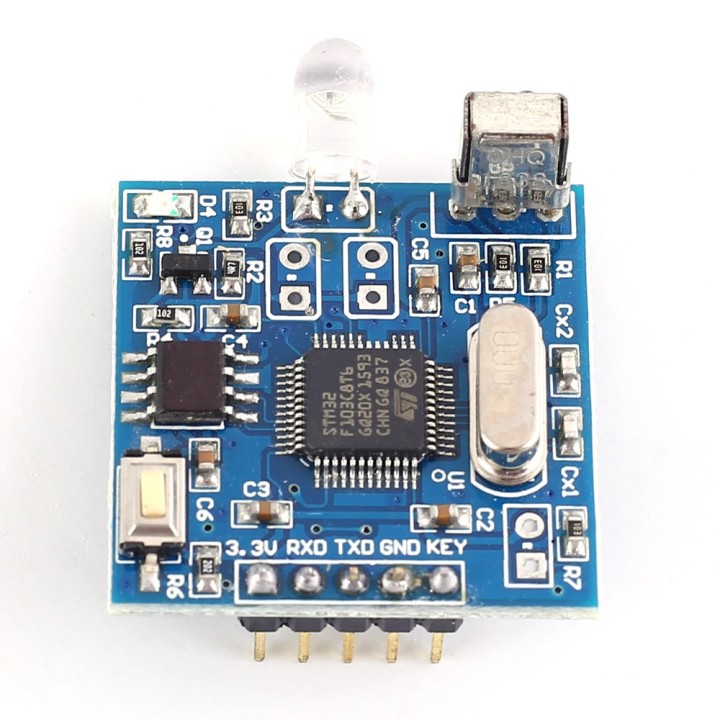

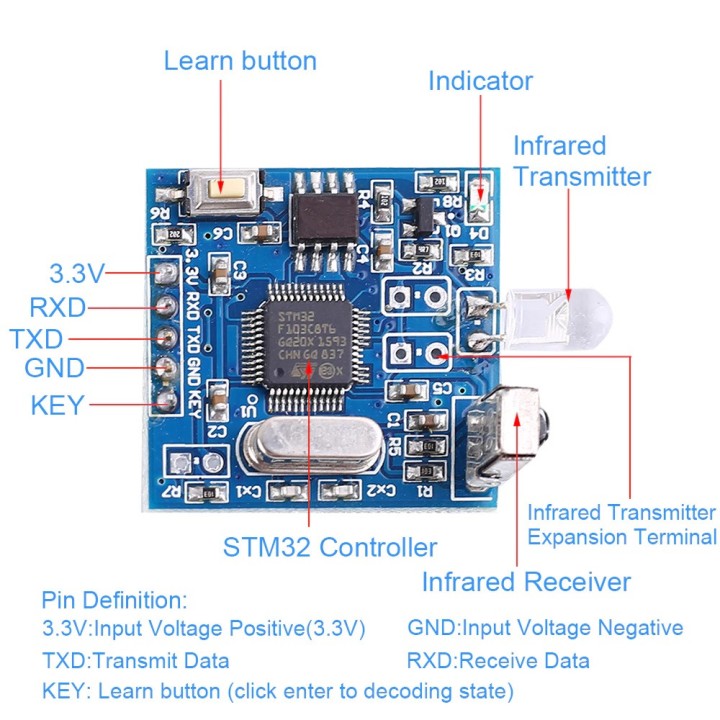

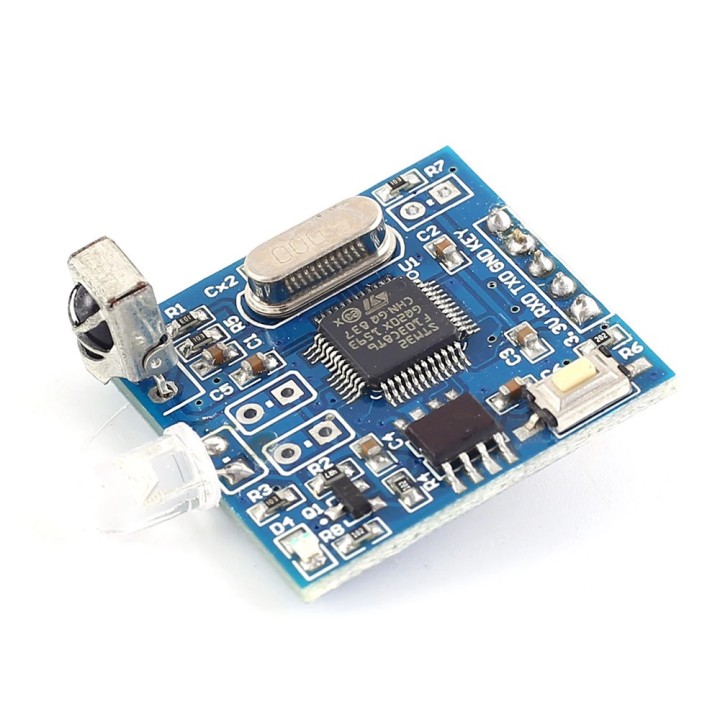

General Infrared Decoding Module UART Controller IR Remote Copyer Support Air Conditioning YS-IR05F

General Infrared Decoding Module UART Controller IR Remote Copyer Support Air Conditioning YS-IR05F
 1>.Model: YS-IR05F
  2>.Work voltage: DC 3.3V
  3>.Work current: <100mA
  4>.Stand-by current: 30mA
  5>.Emission current: 57mA
  6>.Learning state current: 66mA
  7>.Communication method: UART, 3.3V TTL level
  8>.Baud rate: 9600bps
  9>.Receiving distance: 6-10 meters (affected by the angle of ambient light)
  10>.Emission distance: 6-10 meters (affected by receiving equipment at ambient light angle)
  11>.Transceiver angle: 45 degrees
  12>.Support infrared carrier frequency range: 16-80KHz
  13>.Operating Temperature:-20?~85?
  14>.Operating Humidity:5%~95%RH
  15>.PCB Size:28*27*22mm

Function:

  1>.This module has the function of decoding and encoding infrared remote control, compatible with common household appliances such as: air conditioner, set-top box, TV set, satellite machine, electric fan, MP3 player, audio equipment, projector, CD, DVD player equipment, etc. Remote control device
  2>.Once the key enters the learning state, the remote control signal can be decoded.
  3>.The received infrared signal is internally converted to a specific code and output through the serial port, and the data length is 236 bytes.
  4>.can expand 4 infrared emitters to achieve full control.
  5>.long distance learning decoding, remote control, distance up to 10 meters.
  6>.The operation is simple, and the obtained decoding is originally sent back to the module to restore the corresponding infrared signal.
  7>.combined with computer or single-chip serial port control, can discard all remote control for intelligent control.

Application:

  1>.single-chip + IR05F module ---> to achieve smart home control appliances
  2>.wifi serial port module + IR05F module ---> to achieve remote control of infrared appliances
  3>.USB to serial port + IR05F module ---> to achieve computer control infrared equipment
  4>.Bluetooth serial port module + IR05F module ---> to achieve mobile phone, IPad control infrared device
