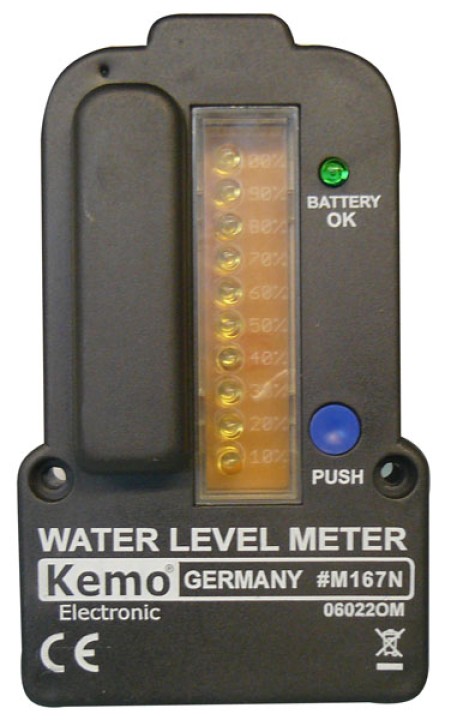

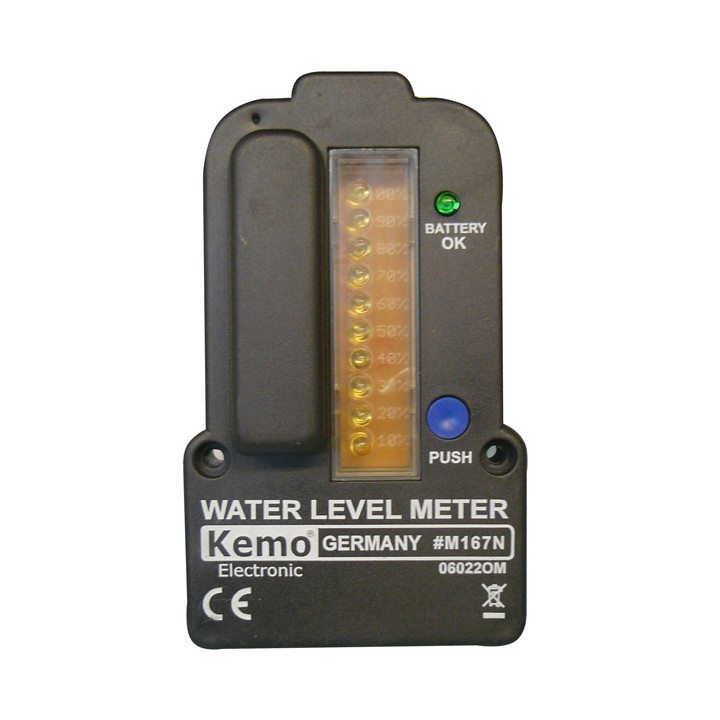

Indicator level uae puit tanks reservoirs d eau telemetries 100m measures level d eau

120 x 70 x 20 mm
To check the water level in tanks and barrels.

Connection is made via terminals inside the device. A normal signal cable (telephone cable, control wire or the like) with at least 11 cores is necessary to connect your water tank with the level indicator (cable is not included). You may also employ cables with less cores, but then it will not be possible to use all indication steps (e.g. with 8 cores only 7 LED indication steps may be used, which is, however, often sufficient).

Caution: not suitable for combustible liquids (oil, fuel, thinner, diesel fuel, etc. )

Technical data

Operating voltage: 3 V ( 2 built-in AA batteries)
DIsplay: max 10 LEDs and 1 LED for the battery control
Measuring points in the water tank: 1...10 switchable
Current consumption during the measurement (button is pushed): max.50mA if all LEDs light up.
Max. Cable to the water tank: telephone cable or similar cable with at least 11 cores.
Measuring current at the water tank probe: 50ua per channel
Dimensions: approx 120 x 70 x 20 mm (without wall angle brackets).
