Overflow detector Waterproof water level sensor 10cm float liquid detection in cisterns tanks

Overflow detector / Waterproof water level sensor (10cm float) for liquid detection in cisterns and tanks

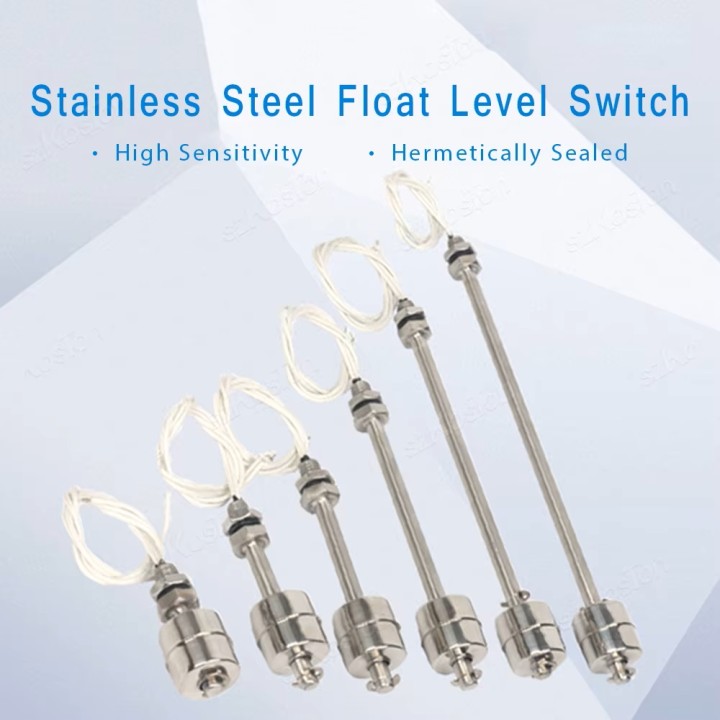

High-temperature resistant stainless steel float switch; automatic water level controller/sensor for tanks
High-temperature resistant stainless steel float switch; automatic water level controller/sensor for tanks
Features:

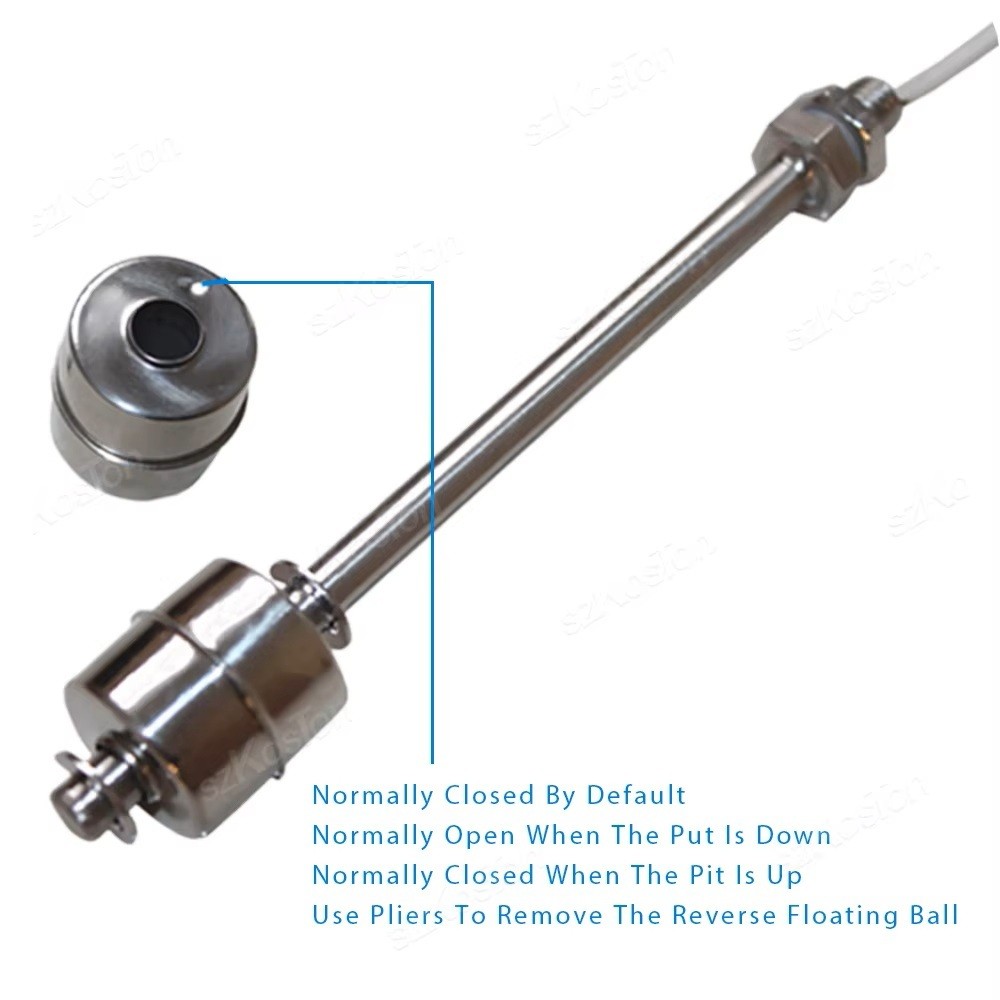

This is a mini stainless steel float switch; it contains no mercury.
Lightweight, simple operating principle, and high reliability.
This float switch is a device used to detect the liquid level in a tank;
the switch can activate a pump, indicator, alarm, or other device.
This float switch features a simple structure and is an easy-to-install liquid level controller.
It has no complex circuitry and is not prone to interference; provided the material is selected correctly,
it can be used in any environment regarding liquid type, pressure, or temperature.
The versatility of this vertical sensor means it can be installed at either the top
or the bottom of your tank, depending on whether you wish to detect rising or falling water levels.
This float level switch is widely used in electronics, electrical systems, chemical processing, water treatment,
drainage, and other fields requiring level control and alarms.
Specifications:
Material: Stainless steel.
Color: Silver.
Maximum contact rating: 10 W.
Maximum switching voltage: 110 V DC. Maximum switching current: 0.5 A
Maximum breakdown voltage: 220 V DC
Maximum carry current: 1 A
Maximum contact resistance: 100 mΩ
Maximum temperature: -30 to +125°C

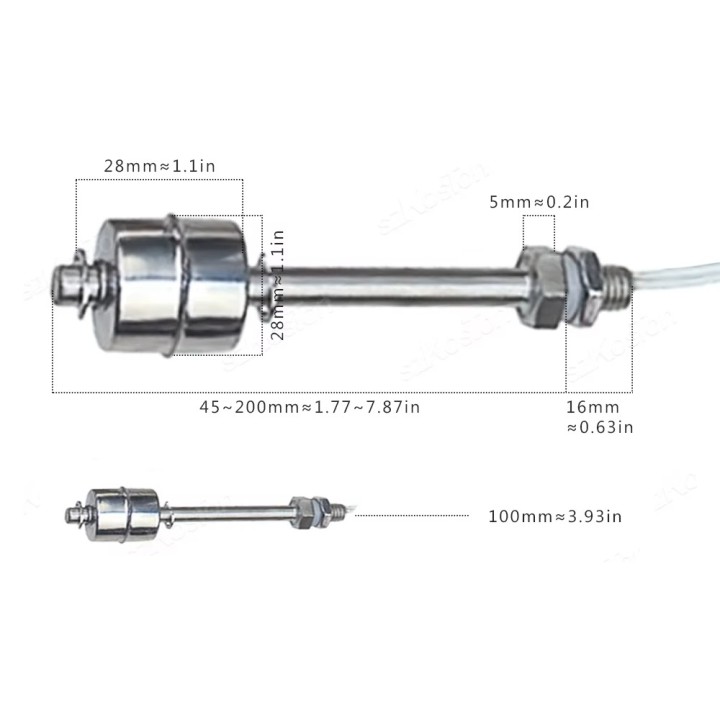

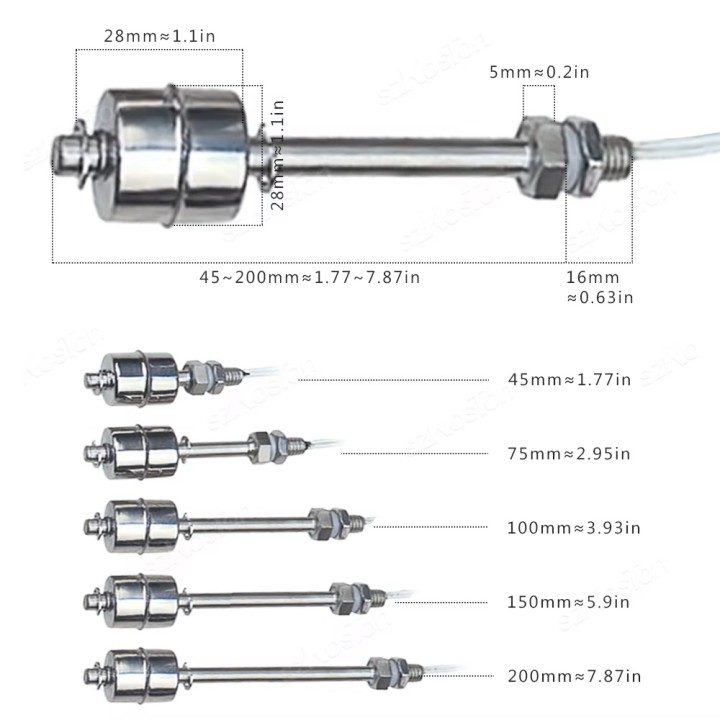

Thread diameter (approx.): 10 mm
Cable length: approx. 350 mm / 13.78"
Size: 6 x 2.6 cm / 2.36 x 1.02 inches
Quantity: 1 piece
