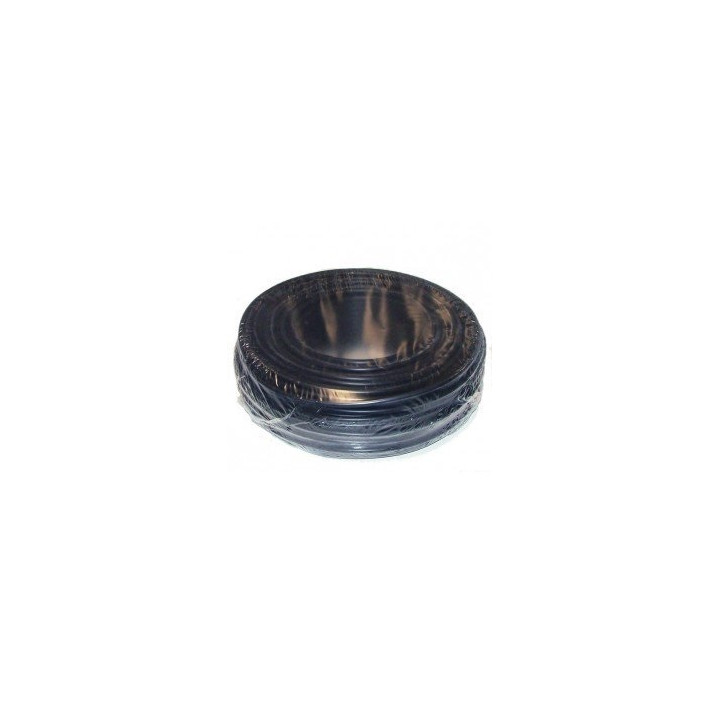

Electric cable, 3 wires 1.5mm2 ø8mm, 25m electrical cables for mains alimentation electric cable electric wire electric cables e

Power cable R2V with rigid copper core with 3 conductors 1.50 mm ², 1 conductor green / yellow. PVC outer sheath of black color.
A quantity of 1 in the basket, is 25 meters.
Specifications

Ref. R2V3G15NC
Weight (kg / packaging) 4
Packaging 25 meters
Black Color
Outer diameter 9.7 mm
Assembly of conductors 3G1 , 5
Material outer sheath PVC
Bending radius 12 x outer diameter
No mechanical or electromagnetic protection
Material of XLPE insulation
Type of conductor Copper Red
Composition of rigid conducting liner Massif ( IEC 228 Class 2)
Core identification Brown , Blue, Green, Yellow and Black color coded according to the standard HD 308 S2
Conductor diameter 1.38 mm
Section 1.5 mm ²
Maximum voltage 1000V ( rms voltage between two conductive cores )
Recommended 10 Amps maximum intensity
NF C 32-321
Behaviour in fire retardant flame cat. C2 conforming to NF C 32-070

Product Description

Power cable R2V with rigid copper core with 3 conductors 1.50 mm ², 1 conductor green / yellow. PVC outer sheath of black color. The R2V power cable (specifically U1000R2V ) is recommended by EDF rigid electrical cable. Used for fixed installations of 230 volts energy distribution in the home , it can also be used outdoors , buried with extra mechanical protection (sheath ) . The RO2V cable ( its former name ) can be installed on cable tray , inside baseboards, ducting , trunking and fixed to the walls or moldings . It can be installed directly in crawlspaces . Considered THE universal cable, RO2V cable is used by electricians for domestic electricity supply, to connect an electrical panel at circuit breaker or to connect to the table and made ??the switch to light bulbs. It also provides the electrical connection between between a main house and other premises ( garden shed , garage , porch , outbuildings, … ) . It complies with standard NF C 32-321 .
