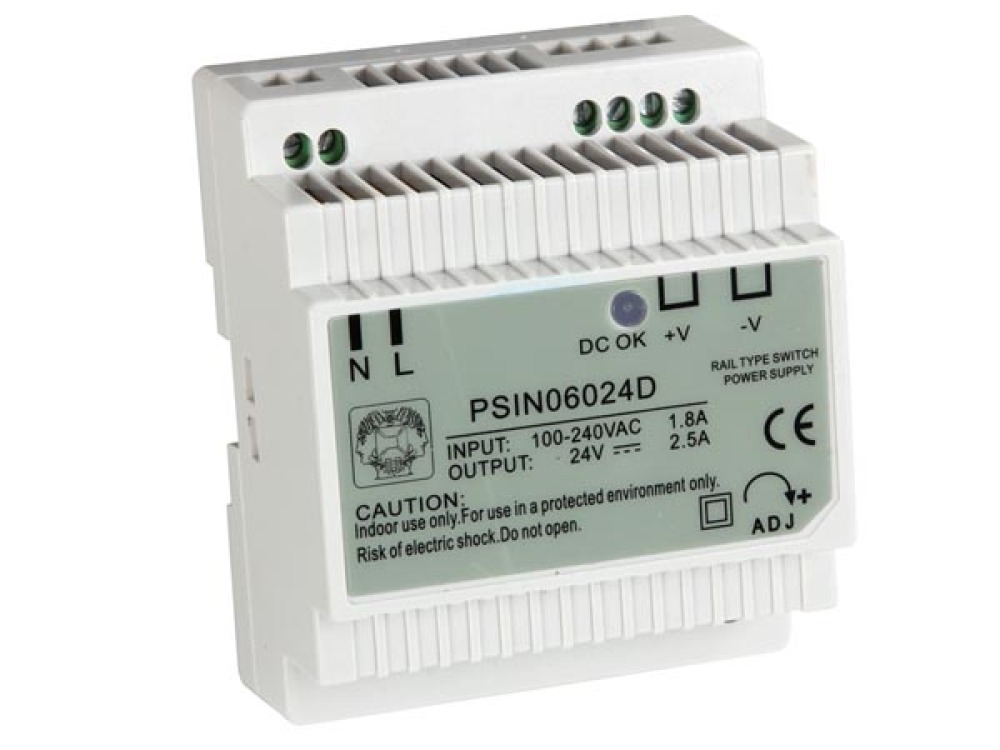

Supply din rail 60w 220v 110v 24v 2.5a psin06024dn 185 to 264v ac 24v 230v 240v

specifications

screw terminals
protections:
short
overloading
automatic reset
pre- tested on 100 % power
very reliable

specifications

input voltage : 100-120 Vac VAC/200-240 ( switch selectable ) 50/60 Hz
in -rush current (230 VAC ): 30 A ( cold start)
time power , rise , hold : 200 ms , 100 ms , 300 ms at full load and 230 VAC
temperature:
-10 ° C to 0 ° C: 80 % load
of 0 ° C to 50 ° C: 100 % load
50 ° C to 60 ° C: 60 % load
humidity : 20% - 90% RH
protection against overloads : current limiting 105% - 150% with automatic reset
withstand voltage (max. 1 min):
I / P - O / P : 1.5 Kvac
I / P - FG : 0.5 Kvac
DC adjustment range : ± 10% of the output voltage ( V adj )
Efficiency: 74%
connections: terminal block 5, 7 or 9-pin 9.5 mm pitch
output voltage : 24 VDC ± 1%
output current : 0.0 - 2.5 A
power : max. 60 W
input voltage : 100-120 Vac VAC/200-240 ( switch selectable ) 50/60 Hz
in -rush current (230 VAC ): 30 A ( cold start)
time power , rise , hold : 200 ms , 100 ms , 300 ms at full load and 230 VAC
temperature:
-10 ° C to 0 ° C: 80 % load
of 0 ° C to 50 ° C: 100 % load
50 ° C to 60 ° C: 60 % load
humidity : 20% - 90% RH
protection against overloads : current limiting 105% - 150% with automatic reset
withstand voltage (max. 1 min):
I / P - O / P : 1.5 Kvac
I / P - FG : 0.5 Kvac
DC adjustment range : ± 10% of the output voltage ( V adj )
Efficiency: 74%
connections: terminal block 5, 7 or 9-pin 9.5 mm pitch
