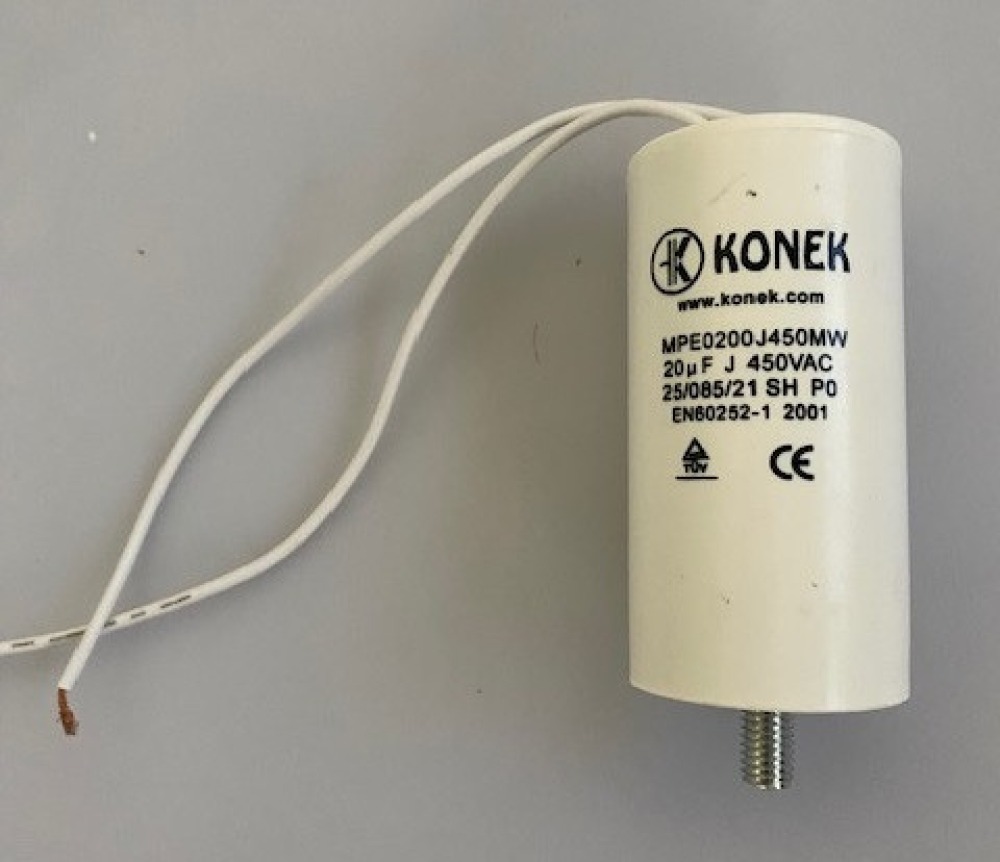

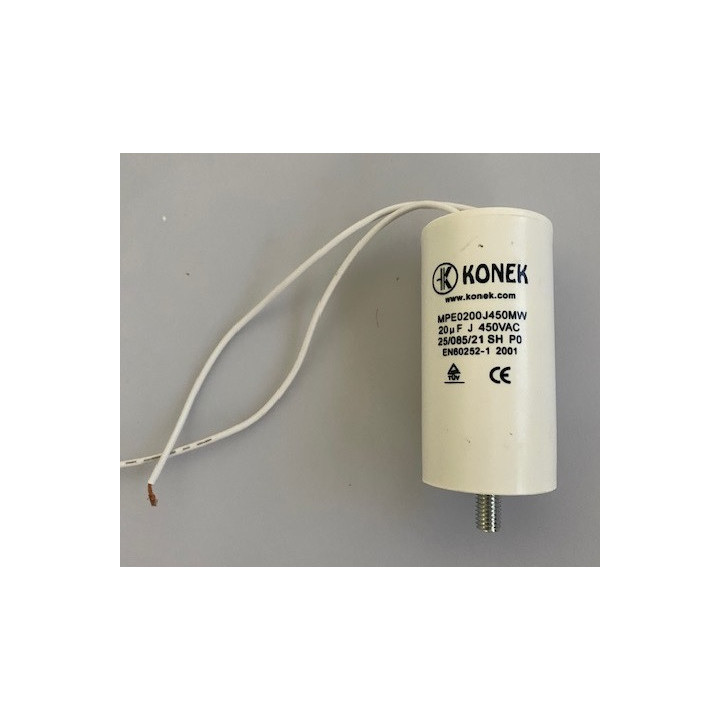

CBB60 AC 450V 20uF Polypropylene Film Motor Capacitor for Washing Machine

Dimensions O42x81mm . Weight 90gr

Round capacitors in a flame retardant housing. Insulated and highly waterproof.
Easy to mount thanks to the 2 wires and the M8 screw. Suitable for lamps and 50/60Hz motors.

BRAND: Fixapart

Capacitance: 20.0 uF
Voltage: 450 V
Dimensions: O42 x 81 mm
Cable Length: 250 mm

Capacitor 20µF, 20mF, 20 microfarads 450V cable for engine start

Can replace any permanent capacitor of 20 µF whose plated voltage is between 400V and 500V, including (among others)
ITALFARAD series RP2-20 and RP3-20
DUCATI series 4.16.10 and 4.16.17
ARCOTRONICS series 1.27.4AC MKP 1.27.6CC MKP 1.27.7LA MKP
COMAR Capacitatori type MKA 20-450 - 20µF - 450V - Cable output

Permanent capacitor 20µF, 20mF, 20 microfarads 450V for electric motor and pump.

Dimensions: 42 x 81 mm

Cable outputs length 250mm
Operating voltage: 220V
Max voltage: 450V
Nominal frequency: 50 / 60 Hz
Capacity tolerance: +/- 5%
Working temperature: -25 ° C to + 85 ° C
Reference standard: EN 60252
Class B: 10000 hours

Permanent or starting capacitors: Their functions

Permanent or starting capacitors are not suppressors, their function is to help start or rotate the electric motors that are equipped with them. The value in MF (microfarad µF) is very important and will therefore guide your choice. The voltage indicated (example 450V) is the maximum voltage that the capacitor can support and not a service voltage.
Symptoms of failure: The motor struggles to start or does not start at all. It starts slowly when it is powered and started manually
Technology:
On washing machine motors, we find this type of capacitors on squirrel cage motors with a permanent magnet rotor. Like brushed motors (the magnetic field of the rotor is produced by the electricity that powers the motor). Advantage: They do not require any maintenance.
The capacitor creates a 90° phase shift between the two main windings, it is a bit like adding another additional electrical source on the second winding.
The phase shift improves the torque at start-up and allows the motor to have rotational stability.
