Multimeter 3 1/2 digits with protection of measurement error dvm990bl

Specifications

Widescreen LCD display with backlight
low battery indication, protection against overloads
diode test and continuity
DC current max. 10A, DC voltage max. 1000V
AC max. 10A, AC voltage max. 700V
resistance measurements: up to 20Mohm
capacitance measurements: up to 20?F
measures frequencies to 20kHz
tested temperature range: -20 to 1000 ° C
with backlight and data hold
comes with protective sheath and cords IEC1010

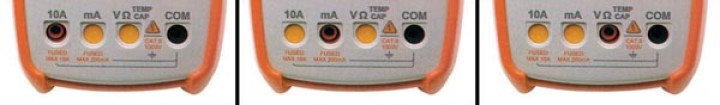

connection protection: entries open in the selected range
Important safety information

Specifications

DC voltage: 200m/2/20/200/1000V
basic accuracy: ± 0.5%
input impedance: 10Mohm
Max input:. 1000V
AC voltage: 2/20/200/700V
basic accuracy: ± 1.2%
input impedance: 10Mohm
frequency range: 40-400Hz
Max input:. 700V
DC current: 2m/20m/200m/10A
basic accuracy: ± 1.0% (± 2.0% for 10A range)
overload protection: F1 (F 200mA/250V) 2mA to 200mA range to the range / F2 (F 10A/250V) for 10A range
AC: 2m/200m/10A
basic accuracy: ± 1.2% (± 3.0% for 10A range)
overload protection: F1 (F 200mA/250V) 2mA to 200mA range to the range / F2 (F 10A/250V) for 10A range
resistance: 200/2k/20k/200k/2M/20M/200M
basic accuracy: ± 1.0% (± 5.0% for the 200M range)
Overload protection: 250V
capacity: 2n/20n/200n/2?/20?F
Accuracy: ± 4.0%
inductance: -
accuracy: -
Frequency: 20kHz
basic accuracy: ± 1.5%
Overload protection: 250V
Temperature: -20 to 1000 ° C
basic accuracy: ± 1.0%
overrange: yes "1"
continuity buzzer: yes
transistor test: no
diode test: yes
Low battery indication: yes
max display. : 1999 (3 1/2)
LCD display size: 28mm
Range Selection: Manual
data hold: yes
Backlight: yes
dimensions: 191 x 82 x 36mm
weight (with battery): ± 280g
Power supply: 9V battery (included)
Packaging: -

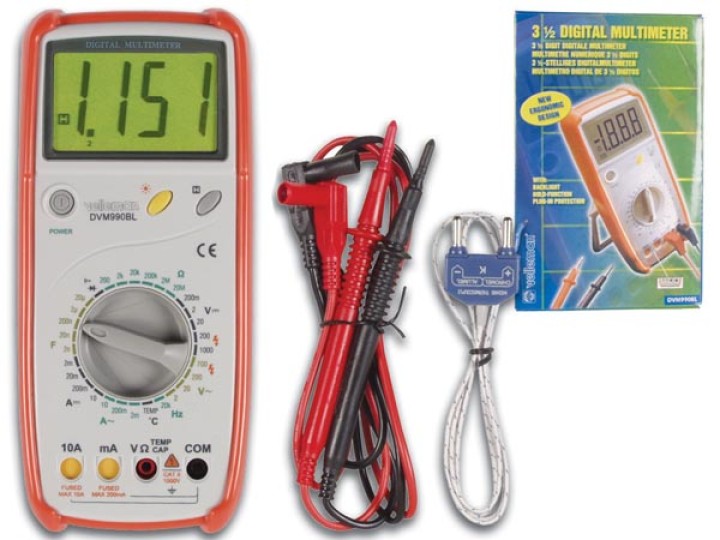

accessories: manual / test leads / battery / thermocouple "K"
auto power-off: no
