Features
3200 count digital display
65-segment analogue bargraph
autoranging and manual selection
0.3% basic DCV accuracy
1.3% basic ACV accuracy
1.0% basic DCA accuracy
1.5% basic ACA accuracy
0.5% basic ? accuracy
true RMS reading in ACV/ACA
continuity and diode test
500V dual-fuse protection
Beep Guardtm warning system
auto power-off
waterresistant rating IP64
fast continuity beeper (0.2 millisec)
unique display-hold function
1.5m (5 feet) dropproof
protective holster and tilt stand
IEC 1010-1 CAT. II 1000V
Important safety information
Specifications
DC voltage: 300.0mV ~ 1000V
basic accuracy: ±(0.3%+2d)
resolution: 0.1mV
AC voltage: 3.000V ~ 750V
basic accuracy: ±(1.3%+3d) @ 40Hz ~ 500Hz
resolution: 1mV
frequency range: 40Hz ~500Hz
DC current: 300.0µA ~ 20.00A
basic accuracy: ±(1%+2d) basic, ±(2%+3d) @ > 2A
resolution: 0.1µA
AC current: 300.0µA ~ 20.00A
basic accuracy: ±(1.5%+3d) basic, ±(2.5%+5d) @ > 2A
resolution: 0.1µA
resistance: 300.0? ~ 30.00M?
basic accuracy: 300? ±(0.7%+4d) / 3K? ~ 200K? ±(0.5%+2d) / 3M? ±(1.0%+3d) / 30M? ±(2.0%+5d)
resolution: 0.1?
capacitance: -
accuracy: -
resolution: -
frequency: -
basis accuracy: -
resolution: -
temperature: -
basic accuracy: -
resolution: -
overrange: ? "OL" or "-OL"
continuity buzzer: ?
transistor test: ?
diode test: ? open circuit voltage 3.3V max.
low-battery indication: ?
ranging mode: manual or automatic
data hold: ?
backlight: ?
dimensions: 95 x 192 x 50 mm (with holster)
weight (with battery): ±550g (with holster)
power supply: 1 x E-block 9V battery (incl.)
accessories: protective holster / test leads / ZnC battery (installed) / manual
auto power-off: ?
Extras
remark
all APPA® multimeters come with manual in English

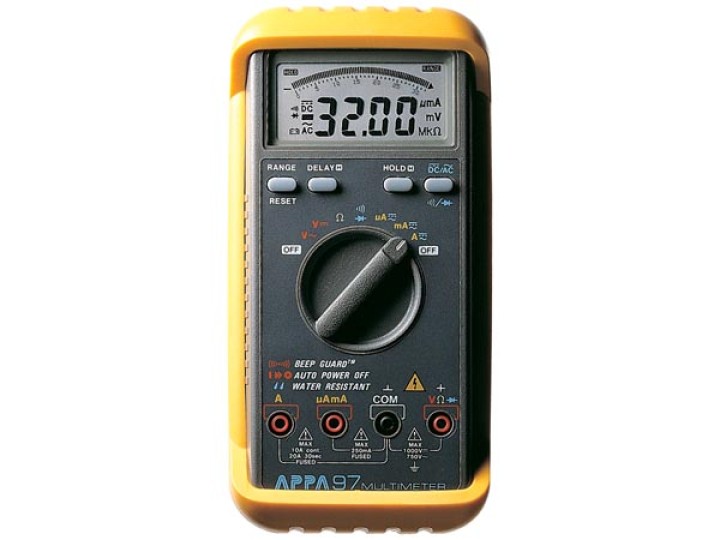

APPA97R
