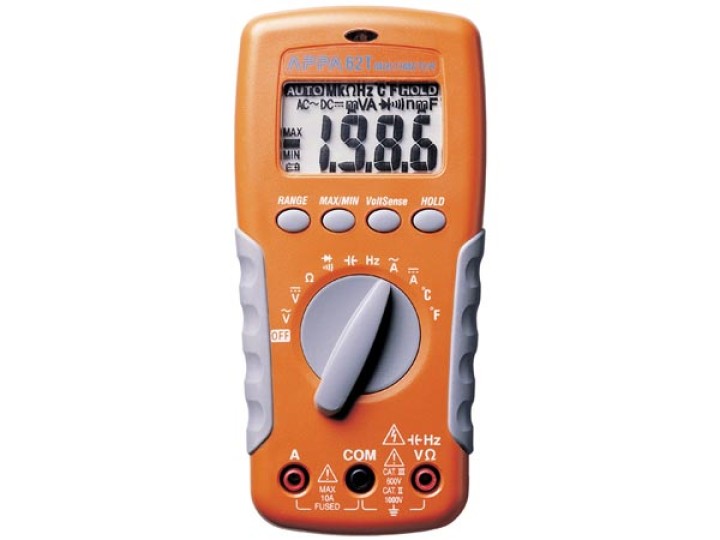

Digital Multimeter appa 62 automatic range selection

features

digital display 2,000 points
select automatic or manual range
Measuring CAV, CCV, ohm, continuity and diode
gel data hold function display
VoltSense tm function (voltage measurement without contact)
range / CAA CCA: 10A
measurement of MIN / MAX values
frequency counter
measuring capacitors
Auto power off
withstand a drop from a height of 1.2m
sensor holder and Support
CAT. III 600V
Important Safety Information

specifications

DC voltage: 1000V ~ 200.0mV
Basic accuracy: ± (0.5% + 2d)
Resolution: 0.1mV
AC voltage: 750V ~ 200.0mV
Basic accuracy: ± (1.5% + 5d) @ 50Hz ~ 500Hz
Resolution: 1mV
frequency range: -
DC current: 2.000A / 10A
Basic accuracy: ± (1.0% + 3d)
Resolution: 1mA
AC current: 2.000A / 10A
Basic accuracy: ± (1.5% + 5d) @ 50Hz ~ 500Hz
Resolution: 1mA
Resistance: 200.0? ~ 20.00M?
Basic accuracy: ± 200.0K? 200.0? ~ (0.7% + 2d) / 2.000M? ± (1.0% + 2d) / 20.00M? ± (1.5% + 2d)
Resolution: 0.1?
capacity: 2.000nF ~ 2.000mF
Accuracy: ± (1.9% + 8d)
Resolution: 1pF
Frequency: 20.00MHz ~ 2000Hz
Basic accuracy: ± 2000Hz ~ 200.0KHz 0.01% + 1d> 1.5Vac rms, <5VAC rms / 2.000MHz ~ 20.00MHz ± (0.01% + 1d)> 1.5Vac rms, <5VAC
Resolution: 1Hz
temperature -
basic accuracy: -
resolution: -
out of range indication: ? "OL" or "-OL"
continuity buzzer: ?
transistor test: ?
diode test: ? Open Circuit Voltage 2V
Low battery indication: ?
track selection: manual or automatic
data-hold function: ?
backlight: ?
dimensions: 74 x 44 mm x156
Weight (with battery): ± 650g (cover incl.)
power supply: 2 x 1.5V LR03 LR03C (incl.)
Accessories: test leads / zinc-carbon battery (installed) / notice
automatic deactivation: ± 10 min (ignition or extinction)
