Features
- these screwless terminals are suitable for both solid and flexible conductors
- a spring made of stainless strip steel guarantees permanent

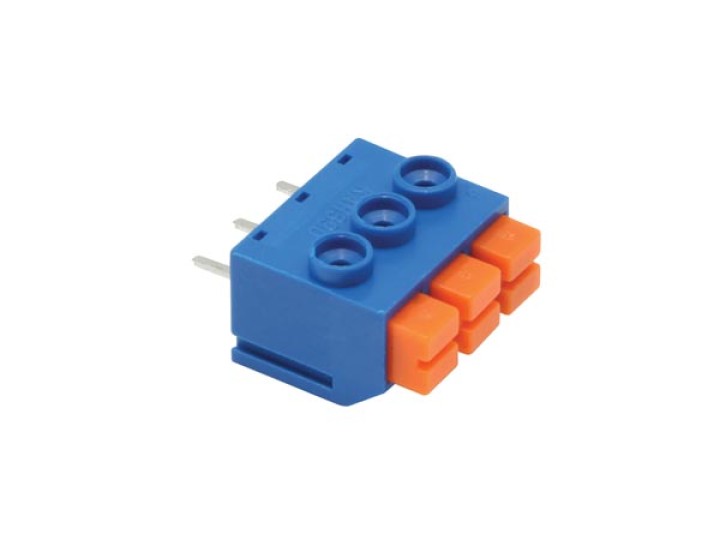

Blue quick connector for pcb assembly - 3 lead pitch 5mm ref: screw03slb
REF : CRB3P5M
€0.71
Features
- these screwless terminals are suitable for both solid and flexible conductors
- a spring made of stainless strip steel guarantees permanent
: 40 Items
Emplacement : R9D3
Security policy
Delivery policy
Terms of Sales
weight 3gr
Features
- these screwless terminals are suitable for both solid and flexible conductors
- a spring made of stainless strip steel guarantees permanent and safe contact
- operation by pushing the lever with a screwdriver (this lever is fully integrated in the body)
- equipped with a cover for easy manual adjustment
- blocks are stackable

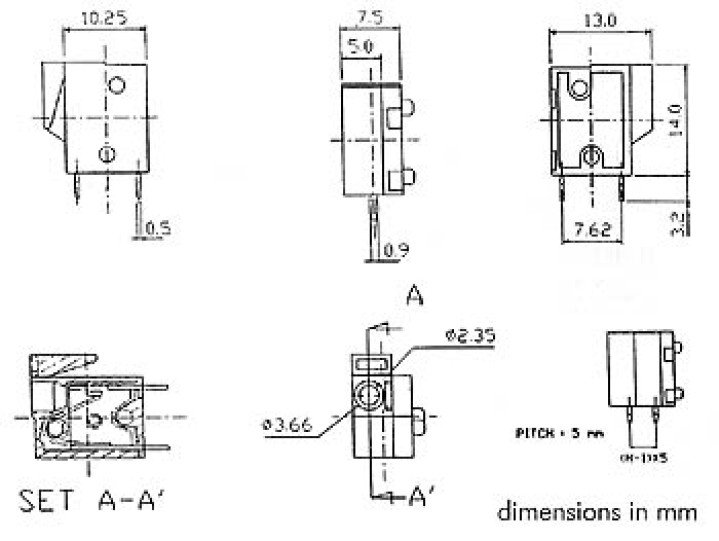

Specifications
- contact material: brass
- contact spring: Stainless steel strip
- Solder tail: Tin plated
- Insulator body: PBT - 30% glass filled
- Current rating: 8 A
- Dielectric Strenght: 2500 V
- AWG: 22-16
- Insulation Withstands Voltage: AC1500V/Min.
- Operating Temperature: -30°C to 120°C
- Pitch: 5 mm
- screwless push-button type
- pitch: 5mm
- insulated body lever, cover: glass-filled polyester (UL94VO)
- AWG: 20 - 18 (0.6 to 1.5mm²)
- contact: brass (CuZn)
- surface of solder pins: tin-plated
- current rating: max. 15A, 300Vac / way
- insulation withstand voltage: 2000Vac min.
- insulation resistance: 500Mohm (at 5000Vdc)
- operating temperature: -33°C to +120°C
- soldering temperature: +250°C, 5 seconds max.
- colour: green with orange
