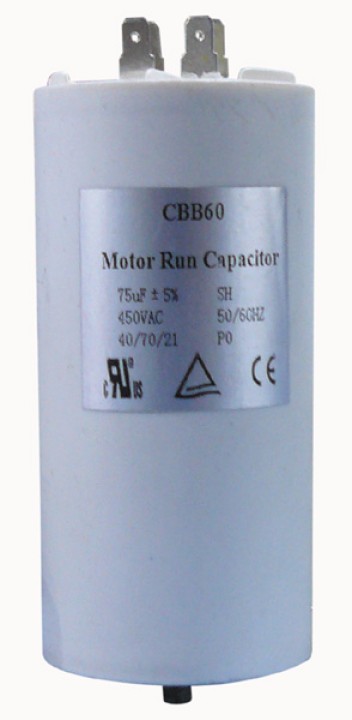

Capacitor 75 mf micro farad 450v 50 60 hz universal motor start capacitor with am terminal w1 11060 coma - 2

Capacitor 75 mf micro farad 450v 50 60 hz universal motor start capacitor with am terminal w1 11060

REF : 75MFC

€38.23

Volume discounts

5
€36.32
10
€34.41
20
€30.58
50
€28.67
100
€26.76
200
€24.85
500
€22.94
1000
€21.03
: 23 Items

Emplacement : -()R2L1


Capacitors round in a fireproof box. Isolated and highly watertight.
Easy to install thanks to the dual faston 6.3 mm and M8 screws. Suitable for lamps and motors 50/60Hz.

75μf capacitor, 75mf, 75 microfarads to 450V electric motor TERMINALS

Can replace any permanent capacitor 75 uF whose patch voltage between 400V and 500V, including (among others)
ITALFARAD series RP2.75 and RP3.75
4-16-10 and 4-16-17 DUCATI series
ARCOTRONICS series 4ACMKP 1.27-1.27-1.27-6CCMKP 7LAMKP
COMAR Condensatori kind MKA75-450 - 75μF - 450V - Output terminals

75μf permanent capacitor 450V electric motor and pump

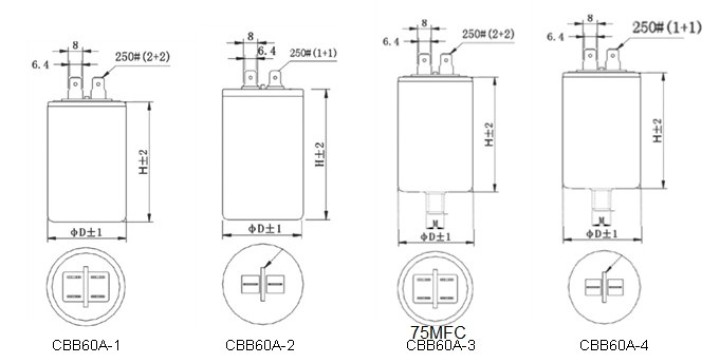

Dimensions: 50 x 120 mm

Outputs 6.3mm faston
Voltage: 220V
Voltage: 450V
Rated frequency: 50/60 Hz
Capacitance Tolerance: + / - 5%
Working temperature: -25 ° C to +85 ° C
Reference Standard: EN 60252
Class B: 10000 hours

 CBB60 AC Motor Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.

CBB60 series AC Motor capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to standard operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.

Product Details:

Model Number

CBB60

Type

Metallized Polypropylene Film Capacitor

Terminal Leading type

Double Faston 6.35 x 0.8 mm 2+2 tabs

Capacitor Can Materials

PP,PC,PBT,ROHS,Aluminum,thermoplastic Flame retardant UL-homologated

Package Type

Surface Mount

Package

50-100pcs per carton, according to capacitor size

Individual box Packing

Available ,we could print customer’s logo

Frequency

85322590



Applications
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for AC motor, electric engine, water pump, generator and high efficiency compressors of refrigerators etc.

Feature:
1) Very small dissipation factor,small inheterent temperature rise
2) High insulation resistance
3) Good capacitance stability
4) Excellent self-heali
ng property
5) Safety and hight reliability due to flame re
tardant plastic or metal case enclosure,flame retardant epoxy resin end fill.
6) It is applicable for the starting and running of AC single-way motor with 50~60Hz frequency.
7) Special requir
ement can be made at the request of customers.

Specification:





Capacitance Range



75 uF



Capacitance Tolerance



+5%,+10%



Rated Alternate Voltage



250Vac, 300Vac, 400Vac, 450Vac, 500Vac,630VAC,660VAC and so on



Rated Frequency



50/60 Hz



Dissipation Factors



0.35% Max



Operating Temp.



40/85/21, 25/70/21



Dielectric



Polypropylene with self healing SH



Termination



Tin plated copper or copper alloy, 0.02in (0.51mm) thick minimum Insulated wire (AVLV2) AWM, No.18 or larger, rated 900 C Minimum, rated 600V for plastic case only.



Encapsulation



Two component, self extinguishing epoxy with resin and Harder, plastic, rated minim-um UL 94 V-0, 900C minimum (RTI)



TT (Terminal to Terminal)



2 X Rated Voltage



TC (Terminal to Case)



Minimum 2000 V AC for 1 Min.



Ref. Standard



IEC - 252-1993



Quality System



ISO-9002-1994

coma
75MFC
23 Items
