REF : BNCFF
Specifications*description: double BNC female
REF : M18CN
Features
2 x video/camera inputs and 1 x stereo audio input
IR headphone transmitter on the front
OSD (on-screen displa
Emplacement : -()R2A2
Features
2 x video/camera inputs and 1 x stereo audio input
IR headphone transmitter on the front
OSD (on-screen display)
mirror image function
PAL/NTSC auto switchable
automatic trigger function for reverse camera

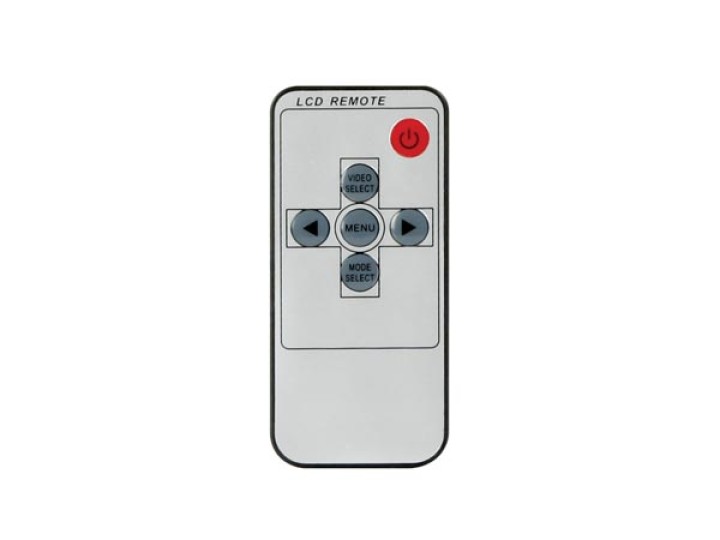

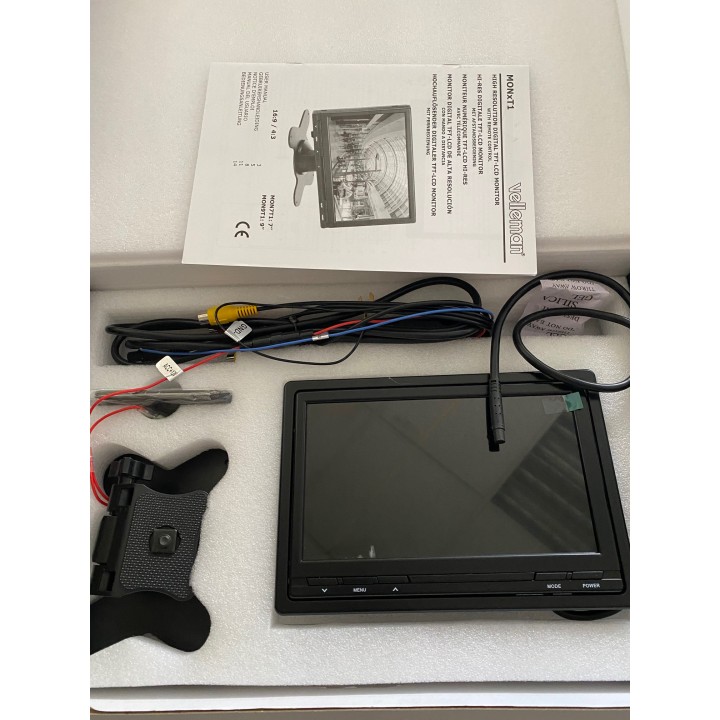

comes with: remote control, cables, table stand and headrest installation frame
audio output via optional MONT/HP: IR HEADPHONE FOR MON7T1 AND MON9T1 IR headphones
Specifications
display mode: TFT Active Matrix (16:9/4:3)
screen size: 7"
resolution: 800 (H) x 480 (V)
number of pixels: 384 000
luminance: 250 cd/m²
video input signal: 1.0Vpp / 75 ohms (composite video signal)
OSD function: horizontal/vertical image reversing, setting adjustment and volume
power supply:
monitor: max. 12VDC ±10%
power consumption: max. 7W
remote control: 1 x 1.5V CR2025: LITHIUM 3.0V-170mAh 6025.801.401 (1pc/bl) battery (incl.)
dimensions: 173 x 115 x 20 mm
weight: 360g
