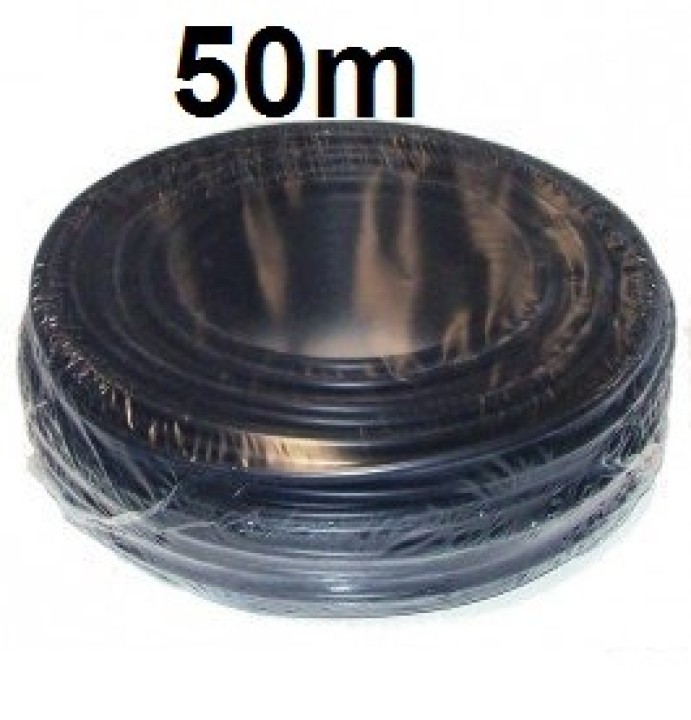

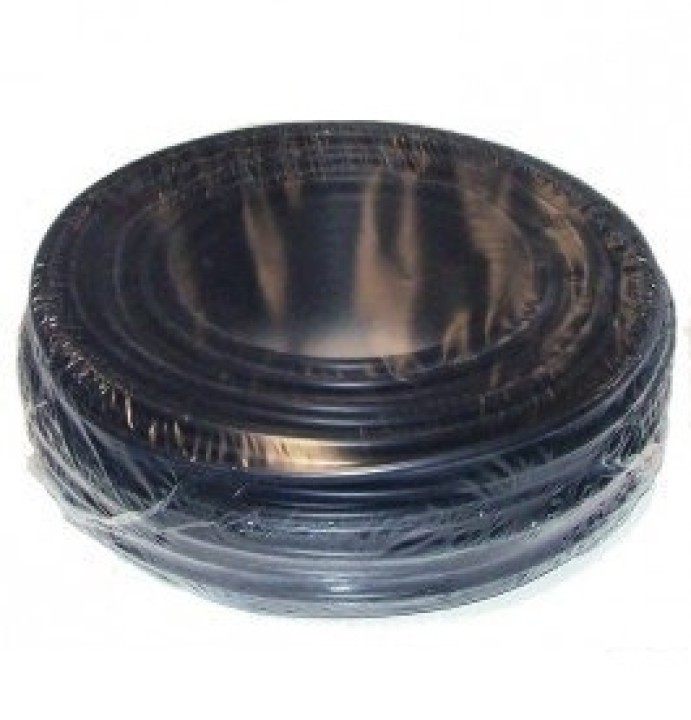

Electric cable U-1000 R2V 3G2 , 50mm ² (50 meters) Quick Overview Power cable R2V with rigid copper core with 3 conductors 2.50 mm ², 1 conductor green / yellow. PVC outer sheath of black color. A quantity of 1 in the basket is 50 meters. Ref. R2V3G25NL Weight (kg / packaging) 10.1750 Packaging 50 meters Black Color Outside diameter 10.5 mm Assembly of conductors 3G2 , 5 Material outer sheath PVC Bending radius 12 x outer diameter No mechanical or electromagnetic protection Material of XLPE insulation Type of conductor Copper Red Composition of rigid conducting liner Massif ( IEC 228 Class 2) Core identification Brown , Blue, Green, Yellow and Black color coded according to the standard HD 308 S2 Conductor diameter 1.78 mm Section 2.5 mm ² Maximum voltage 1000V ( rms voltage between two conductive cores ) Recommended 16 Amps maximum intensity NF C 32-321 Behaviour in fire retardant flame cat. C2 conforming to NF C 32-070
Product Description

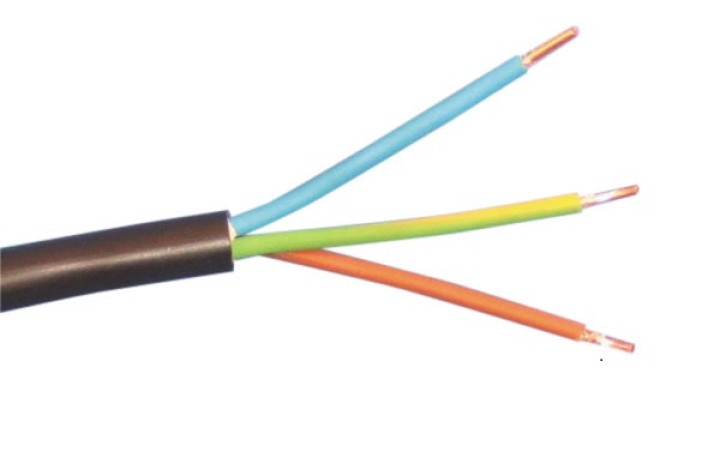

Power cable R2V with rigid copper core with 3 conductors 2.50 mm ², 1 conductor green / yellow. PVC outer sheath of black color. The R2V power cable (specifically U1000R2V ) is recommended by EDF rigid electrical cable. Used for fixed installations of 230 volts energy distribution in the home , it can also be used outdoors , buried with extra mechanical protection (sheath ) . The RO2V cable ( its former name ) can be installed on cable tray , inside baseboards, ducting , trunking and fixed to the walls or moldings . It can be installed directly in crawlspaces . Considered THE universal cable, RO2V cable is used by electricians for domestic electricity supply, to connect an electrical panel at circuit breaker or to connect to the table and made the switch to light bulbs. It also provides the electrical connection between between a main house and other premises ( garden shed , garage , porch , outbuildings, ... ) . It complies with standard NF C 32-321 .
