50m electrical cable h05vv 3g 3x1 3x1 round 1mm ² 3 1mm2 son ø7mm h05vvf3g1wl

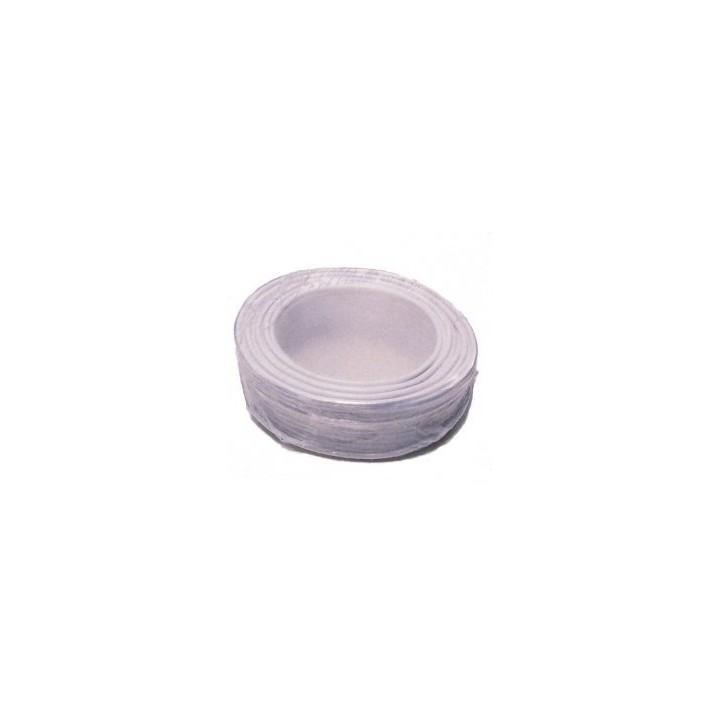

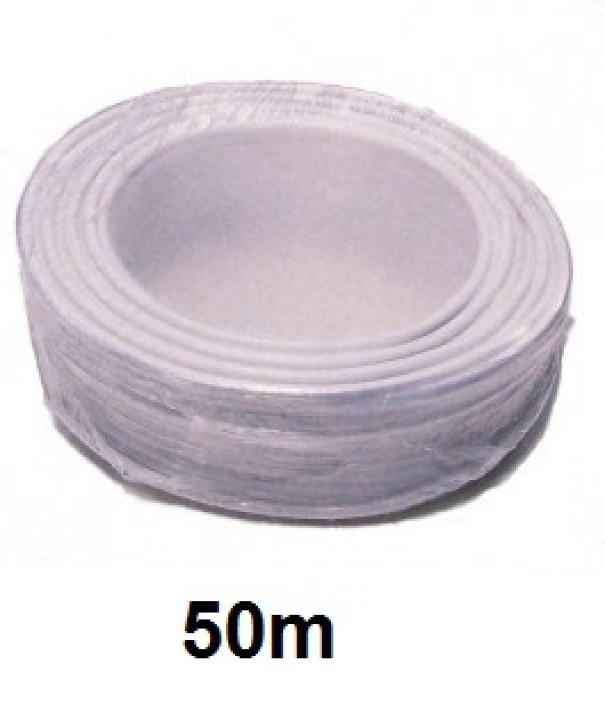

Flexible power cable H05VV- F 3G1 mm ² White (50 meters)
Flexible electrical power cable H05VV- F with copper core with 3 conductors 1 mm ² conductor cross section, 1 green / yellow. PVC outer sheath of white.
A quantity of 1 in the basket is 50 meters.
Ref. H05VVF3G1WL
Weight (kg / packaging) 4.1800
Packaging 50 meters
Color White
Outer diameter 6.3 to 8.0 mm
Assembly 3G1 drivers
Material of PVC outer sheath TM2 kind
Radius 6 x cable diameter
No mechanical or electromagnetic protection
Insulation material type PVC TI2
Type of conductor Copper Red
Composition of flexible conducting liner Stranded ( IEC 228 Class 5 )
Core identification Brown , Blue, Green, Yellow and Black color coded according to the standard HD 308 S2
Conductor diameter 1.13 mm
Section 1 mm ²
Maximum voltage 500 volts ( rms voltage between two conductive cores )
Recommended 6 amps maximum intensity
Standard HD 21.5 S3 / NF C 32-201
Behaviour in fire retardant flame cat. C2 conforming to NF C 32-070

Product Description

Flexible electrical power cable H05VV- F with copper core with 3 conductors 1 mm ² conductor cross section, 1 green / yellow. PVC outer sheath of white. The H05VV- F power cable is mainly used for connecting portable power tools or small appliances or means such as washing machines , for example.
