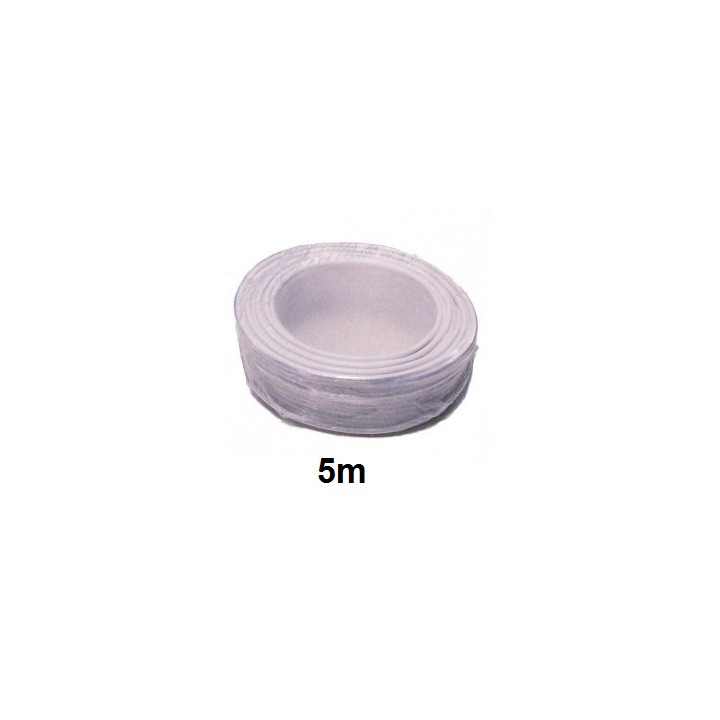

Electric cable. white 3 wires 1,5mm2 ø8mm (5m) jr international - 1

Electric cable. white 3 wires 1,5mm2 ø8mm (5m)

REF : 3X15.5

€12.39
Flexible electrical cable H05VV-F 3G1, 50mm ² white (5 meters)Flexible electrical power cable H05VV-F with copper core with 3 conductors 1.50 mm ² conductor with 1 green / yellow. PVC outer sheath o

Volume discounts

5
€11.77
10
€11.15
20
€9.91
50
€9.29
100
€8.67
200
€8.05
500
€7.43
1000
€6.81
: 100 Items

Emplacement :


Flexible electrical cable H05VV-F 3G1, 50mm ² white (5 meters)
Flexible electrical power cable H05VV-F with copper core with 3 conductors 1.50 mm ² conductor with 1 green / yellow. PVC outer sheath of white.
A quantity of 1 in the basket, is 5 meters.
Ref. H05VVF3G15WL
Weight (in kg / packaging) 0.6500
Packaging 5 meters
Color White
Outer diameter 7.4 to 9.4 mm
Assembly of conductors 3G1, 5
Material of PVC outer sheath TM2 Type
Bending radius 6 x outer diameter
No mechanical or electromagnetic protection
Insulation material type PVC TI2
Nature Red Copper Conductor
Composition of flexible conducting liner Stranded (IEC 228 Class 5)
Core identification Brown, Blue, Green, Yellow and black color codes according to standard HD 308 S2
Conductor diameter 1.38 mm
Section 1.5 mm ²
Maximum voltage 500 volts (rms voltage between two conductive cores)
Recommended 10 Amps maximum intensity
Standard HD 21.5 S3 / NF C 32-201
Behaviour in fire retardant flame cat. C2 according to NF C 32-070

Product Description

Flexible electrical power cable H05VV-F with copper core with 3 conductors 1.50 mm ² conductor with 1 green / yellow. PVC outer sheath of white. The H05VV-F power cable is mainly used for connecting portable power tools or small appliances or means such as washing machines, for example.
3X15.5
100 Items
