Specifications switching position: 2-3, 5-6: ON OPEN: NONE 2-1, 5-4: ON remark: 2A / 230Vac contact rating: 5A with resistive load of 120Vac or 28Vdc electrical life: 50000 make-and-break c

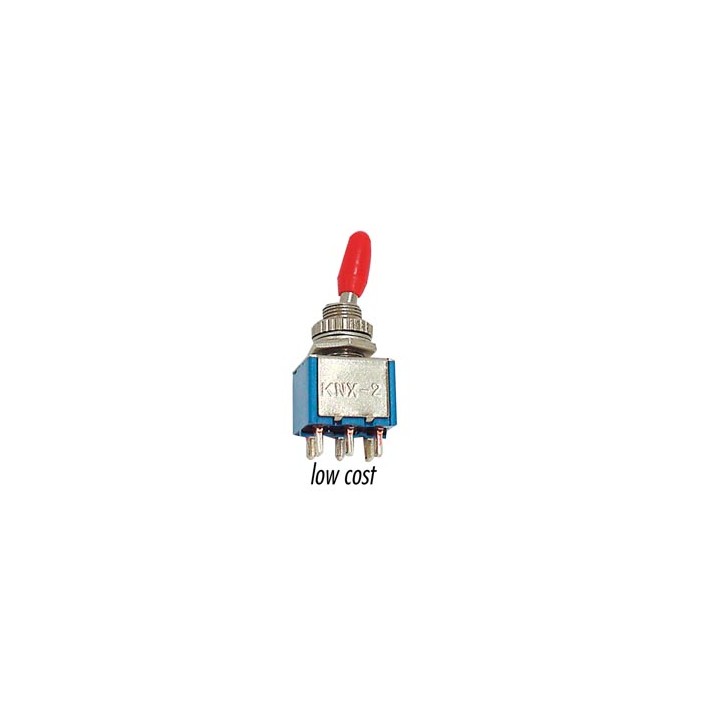

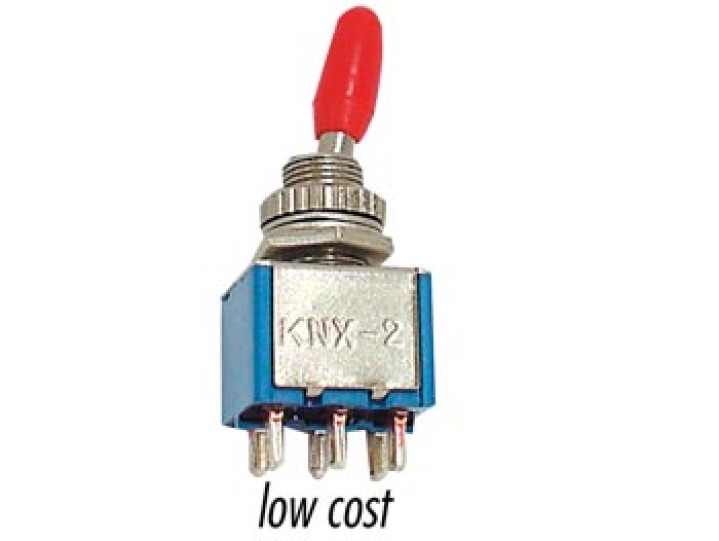

Vertical toggle switch dpdt on on

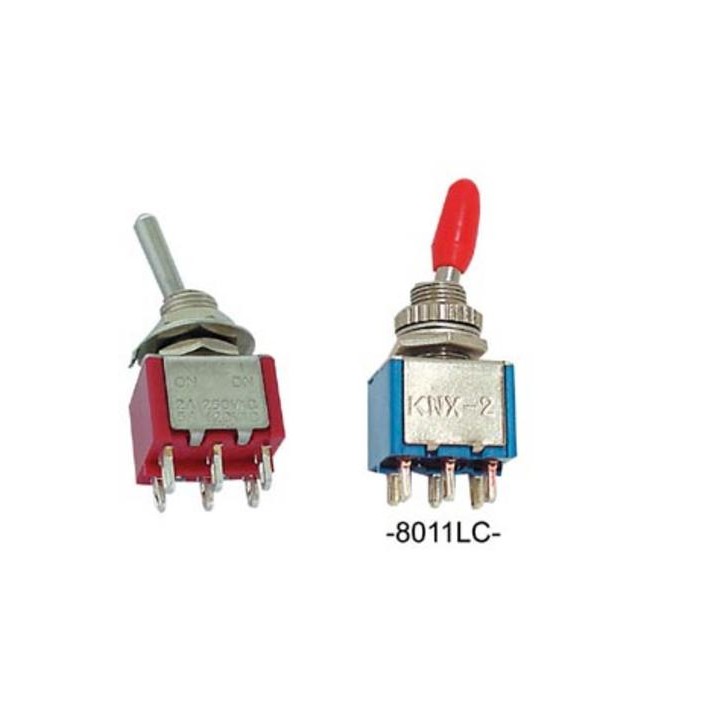

REF : 8011LC_1
€1.40
€0.67 Save 52%
Instead of €2.25
Specifications switching position: 2-3, 5-6: ON OPEN: NONE 2-1, 5-4: ON remark: 2A / 230Vac contact rating: 5A with resistive load of 120Vac or 28Vdc electrical life: 50000 make-and-break c
: 711 Items
Emplacement :
Security policy
Delivery policy
Terms of Sales
Dimension 35x13x11mm . Weight 5gr
Specifications
switching position:
2-3, 5-6: ON
OPEN: NONE
2-1, 5-4: ON
remark: 2A / 230Vac
contact rating: 5A with resistive load of 120Vac or 28Vdc
electrical life: 50000 make-and-break cycles at full load
contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts
insulation resistance: min. 1000Mohm
dielectric strength: 1000Vrms at sea level
operating temperature: -30°C to +85°C
materials:
case: melamine or diallyl phthalate (DAP)
toggle handle: brass, chrome-plated
bushing: brass, nickel-plated
housing: stainless steel
end contact: coin silver, silver-plated
end terminal: brass, silver-plated
centre contact and terminal: brass, silver-plated
Specifications
switching position:
2-3, 5-6: ON
OPEN: NONE
2-1, 5-4: ON
remark: 2A / 230Vac
contact rating: 5A with resistive load of 120Vac or 28Vdc
electrical life: 50000 make-and-break cycles at full load
contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts
insulation resistance: min. 1000Mohm
dielectric strength: 1000Vrms at sea level
operating temperature: -30°C to +85°C
materials:
case: melamine or diallyl phthalate (DAP)
toggle handle: brass, chrome-plated
bushing: brass, nickel-plated
housing: stainless steel
end contact: coin silver, silver-plated
end terminal: brass, silver-plated
centre contact and terminal: brass, silver-plated
