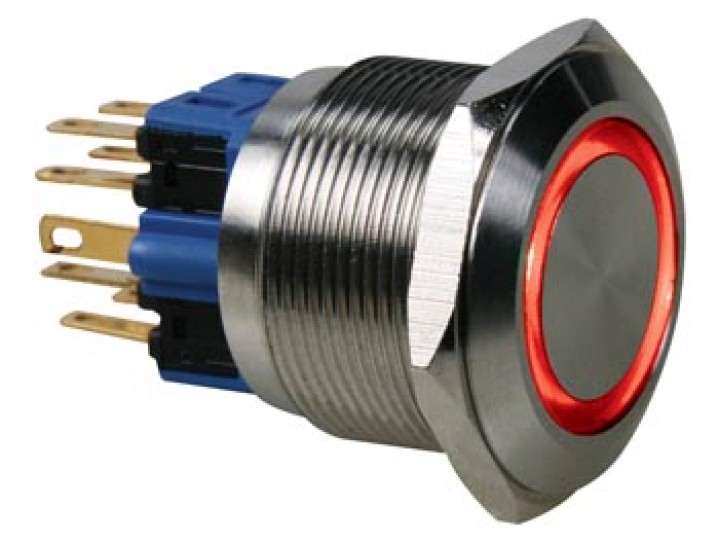

Specifications
* SPDT 1NO 1NC
* colour: red
* connections:
o NC (normal closed): 1-2
o NO (normal open): 3-4
* operating temperature: -20°C ~ +70°C
* operating humidity: 45 ~ 85% RH
* insulation resistance: > 1000M ohms
* contact resistance: < 50M ohms
* mechanical life: 1 000 000 cycles
* electrical life: 50 000 cycles
* dielectric strength:
o between terminals of the same pole: -
o between terminal of different poles: 2000VAC
* body material: stainless steel
* operating pressure: 3~8N
* IP rating: IP65
* max. voltage:
o 230VAC / 5A
* mounting hole: O25mm
* power supply LED ring: 12VDC
R2000R
1 Item
