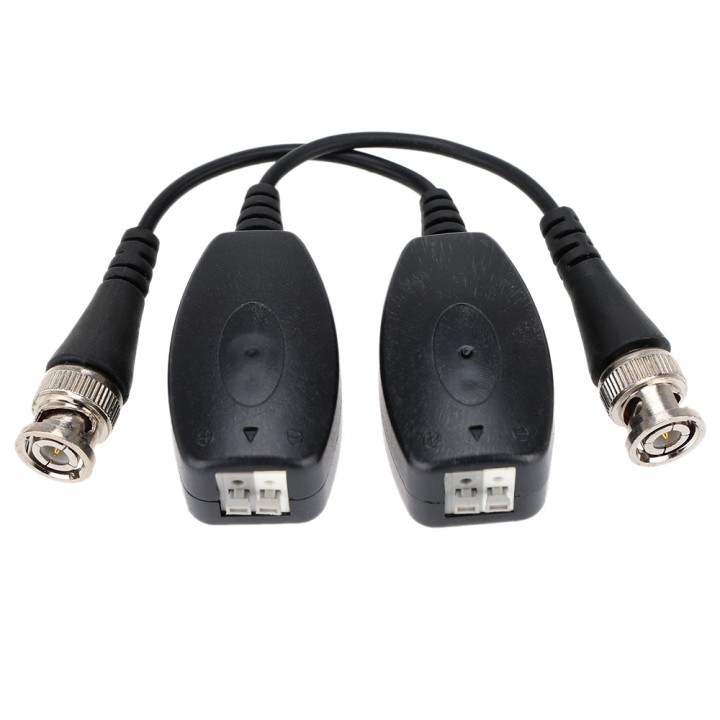

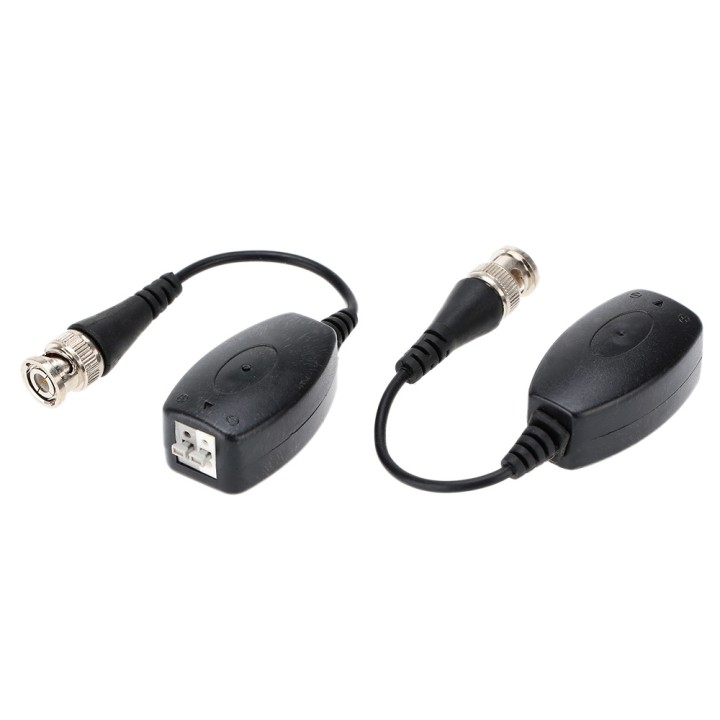

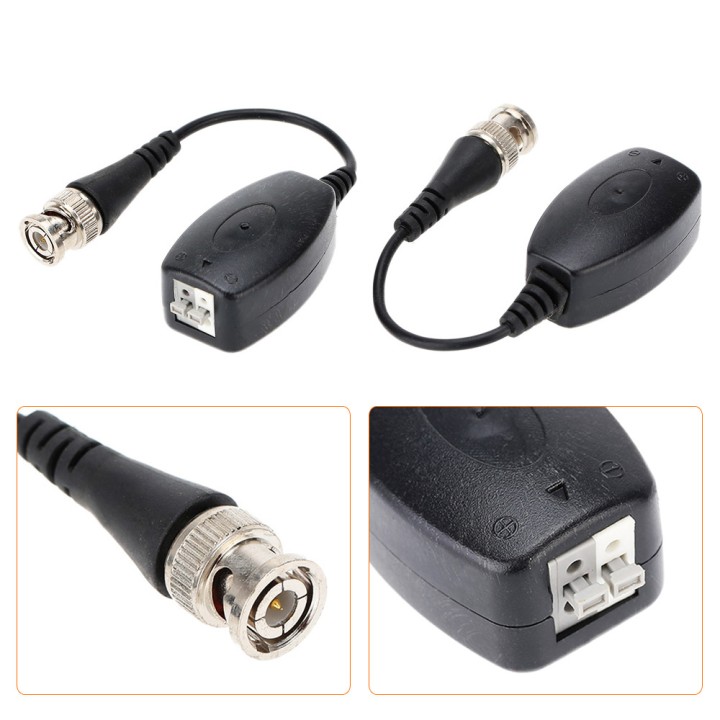

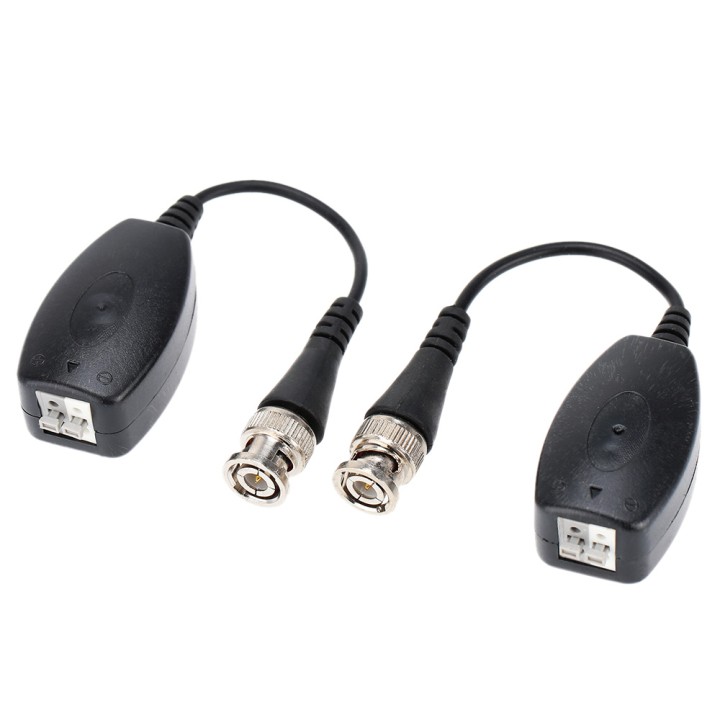

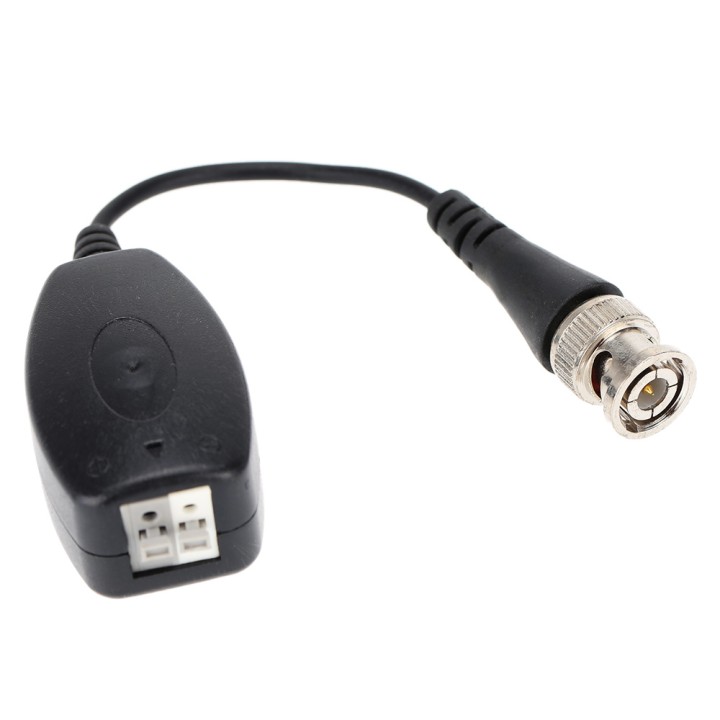

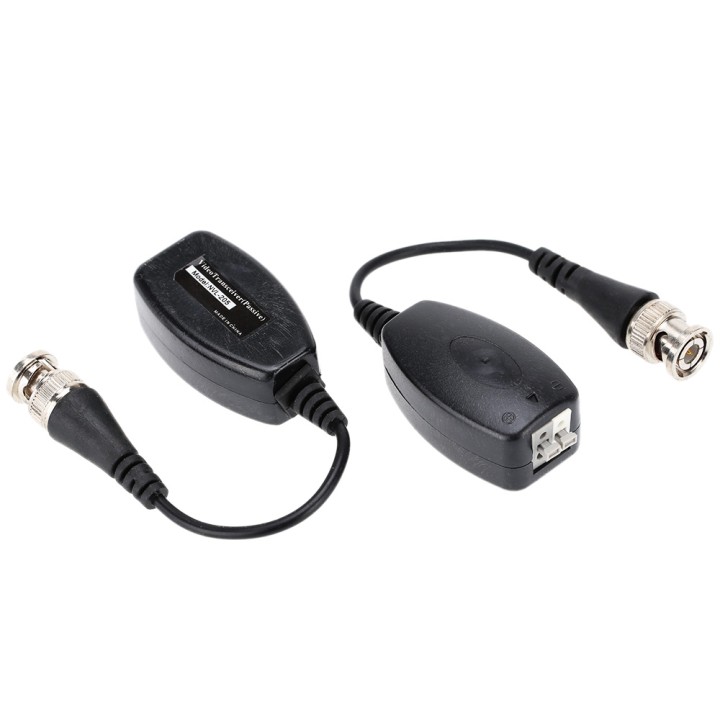

The UTP Video Transceiver is a passive(non-amplified) device that allows the transmission realtime monochrome or color video over unshielded Twisted Pairs(UTP) telephone wire. Baseband(composite) signals of any types are supported.
Features:
* 2pcs/kit
* Simple to use and install
* High quality and durable in performance
* Widely used for connection of DVR, CCTV and other devices
* Baseband(composite) signals of any types are supported.
Specifications:
Attenuation: DC to 5 MHz, 0.5dB typ
Common-mode/Differential-mode Rejection: 50KHz to 5 MHz, 60dB typ
Impedance: Coax, male BNC: 75 ohms. UTP, RJ45 Date Connector: 100 ohms
Network Wiring: One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm)
Category Type: 5 or better
Impedance: 100+20ohms
DC Loop Resistance: 52ohms per 1000ft(18ohms per 100m)
Differential Capacitance: 19pF/ft max(62pF/m max)
Temperature: -20°C to +75°C
Humidity(non-condensing): 0 to 95%
Package Size: 11*11.4*2.3cm/4.33*4.49*0.9in
Package Weight: 51g/1.82oz
